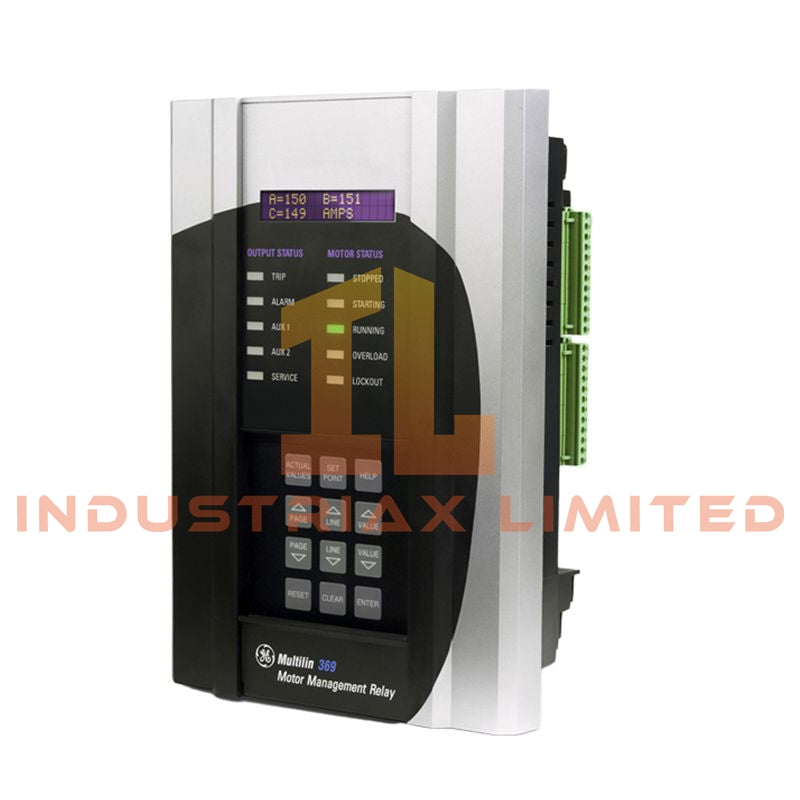

GE Multilin 369-HI-R-M-F-P1-0-E Motor Protection Relay

GE Multilin 369-HI-R-M-F-P1-0-E Motor Protection Relay

Product form

GE Multilin 369-HI-R-M-F-P1-0-E Motor Protection Relay The GE Multilin 369-HI-R-M-F-P1-0-E, also cataloged as the 369 Motor Protection Relay, operates as a dedicated hardware... Read more

SKU: 369-HI-R-M-F-P1-0-E
Country of origin: USA

      100% Original and Authentic

    Do you need a large stock? Contact us.

      100% Brand New,Ready to ship

    Do you need a large stock? Contact us.

      Support Refund,7X24h Service

    Support Refund,7X24h Service , Contact us.

      Call us: +86 153 9592 3051

    Available on working days between 9:00 am to 6:00 pm

      Email us: sales2@industriaxplc.com

    Available 24/7 for inquiries and support

    Description

    GE Multilin 369-HI-R-M-F-P1-0-E Motor Protection Relay

    The GE Multilin 369-HI-R-M-F-P1-0-E, also cataloged as the 369 Motor Protection Relay, operates as a dedicated hardware component for motor protection, measurement, and trip control within GE Multilin motor management relay systems.

    Hardware Specifications

    Parameter Specification
    Model GE Multilin 369-HI-R-M-F-P1-0-E
    Brand GE Multilin
    Weight 10.00 lbs
    Operating Temp -40 deg C to +60 deg C
    Power Consumption 20 W typical, 35 W maximum
    Power Supply 50-300 VDC / 60-265 VAC, 50/60 Hz
    Motor Application Three-phase induction and synchronous motor protection
    Current Inputs 1 A or 5 A secondary phase current inputs
    Ground Current Input 1 A / 5 A secondary or 50:0.025 core balance CT
    Voltage Inputs 50 to 240 VAC direct, up to 600 VAC via VT
    RTD Inputs 12 programmable RTD channels
    Output Relays 4 output relays
    Digital Inputs 5 opto-isolated assignable inputs
    Communication Ports RS232, RS485 Modbus RTU, fiber optic ST port
    Communication Protocol Modbus RTU, optional Profibus-DPV1
    Event Recording Up to 256 events with trip logs and motor history

    GE Multilin Industrial Control Integration Features

    The 369-HI-R-M-F-P1-0-E incorporates GE Multilin motor protection functions for current, voltage, thermal, and mechanical condition monitoring. The relay firmware provides ANSI protection elements including 49 thermal overload, 50/51 overcurrent, 37 undercurrent, 46 negative sequence current, 50N/51N ground fault, 66 start supervision, 48/51R stall protection, and 27/59 voltage protection when the metering option is installed.

    The communication architecture supports deterministic industrial control integration through RS485 Modbus RTU and fiber optic communication using an ST connector. The fiber interface provides electrical isolation from high-noise motor environments. The relay supports firmware flash compatibility for installed feature configurations and maintains recorded operating data including fault reports, trip records, start history, and running hours.

    Frequently Asked Questions

    Q: Does the GE Multilin 369-HI-R-M-F-P1-0-E support hot-swap replacement?
    A: The relay is designed as a panel-mounted motor protection device. Hot-swap operation is not specified. Replacement procedures require verification of control power isolation and field wiring conditions before removal.

    Q: How are RTD inputs configured on this relay model?
    A: The P1 option provides 12 programmable RTD inputs supporting 100 ohm Platinum, 120 ohm Nickel, 100 ohm Nickel, and 10 ohm Copper RTD types for motor temperature monitoring.

    Q: What communication interfaces are available on this configuration?
    A: This configuration includes RS232 local interface, RS485 Modbus RTU communication, and a fiber optic port with ST connector. Profibus-DPV1 is available as an optional interface.

    Field Installation Guidelines

    Install the relay in a protected control enclosure with appropriate clearance for terminal access and communication connections. Verify that current transformer secondary wiring is correctly terminated before energizing the device.

    Use shielded cables for low-level measurement signals including RTD circuits. Connect cable shields according to site grounding practices to minimize electromagnetic interference from motor feeders and switching equipment.

    Separate power wiring, CT circuits, voltage sensing conductors, RTD wiring, and communication cables according to industrial control panel routing requirements. Confirm control voltage compatibility before applying the 50-300 VDC or 60-265 VAC supply input.

    For fiber optic communication, maintain correct ST connector alignment and protect the optical cable from mechanical stress or excessive bending during installation.

    Specifications

    • Brand: General Electric

    Advantages

    • High reliability in industrial environments
    • Supports continuous operation
    • Compatible with major PLC/DCS systems
