Description
Overview
The IS210BPPCH1AD I/O Pack Processor Board is part of GE’s Mark VIe control architecture and functions as the processing core for various I/O pack assemblies. It provides the computational and communication interface required to manage field signals, execute local processing tasks, and communicate with the Mark VIe controller over Ethernet‑based networks.
Functional Characteristics
This processor board is designed specifically for Mark VIe I/O packs and is not interchangeable with Mark VIeS hardware. It supports the control and monitoring requirements of gas, steam, and wind turbine systems, offering a significant performance improvement over earlier Mark V‑series processor modules.

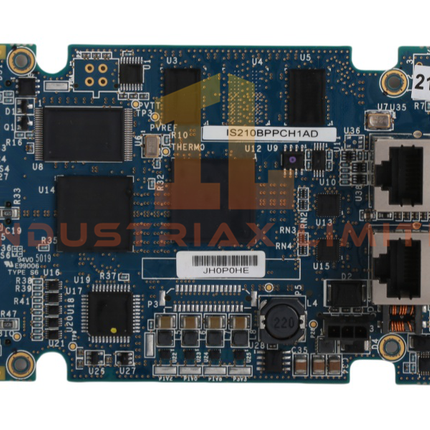

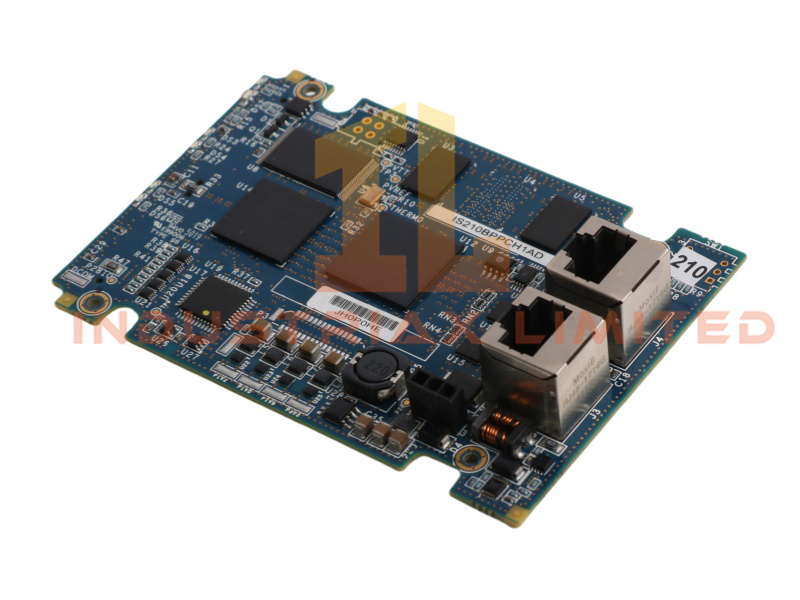

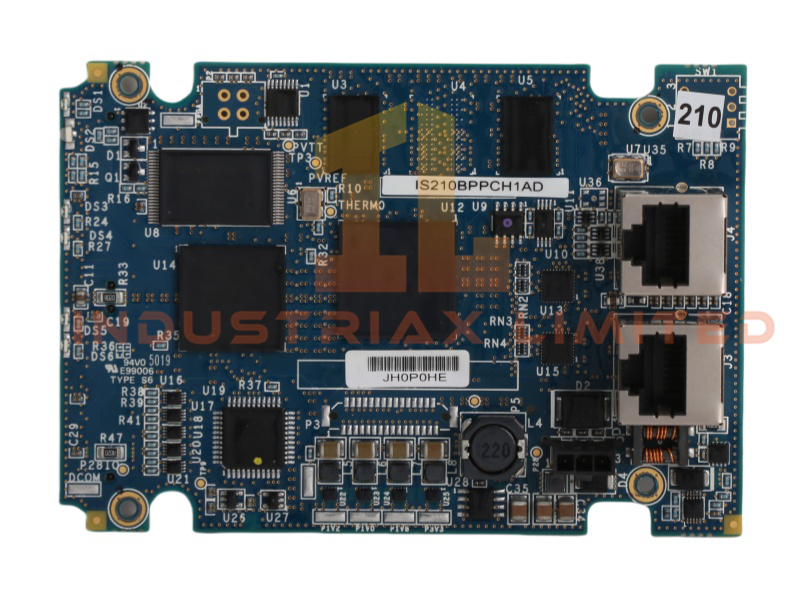

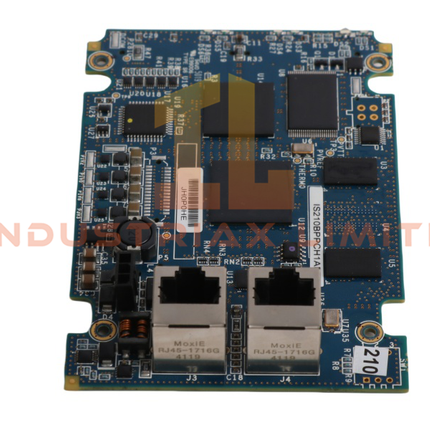

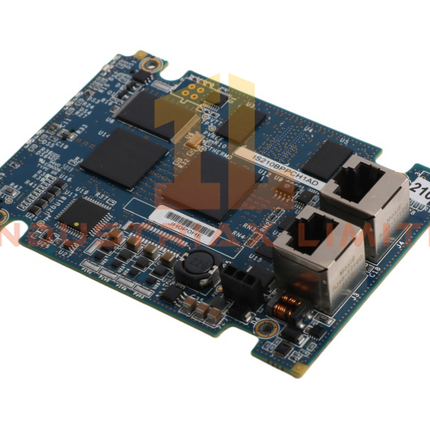

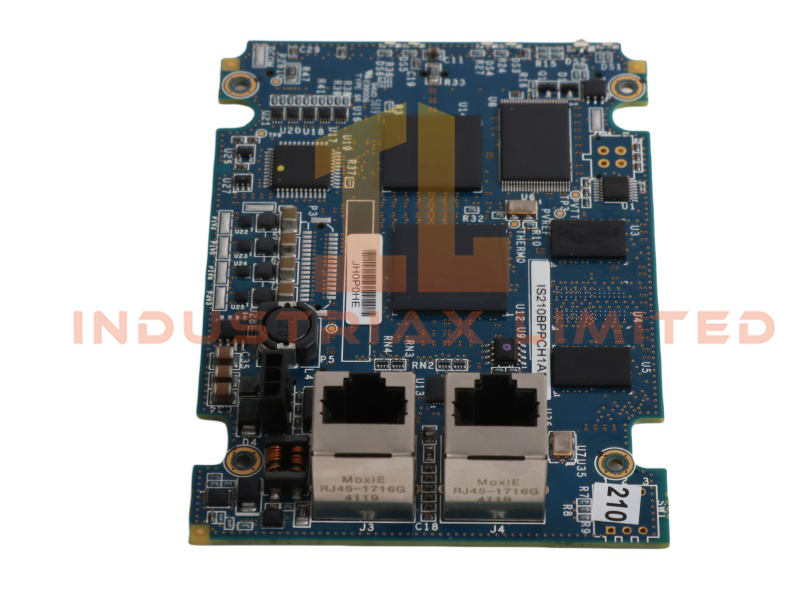

The IS210BPPCH1AD uses a double‑sided PCB layout with surface‑mount components to maximize density and reliability. The top side includes two Ethernet communication ports, integrated circuits, resistor networks, filtering components, and power‑conditioning elements. The underside contains additional capacitors, resistors, and suppression components that support stable voltage regulation and noise mitigation.
Mechanical Design
The board is drilled at all four corners for secure mounting and attaches to a carrier board using standoffs. Cutouts along the long edges provide clearance for mounting hardware and airflow. Its compact footprint and lightweight construction make it suitable for high‑density control panel installations.
System Integration
The processor board forms the intelligence layer of the I/O pack, handling communication, diagnostics, and data exchange with the Mark VIe controller. Its Ethernet ports support redundant or daisy‑chain network configurations, depending on system requirements. The board’s design ensures stable operation in turbine environments where electrical noise, vibration, and temperature fluctuations are common.
Technical Specifications
| Parameter |
Specification |
| Model |
IS210BPPCH1AD |
| Product Type |
I/O Pack Processor Board |
| Brand |
GE |
| Product Range |
Mark VIe |
| Communication Ports |
Dual Ethernet |
| PCB Type |
Double‑sided SMT design |
| Mounting |
Standoff‑mounted to carrier board |
| Functional Role |
Local processing for I/O packs |
| Weight |
0.32 kg |
| Dimensions |
29.2 × 13 × 2.7 cm |
| HS Code |
8537101190 |
| Minimum Order |
1 unit |
| Origin |
USA |
| Availability |
In stock |
| Lifecycle Status |
Active |
Application Scenarios
-
Mark VIe turbine control I/O packs
-
Gas, steam, and wind turbine monitoring and control
-
Distributed processing in DCS environments
-
High‑density control panel installations requiring compact processor modules
FAQ
Q: Is the IS210BPPCH1AD compatible with Mark VIeS systems? A: No. It is designed exclusively for Mark VIe I/O packs.
Q: What communication interfaces are available? A: The board includes two Ethernet ports for controller communication and network redundancy.
Q: What type of PCB construction is used? A: A double‑sided SMT layout with high‑density component placement.
