Description
Overview

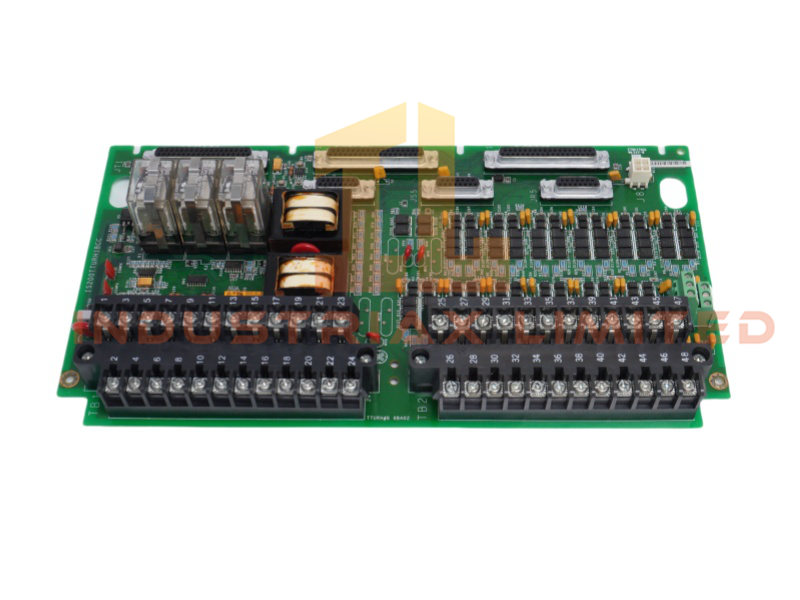

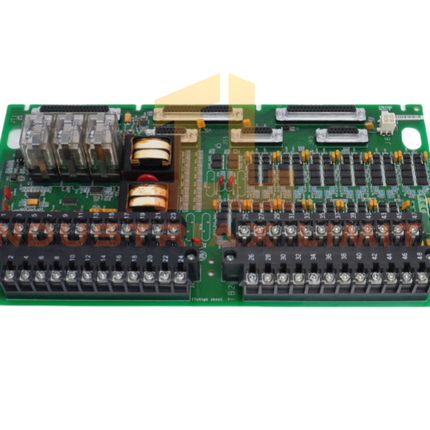

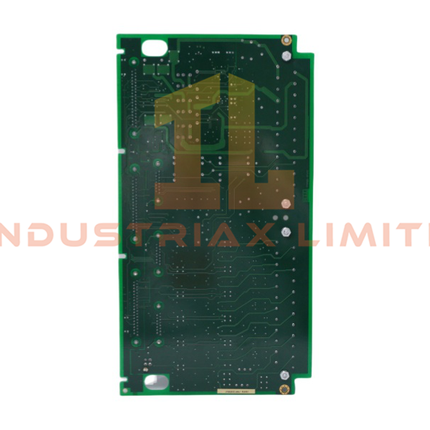

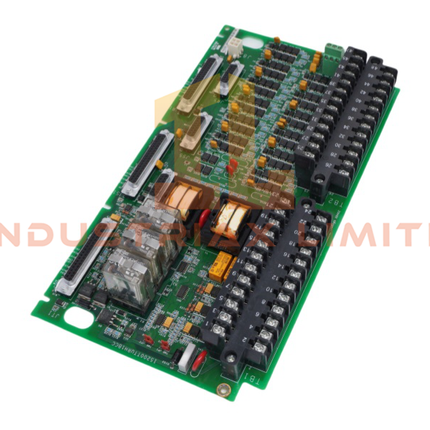

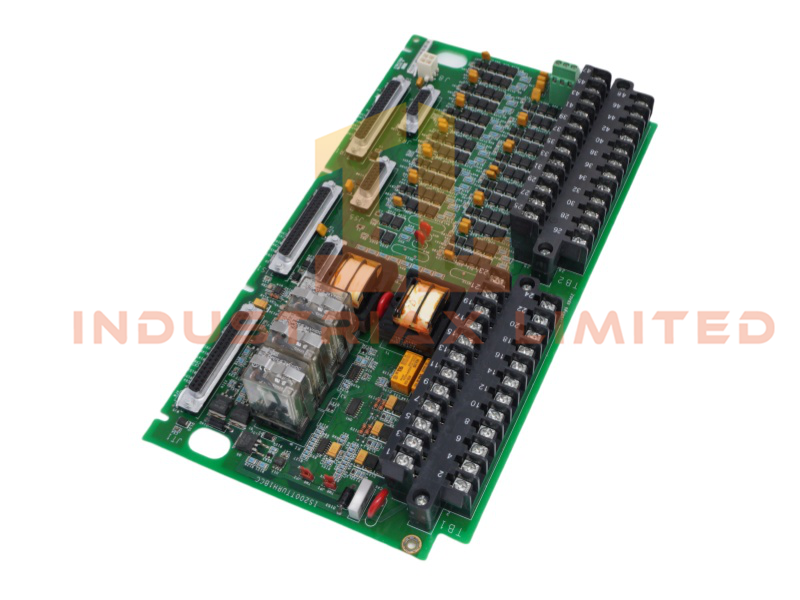

The IS200TTSAG1A Turbine Emergency Trip Board is a GE Mark VIe temperature‑processing module engineered to acquire and condition thermal signals from critical turbine components. Designed for high‑integrity protection systems, it provides precise measurement, fault detection, and reliable interface capabilities for both gas and steam turbine applications.
Functional Characteristics
This module supports eight analog input channels, each configurable for multiple thermocouple types (J, K, T, E) or 3‑wire RTDs. With measurement accuracy typically within ±0.1°C, the IS200TTSAG1A ensures dependable temperature monitoring for safety‑related turbine functions.
Key features include:
-
Channel‑to‑channel electrical isolation
-
Built‑in diagnostics for sensor health monitoring
-
LED indicators for individual channel status
-
Automatic cold‑junction compensation for thermocouples
-
Lead‑resistance compensation for RTDs
-
Open‑circuit detection for fault identification
The board is compatible with TMR (Triple Modular Redundant) architectures, making it suitable for high‑availability protection systems.
Environmental and Mechanical Performance
The module is designed for harsh industrial environments and includes EMI‑hardened circuitry and a conformal‑coated PCB for long‑term durability.
| Parameter |
Specification |
| Model |
IS200TTSAG1A |
| Product Type |
Turbine Emergency Trip Board |
| Brand |
GE |
| Series |
Mark VIe |
| Dimensions |
33 × 17.8 × 5.5 cm |
| Weight |
1.42 kg |
| Origin |
USA |
| HS Code |
8537101190 |
| Condition |
New |
| Availability |
In Stock |
| Channels |
8 analog inputs |
| Supported Sensors |
Thermocouples (J/K/T/E), 3‑wire RTDs |
| Accuracy |
±0.1°C typical |
| Operating Temperature |
−40°C to +70°C |
| Humidity |
5–95% non‑condensing |
| Mounting |
DIN‑rail |
| System Compatibility |
DCS / Mark VIe |
| Minimum Order |
1 unit |
Integration and System Role
The IS200TTSAG1A is used for:
-
Turbine trip logic temperature inputs
-
Bearing and exhaust temperature monitoring
-
Safety‑critical thermal protection
-
TMR‑based protection architectures
-
High‑speed thermal signal conditioning
Front‑accessible terminals and hot‑swap capability reduce maintenance time and simplify field replacement.
Application Scenarios
-
Gas turbine protection systems
-
Steam turbine thermal monitoring
-
Power plant safety instrumentation
-
High‑temperature industrial process control
-
Retrofit and modernization of Mark VIe systems
FAQ
Q: What types of sensors can the module read? A: It supports thermocouples (J/K/T/E) and 3‑wire RTDs.
Q: Is the module suitable for TMR systems? A: Yes. It is designed for use in triple‑redundant protection architectures.
Q: Does the board include built‑in diagnostics? A: Yes. It provides open‑circuit detection, sensor health monitoring, and LED status indicators.
