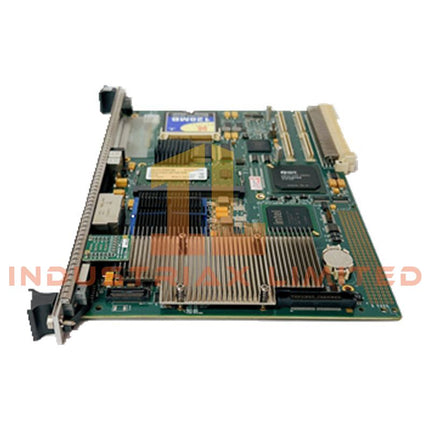

GE IS430SSUAH1A Universal Analog I/O Module

The GE IS430SSUAH1A, also cataloged as the IS430SSUAH1A Universal Analog I/O Module, operates as a dedicated hardware component for configurable signal acquisition and output execution within GE Mark VIeS Functional Safety Control Systems. The module provides 16 configurable I/O channels supporting analog, digital, thermocouple, RTD, current, voltage, and pulse signal processing.

Hardware Specifications

Parameter	Specification
Model	IS430SSUAH1A
Brand	GE
Origin	United States
Weight	2 lbs
Operating Temp	-40 to +70 deg C
Power Consumption	Not specified
Product Type	Universal Analog I/O Module
System Platform	GE Mark VIeS Functional Safety Control System
Channel Count	16 configurable channels
Supported Inputs	TC, RTD, +/-5 V, +/-10 V, 4-20 mA, digital input, pulse accumulator
Supported Outputs	0-20 mA output, digital output, interposing relay interface
ADC Resolution	16-bit
Excitation Power	28 VDC nominal
HART Support	Optional for mA input/output modes
Digital Input Modes	NAMUR, externally wetted, internally wetted
AC Common Mode Rejection	60 dB at 60 Hz
DC Common Mode Rejection	80 dB
Isolation	Channel-to-ground isolation
Field Wiring Range	24-12 AWG
Mounting Type	DIN rail
Configuration	Simplex

Profinet / EtherNet-IP Deterministic Networks and I/O Density Scaling

The IS430SSUAH1A is designed for configurable I/O density scaling within the Mark VIeS control architecture. Each channel can be assigned independently through ToolboxST configuration software, allowing different signal types to coexist on a single I/O module. The module processes analog conversion, pulse counting, and digital signal handling through a unified hardware interface.

Firmware flash compatibility and configuration management are handled through the Mark VIeS engineering environment. Diagnostic functions include power-up self-test execution and LED-based module status indication for commissioning and maintenance activities.

Frequently Asked Questions

Q: Can the IS430SSUAH1A operate with redundant I/O configurations?
A: The IS430SSUAH1A is configured as a simplex I/O module and does not provide redundant channel architecture.

Q: What field wiring range is supported by this module?
A: The module supports field wiring from 24 AWG minimum to 12 AWG maximum.

Q: Which signal types can be configured on the module channels?
A: Channels support thermocouple, RTD, voltage, current, digital I/O, and pulse accumulator signal types through software configuration.

Field Installation Guidelines

Install the module on a properly grounded DIN rail assembly. Verify cabinet power isolation before wiring or module replacement. Use ESD protection procedures when handling the I/O assembly.

Connect field wiring according to the configured channel type before commissioning. Route analog and digital signal cables separately from high-current switching conductors. Apply appropriate cable shielding and grounding practices for turbine control environments with electrical noise exposure.

Configure each channel assignment through ToolboxST software before system operation. Verify LED status indicators and perform signal validation after installation.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
