Description
Overview

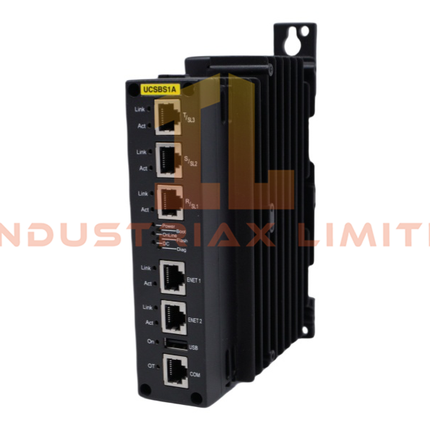

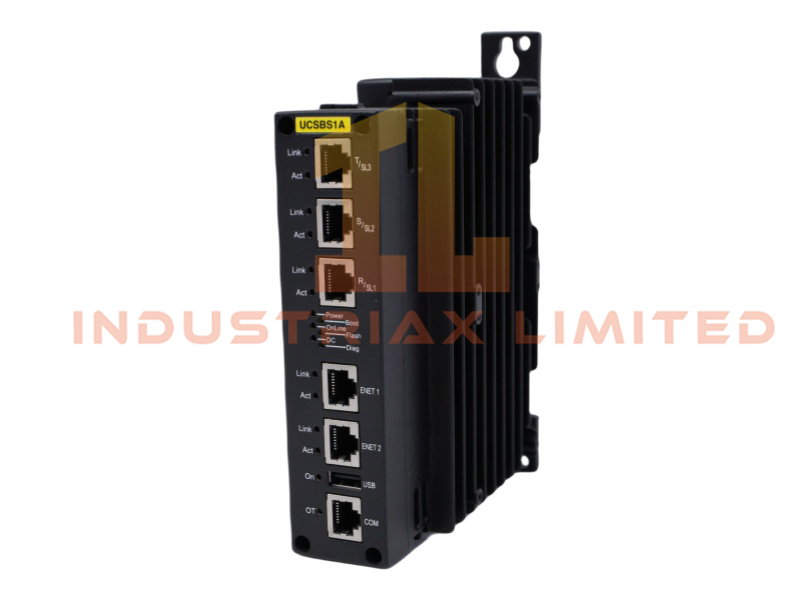

The IS421UCSBS1A safety controller module is part of GE’s Mark VIeS safety platform and is engineered to execute high‑integrity protection logic within distributed control architectures. Designed for SIL3‑rated applications, the module provides continuous monitoring of safety‑critical functions and ensures rapid transition to safe states during abnormal or hazardous operating conditions.
Technical Specifications
The module integrates diagnostic processing, communication interfaces, and onboard storage within a compact, fanless enclosure. Its architecture supports deterministic execution of safety logic and reliable communication with supervisory systems.
| Parameter |
Specification |
| Model |
IS421UCSBS1A |
| Product Type |
Safety Controller Module |
| Product Series |
GE Mark VIeS |
| Safety Rating |
SIL3 (per IEC 61508) |
| Communication Ports |
RS‑232 / RS‑232C |
| Storage |
CompactFlash access |
| Cooling |
Fanless design |
| Power |
Integrated power supply |
| Dimensions |
20 × 11.5 × 5.7 cm |
| Weight |
0.9 kg |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
New |
Functional Characteristics
The module performs continuous self‑diagnostics, fault detection, and safety interlocking to maintain system integrity. It manages safe‑state transitions during controller, network, or field device failures. Its modular design allows installation in compact control panels while maintaining compliance with stringent safety standards.
The controller communicates with PLCs, SCADA systems, and other Mark VIeS components through standard serial interfaces. Its internal architecture supports deterministic execution of safety logic, ensuring predictable response times in emergency scenarios.
Application Scenarios
The IS421UCSBS1A is commonly used in:
-
Power generation safety systems
-
Emergency shutdown (ESD) architectures
-
Turbine overspeed and trip protection
-
Industrial process safety loops requiring SIL3 compliance
-
Distributed control systems with dedicated safety layers
FAQ
Q: What safety level does the IS421UCSBS1A support? A: It is designed for SIL3 applications in accordance with IEC 61508.
Q: Does the module require external cooling? A: No, it uses a fanless thermal design suitable for enclosed panel installations.
Q: Can it integrate with SCADA or PLC systems? A: Yes, RS‑232/RS‑232C ports support communication with supervisory systems.
Q: What happens during a detected fault? A: The controller transitions the system to a predefined safe state based on configured logic.
