Description
Overview

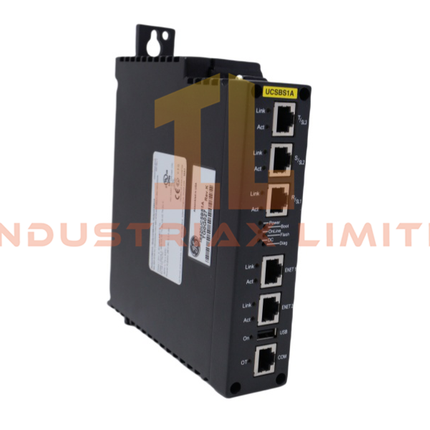

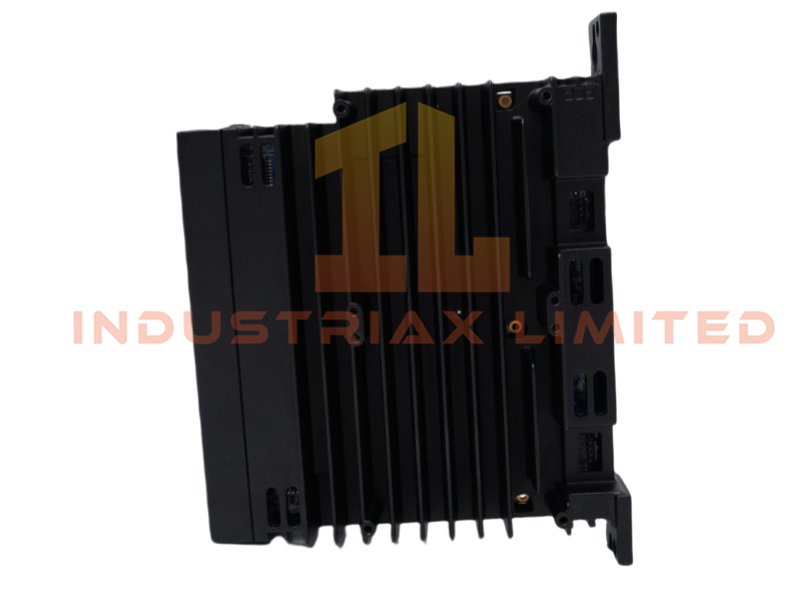

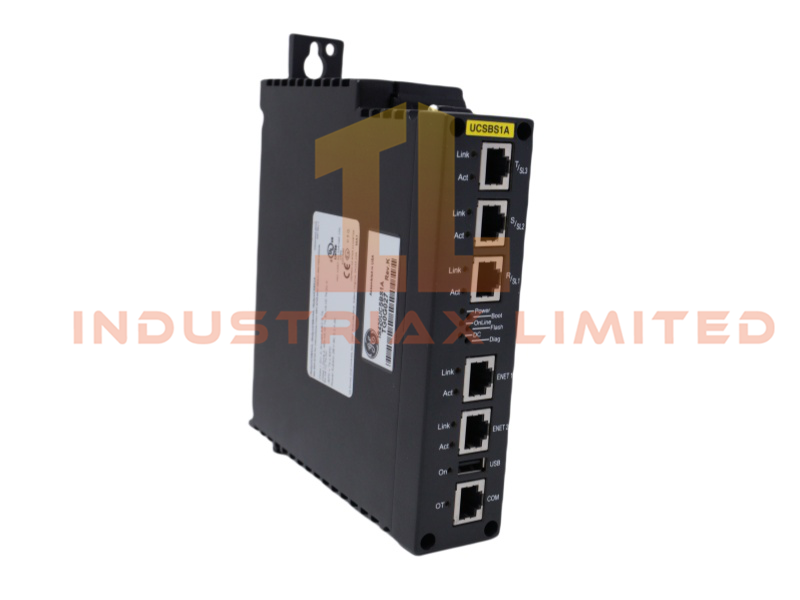

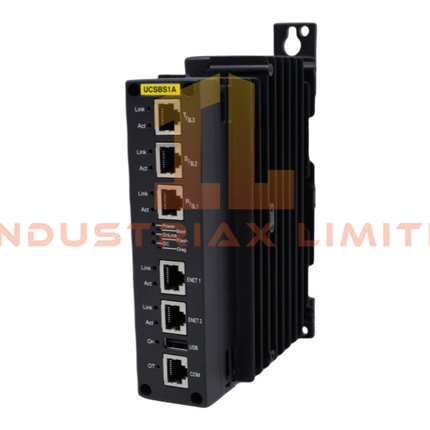

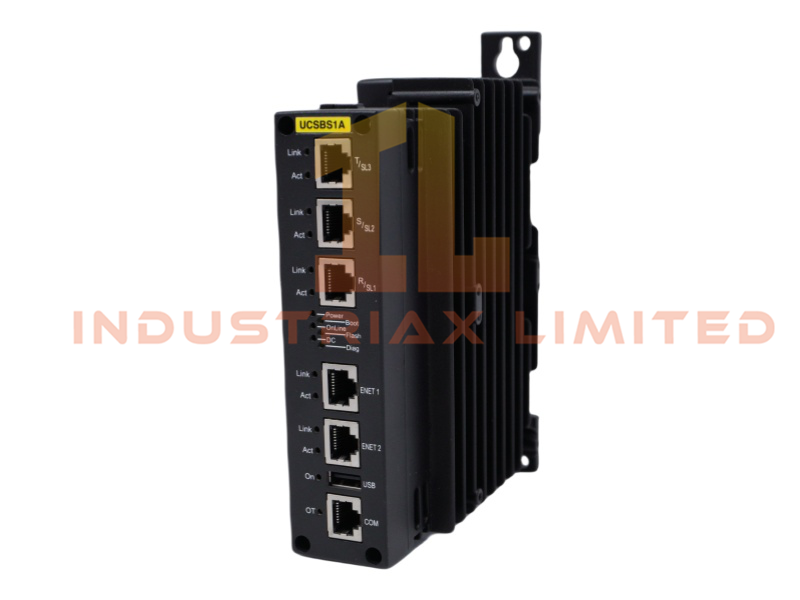

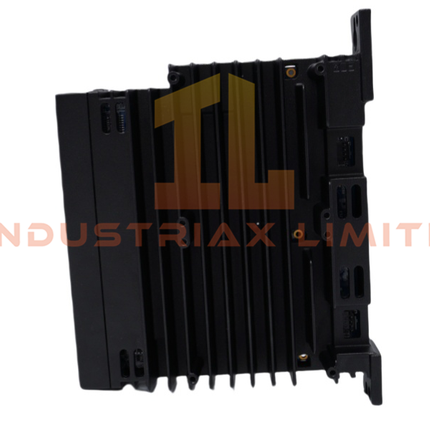

The IS421UCSBH1A controller module is part of GE’s Mark VIe control platform and serves as a compact, panel‑mounted processing unit for distributed control applications. Designed to operate independently of traditional backplane I/O, the module executes real‑time control logic using dedicated Ethernet‑based IONet communication channels. Its architecture supports high‑availability operation in demanding industrial environments such as power generation and oil and gas facilities.
Technical Specifications
The module integrates a 600 MHz Intel processor, onboard power conversion, and a conformal‑coated PCB to ensure long‑term reliability under harsh operating conditions.
| Parameter |
Specification |
| Model |
IS421UCSBH1A |
| Product Type |
UCSB Controller Module |
| Product Series |
GE Mark VIe |
| Processor |
Intel 600 MHz embedded processor |
| Communication |
Dual IONet Ethernet interfaces |
| Cooling |
Fanless design |
| Battery Requirement |
None (battery‑free architecture) |
| Configuration |
No jumpers; flash‑based firmware updates |
| PCB Protection |
Conformal coating |
| Dimensions |
20 × 11.5 × 5.7 cm |
| Weight |
0.9 kg |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
New |
Functional Characteristics
The controller is engineered for deterministic communication with Mark VIe I/O packs through redundant IONet channels, ensuring uninterrupted data flow even during maintenance or network reconfiguration. Its integrated power supply eliminates the need for external conversion hardware, while the absence of fans and batteries reduces maintenance requirements and improves long‑term reliability.
The module’s compact footprint allows installation in space‑restricted control panels without sacrificing performance. Flash‑based firmware storage supports field updates, and the A‑revision hardware meets GE’s quality and environmental standards.
Application Scenarios
The IS421UCSBH1A is commonly deployed in:
-
Gas and steam turbine control systems
-
Distributed control architectures requiring standalone processing
-
High‑availability industrial automation systems
-
Power generation and oil & gas applications
-
Installations requiring deterministic Ethernet‑based I/O communication
FAQ
Q: Does the IS421UCSBH1A require a backplane to operate A: No, it functions as a standalone controller and communicates with I/O exclusively through IONet.
Q: What cooling method does the module use A: It uses a fanless thermal design suitable for enclosed control cabinets.
Q: Are jumpers or batteries required A: No, the module is fully jumper‑free and does not use batteries.
Q: Can firmware be updated in the field A: Yes, firmware is stored in flash memory and can be updated during maintenance.
