Description
Overview

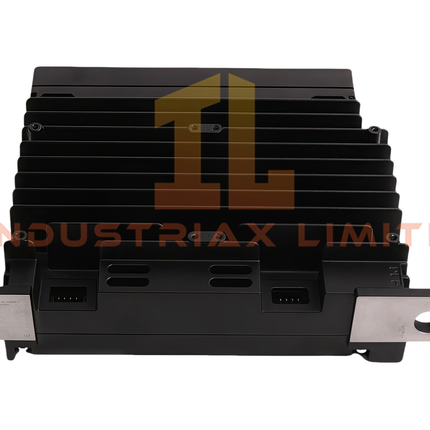

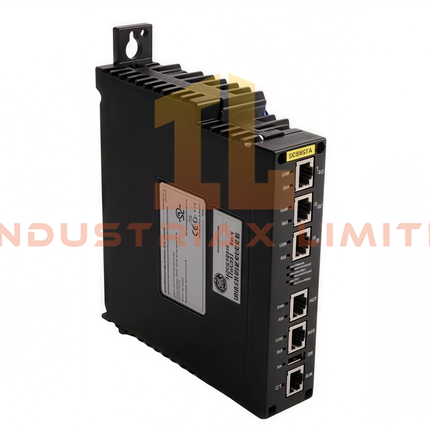

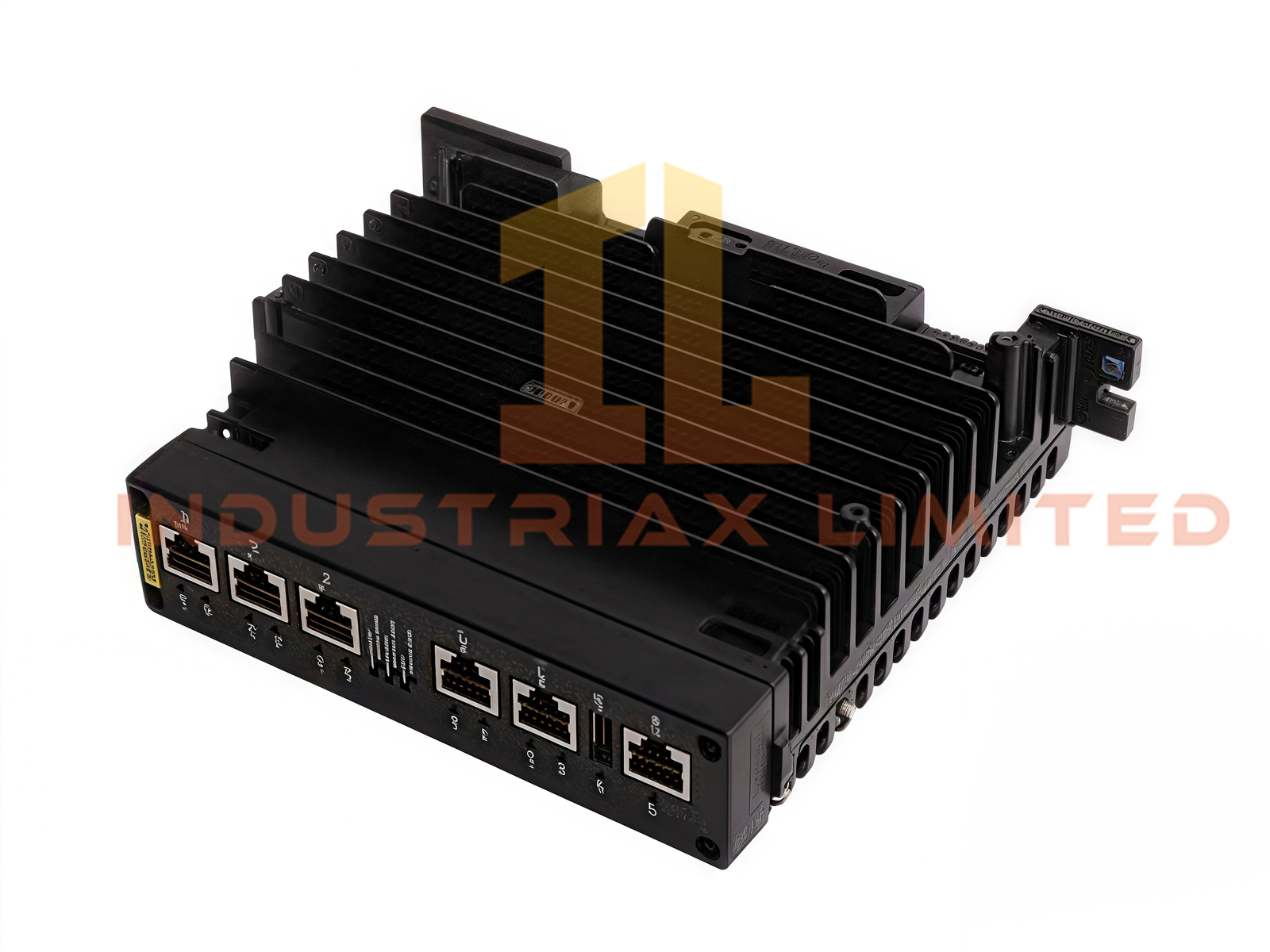

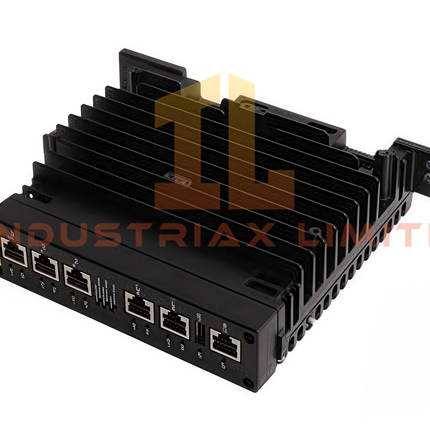

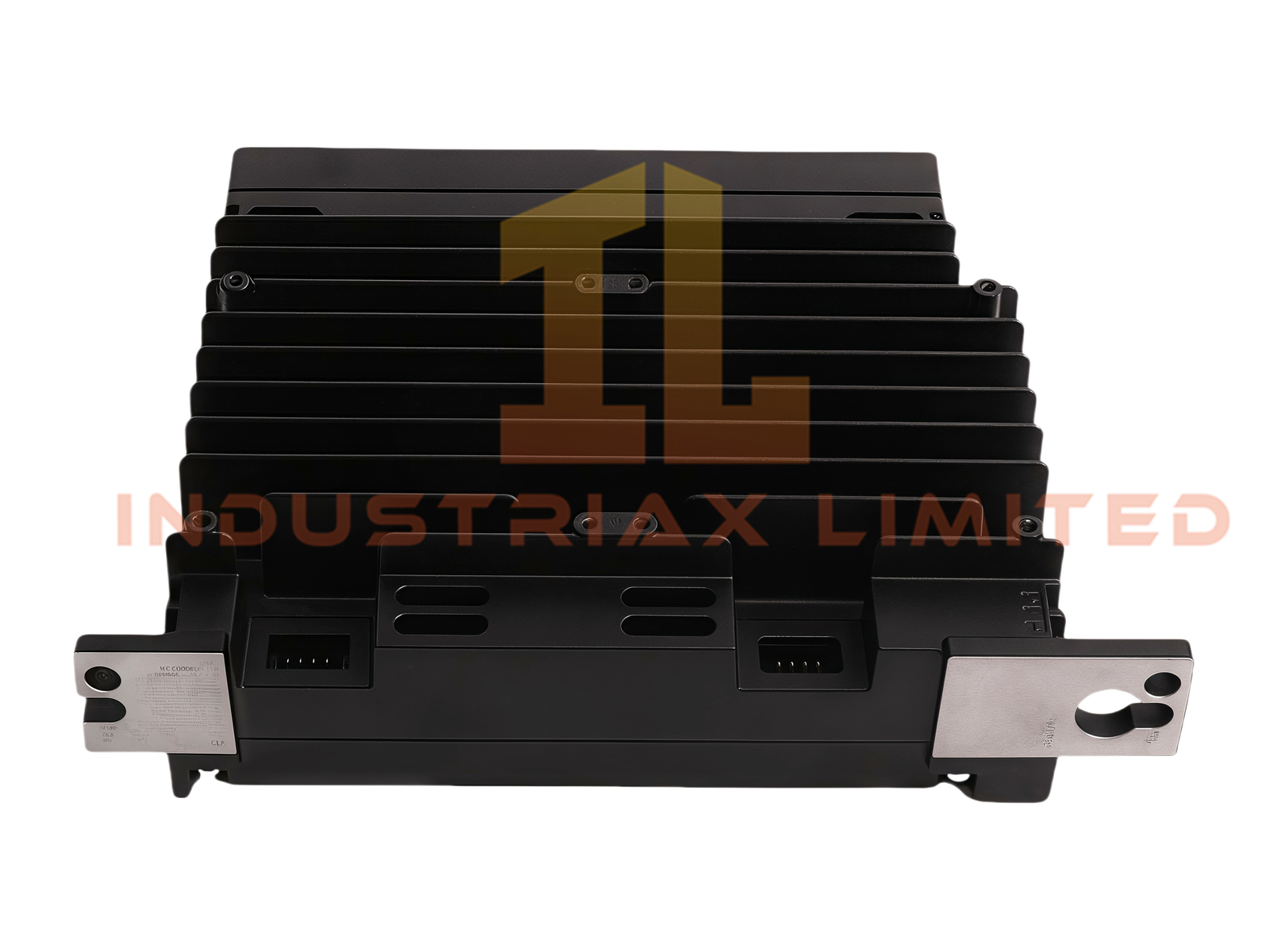

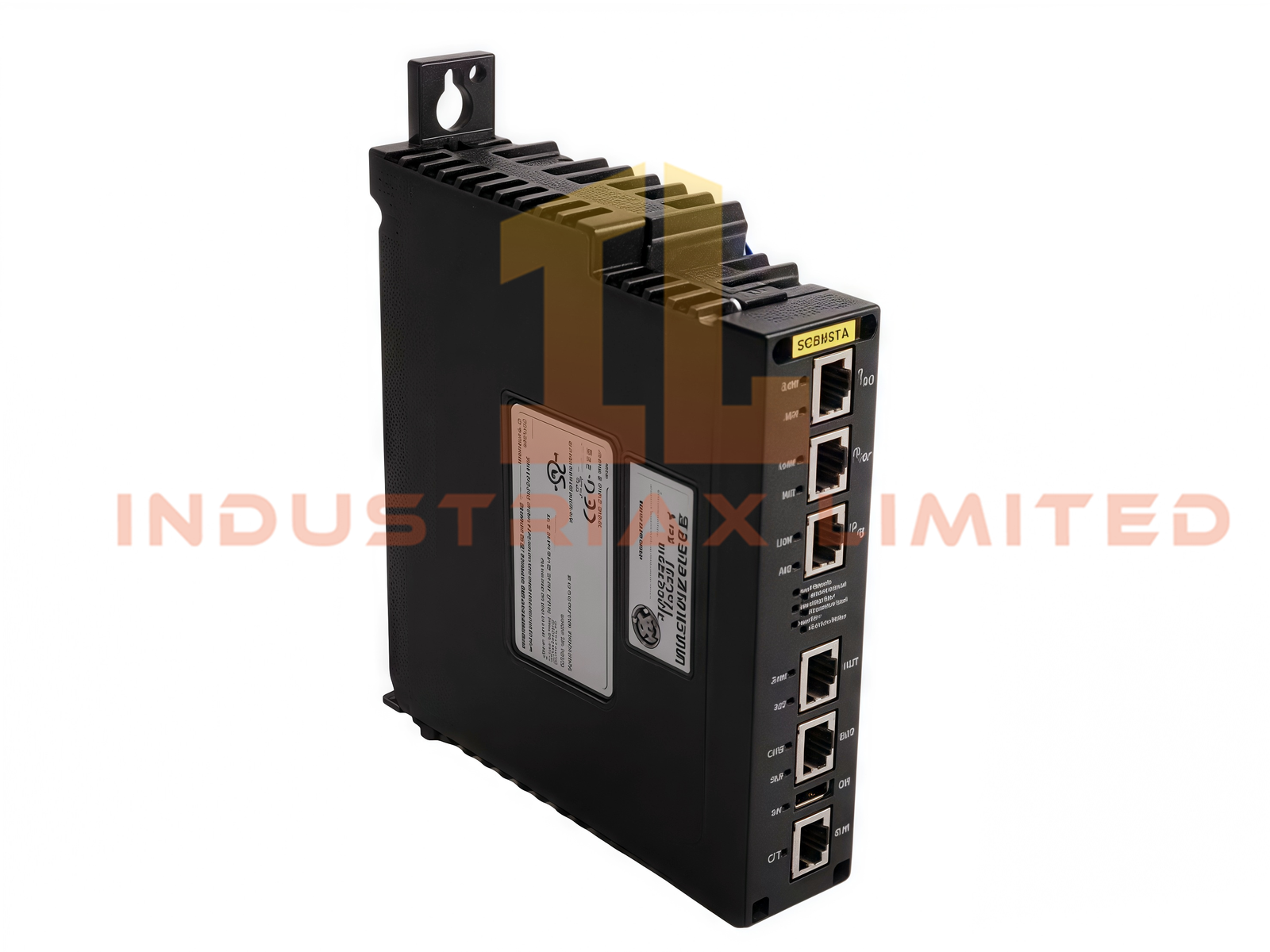

The IS420UCSDH1 controller module is part of GE’s Mark VIe control architecture and provides a self‑contained processing platform for turbine, drive, and industrial automation systems. Designed to operate independently of backplane‑mounted I/O, the module communicates exclusively through Ethernet‑based IONet networks, ensuring deterministic data exchange and high system availability.
Technical Specifications
The controller integrates real‑time processing, precision time synchronization, and robust communication interfaces within a compact, fanless enclosure. Its architecture supports both simplex and redundant configurations, making it suitable for mission‑critical applications.
| Parameter |
Specification |
| Model |
IS420UCSDH1 |
| Product Type |
Mark VIe Controller Module |
| Product Series |
GE Mark VIe / UCSB |
| Synchronization |
IEEE 1588 (<100 μs accuracy) |
| Communication |
R/S/T IONet Ethernet |
| Operating Modes |
Simplex, Dual, TMR |
| Power |
Integrated power supply; no jumpers or batteries |
| Cooling |
Fanless thermal design |
| Memory |
Flash‑based storage for firmware and application updates |
| Dimensions |
20 × 11.5 × 5.7 cm |
| Weight |
0.9 kg |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
New |
Functional Characteristics
The module executes application logic independently and supports online modification, allowing parameter and logic updates without requiring a system restart. All field data is acquired through I/O packs connected via IONet, ensuring electrical isolation and eliminating single points of failure.
In redundant architectures, the controller exchanges state information and synchronization data with peer controllers, maintaining coherent operation across the system. Its compact design integrates the power supply and eliminates components such as fans, batteries, and jumpers, reducing maintenance requirements.
The controller is compatible with EX2100e, LS2100e, and legacy Mark VI systems, enabling flexible deployment across a wide range of GE control platforms.
Application Scenarios
The IS420UCSDH1 is commonly used in:
-
Gas and steam turbine control
-
Combined‑cycle plant coordination
-
Drive and excitation systems (EX2100e, LS2100e)
-
Distributed control systems requiring deterministic Ethernet communication
-
Safety‑related Mark VIeS architectures
FAQ
Q: Does the IS420UCSDH1 support online logic modification? A: Yes, application logic can be updated without restarting the controller.
Q: How does the controller synchronize with I/O packs? A: It uses IEEE 1588 time synchronization with sub‑100 μs accuracy.
Q: Is the module suitable for redundant configurations? A: It supports simplex, dual, and TMR architectures.
Q: Does the controller require cooling fans or batteries? A: No, it uses a fanless design and contains no batteries or jumpers.
