Description
Product Overview

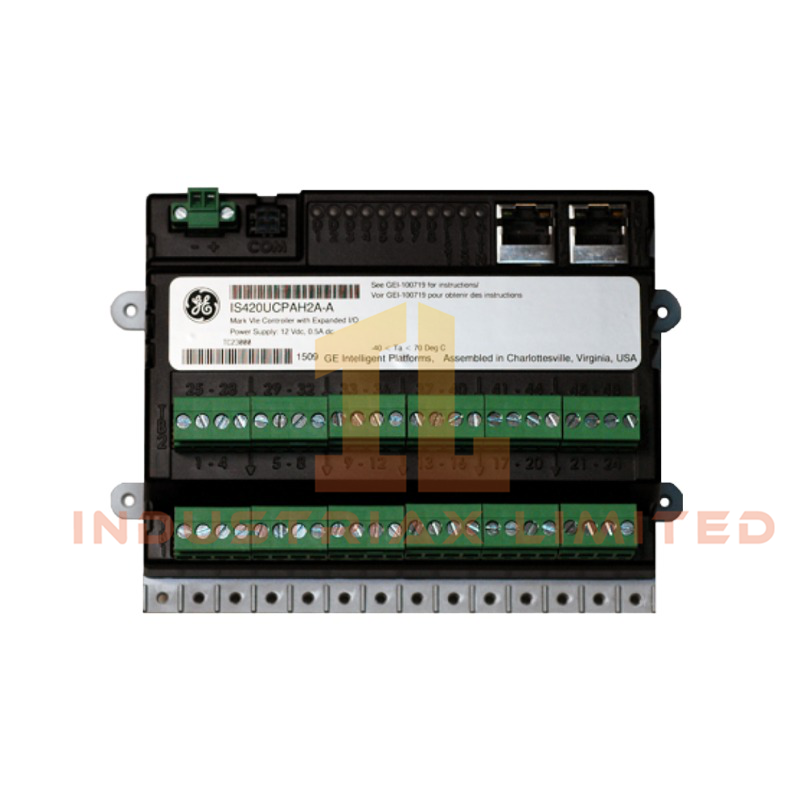

The IS420UCPAH2A UCPA Controller from GE combines control logic and I/O in a single compact module. It supports simplex IONet communication and integrates seamlessly with Mark VIe systems. This panel-mounted controller operates efficiently with a 12 Vdc power supply consuming only 4 W, making it ideal for low-power industrial environments.
The controller includes the IS400WEXPH1A expansion board, adding six analog inputs, two analog outputs, and four digital I/Os, bringing the total to eight AIs and eight DIOs. It functions reliably across a wide temperature range from -40°C to 70°C, without requiring a fan or battery.
Technical Specifications
| Specification |
Detail |
| Manufacturer |
GE |
| Part Number |
IS420UCPAH2A |
| System Compatibility |
Mark VIe |
| Voltage |
24 Vdc |
| Current |
0–20 mA |
| Dimensions (mm) |
162 × 115 × 72 |
| Weight |
0.9 kg |
| Power Consumption |
4 W |
| Operating Temp |
-40°C to 70°C |
| I/O Configuration |
Integrated + Expansion |
| Analog Inputs |
8 total (6 via IS400WEXPH1A) |
| Analog Outputs |
2 total |
| Digital I/Os |
8 total (4 via IS400WEXPH1A) |
| Cooling |
Fanless |
| Battery |
None |
| Software Support |
ControlST V05.04 or later |
Application & Compatibility
The IS420UCPAH2A controller is designed for simplex control in industrial automation and turbine systems. It supports ToolboxST configuration tools and integrates with Mark VIe platforms. Its compact footprint and integrated I/O make it ideal for space-constrained panels.
Use this controller in applications requiring low power, wide temperature tolerance, and cost-effective control. The IONet port allows expansion with external I/O packs, enhancing flexibility without compromising reliability.
