Description
Product Overview

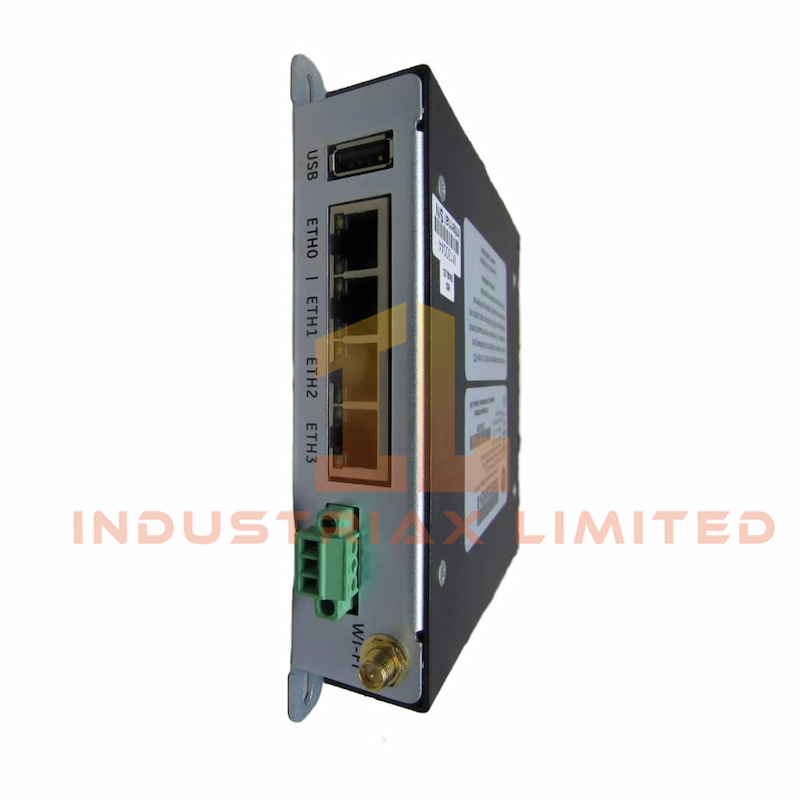

The IS420CCGAH2A-C Communication Gateway Module from GE’s Lufkin Well Manager 2.0 Series functions as a Remote Terminal Unit (RTU) for Modbus device integration. It relays SCADA and keypad commands to the controller via a dedicated Ethernet port (ENET0) and displays real-time controller data on the HMI screen.
This compact module mounts inside the controller enclosure and offers multiple connectivity options, including serial ports, USB, and built-in Wi-Fi. It supports seamless communication between field devices and the control system.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Series |
Lufkin Well Manager 2.0 |
| Model Number |
IS420CCGAH2A-C |
| Voltage Input |
24 Vdc |
| Current Draw |
0.5 A |
| Dimensions |
12 cm × 12 cm × 3 cm |
| Weight |
0.2 kg |
| Ethernet Ports |
4 |
| Serial Ports |
1 × RS232, 1 × RS485 |
| USB Port |
1 |
| MicroSD Slot |
1 |
| Wi-Fi Router |
Integrated |
| Controller Interface |
ENET0 Ethernet port |
| Mounting Location |
Inside controller enclosure door |
Features & Performance
The IS420CCGAH2A-C module supports Modbus communication and acts as a bridge between SCADA systems and the controller. It includes a built-in Wi-Fi router for wireless access and a MicroSD slot for data storage or firmware updates.
Its compact footprint and low power consumption make it ideal for remote installations. The module ensures reliable command relay and real-time data visualization on HMI interfaces.
