Description

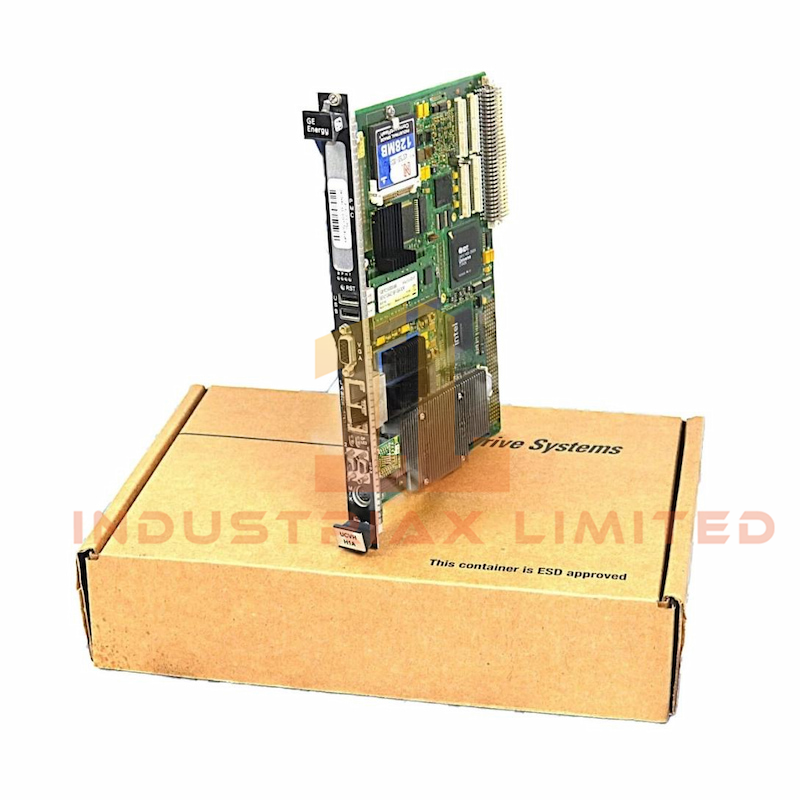

The GE IS415UCVHH1A VME Controller Board is a compact, single-slot processing unit designed for Mark VIe gas turbine control systems. Powered by an Intel® Ultra Low Voltage Celeron 1067 MHz processor, it features 128 MB flash memory and 1 GB SDRAM, delivering reliable performance for configuration, data exchange, and real-time control. Dual Ethernet ports support both UDH communication and Modbus or EGD networking, enabling flexible integration across control architectures.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE |
| Series |
Mark VIe gas turbine control system |
| Part Number |
IS415UCVHH1A |
| Description |
VME Controller Board |
| Processor |
Intel® Celeron ULV 1067 MHz |
| Memory |
128 MB Flash, 1 GB SDRAM |
| Input Voltage |
24 Vdc |
| Current |
1 A |
| Dimensions |
300 mm × 300 mm × 50 mm |
| Weight |
1 kg |
| Ethernet Ports |
2 × RJ-45 (10BaseT/100BaseTX) |
| Network Support |
UDH, Modbus, Ethernet Global Data (EGD) |
| Configuration |
Toolbox-based, validated at power-up |
Key Features
-
Single-slot VME board with integrated processor and memory
-
Dual Ethernet ports for UDH and subnet communication
-
Supports Modbus and private EGD networks for flexible data exchange
-
Toolbox configuration validated against hardware at startup
-
Compact 300 × 300 × 50 mm design for efficient rack integration
-
Ideal for real-time control and peer-to-peer communication in turbine systems
