Product Overview

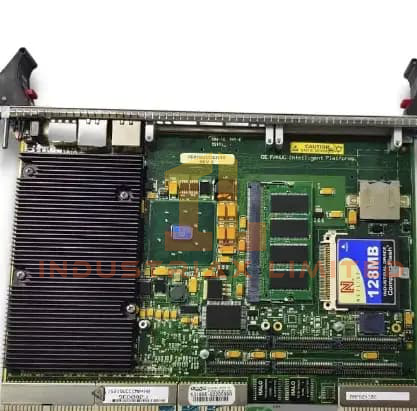

The IS415UCCCH4A Single Slot Controller Board from GE’s Mark VIe series delivers high-speed control and synchronization for distributed systems. This 6U CompactPCI (CPCI) board runs application code using the QNX Neutrino real-time operating system and connects to I/O packs via dedicated Ethernet networks.
It mounts in a four-slot CPCI rack and supports simplex, dual, or triple modular redundant (TMR) configurations. The board includes five communication ports for HMI, engineering, and I/O interfaces, including Ethernet and RS-232C. CMOS battery management and jumper settings help extend battery life during storage.
The IS415UCCCH4A synchronizes controller clocks to within 100 microseconds using IEEE 1588 across R, S, and T IONets. It supports real-time data exchange and system diagnostics through ToolboxST or NTP server integration.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Model Number |
IS415UCCCH4A |
| Product Series |
Mark VIe |
| Origin |
United States |
| HS Code |
85389091 |
| Dimensions |
16 cm × 16 cm × 12 cm |
| Weight |
0.8 kg |
| Form Factor |
6U CPCI |
| Operating System |
QNX Neutrino |
| Communication Ports |
5 (Ethernet, RS-232C) |
| Synchronization |
IEEE 1588 (≤100 µs) |
| I/O Network |
R, S, T IONets |
| Mounting |
Slot 1 in CPCI rack |
Application & Compatibility
The IS415UCCCH4A controller board is designed for use in GE’s Mark VIe distributed control systems. It supports various industrial applications including balance-of-plant, steam, gas, and aero-derivative turbines.
