Description

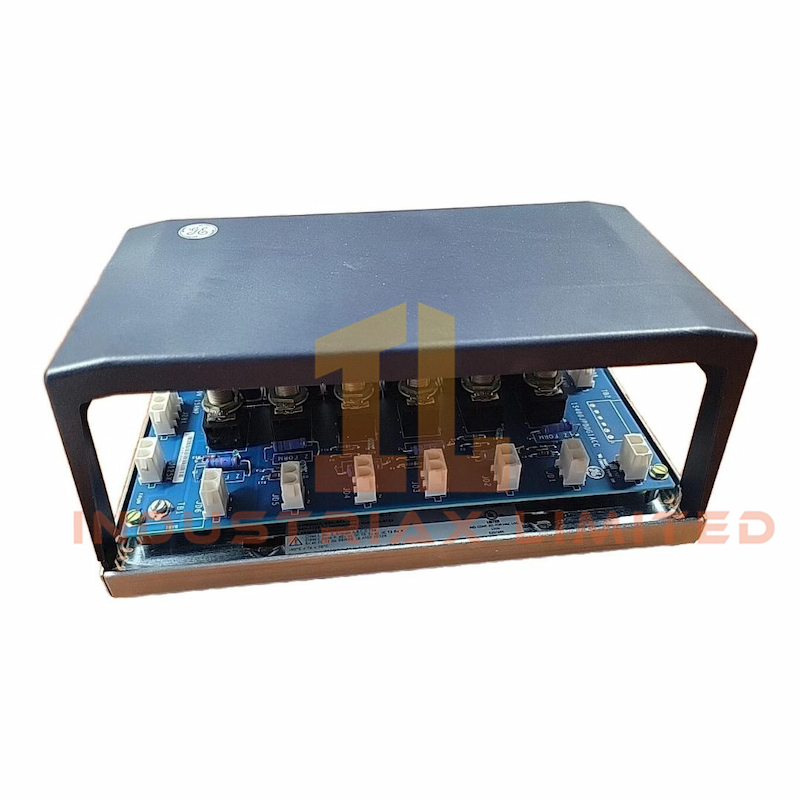

The GE IS410JPDDG1A Pack Power DIN Rail Module is a versatile dc power distribution board designed for use in Mark VIe Speedtronic control systems. It supports 125 Vdc, 48 Vdc, and 24 Vdc outputs for control and I/O functions such as dc relay activation, solenoid control, and contact wetting. Each output channel includes a fuse, manual switch, and indicator lamp to ensure safe operation and visual status monitoring. This module is not intended for powering I/O packs.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE |
| Series |
Mark VIe Speedtronic Control System |
| Part Number |
IS410JPDDG1A |
| Description |
Pack Power DIN Rail Module |
| Input Voltage |
24 Vdc |
| Current |
1 A |
| Output Voltages |
125 Vdc, 48 Vdc, 24 Vdc |
| Dimensions |
317.5 mm × 235 mm × 108 mm |
| Weight |
1.5 kg |
| Protection Features |
Fuse, switch, and lamp per output |
| Application Scope |
Control power, solenoids, contact wetting |
Key Features
-
Distributes multiple dc voltages for control and I/O functions
-
Each output includes fuse protection, manual switching, and voltage indication
-
Supports 125 Vdc, 48 Vdc, and 24 Vdc applications
-
DIN-rail mounting simplifies integration into control panels
-
Not intended for direct I/O pack power distribution
-
Ideal for relay control, solenoid actuation, and wetting circuits
