Description

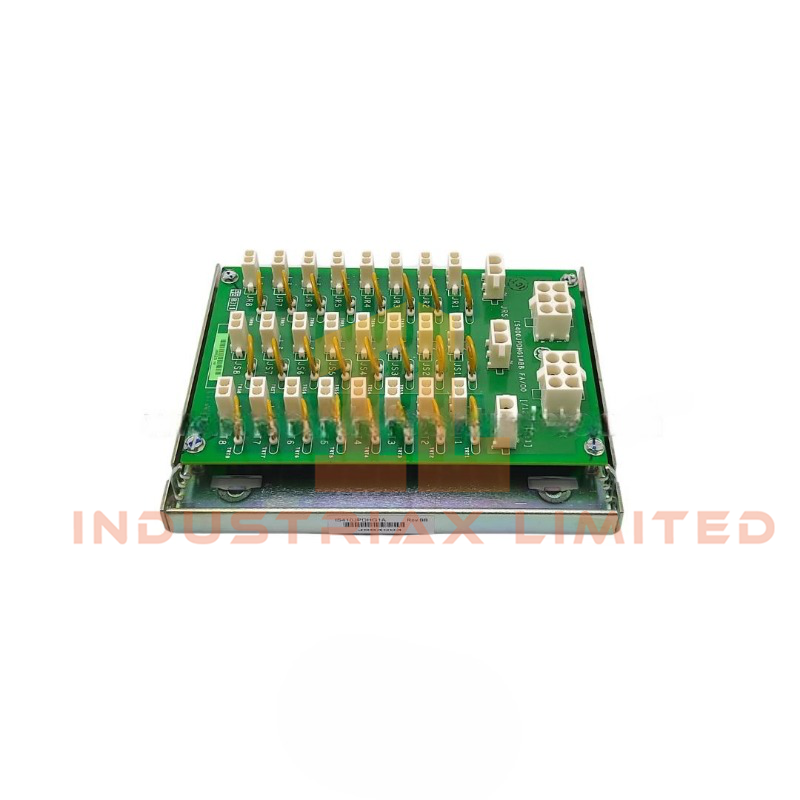

The GE IS400JPDHG1A High Density Power Distribution Board is engineered to supply 28 Vdc power to up to 24 Safety I/O modules and three Ethernet switches within the Mark VIeS system. Its daisy-chain capability allows scalable expansion, while each I/O connector is safeguarded by a positive temperature coefficient fuse to ensure fault isolation and system integrity.

Technical Specifications

Key Features

• Distributes 28 Vdc power to 24 Safety I/O modules and 3 Ethernet switches

• Compact 158 × 108 × 18 mm form factor fits tight control environments

• Lightweight 0.2 kg board simplifies mounting and integration

• Daisy-chain support enables scalable power expansion across multiple boards

• Built-in PTC fuses protect each I/O path from overload or short circuit

• Designed for high-density applications in safety-critical systems

Specifications

• Dimensions: 158 mm × 108 mm × 18 mm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
