Overview

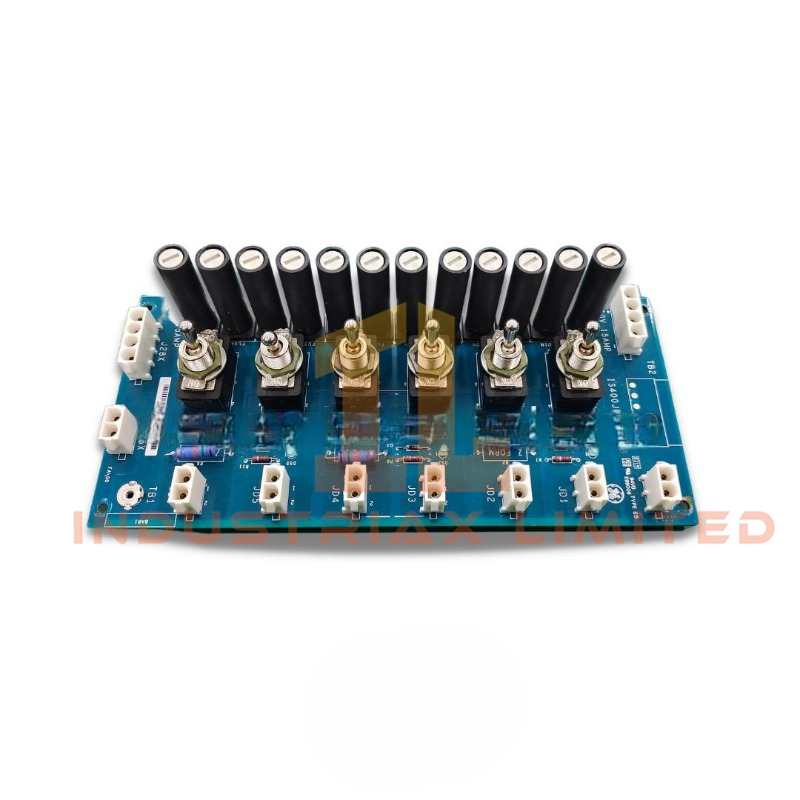

The IS400JPDDG1A Power Distribution Terminal Board from GE is designed for the Mark VIe Speedtronic Control System. It delivers isolated DC power and branch circuit protection for control and I/O functions requiring 24 Vdc, 48 Vdc, or 125 Vdc.

Technical Specifications

Specification	Detail
Manufacturer	GE
Part Number	IS400JPDDG1A
Product Series	Mark VIe Speedtronic Control System
Voltage Options	24 Vdc / 48 Vdc / 125 Vdc
Current	1A
Dimensions	23.4 cm × 10.8 cm × 6.5 cm
Weight	0.5 kg
Mounting Type	Vertical DIN-rail
Fuse Configuration	Dual-size, system-rated
Grounding Requirement	TB1 to system ground

Key Features

• Distributes DC power across control and I/O circuits with fuse protection.

• Supports three voltage levels but only one at a time per installation.

• Offers flexible fuse sizing for regional compliance and system compatibility.

• Mounts securely on DIN rails using a plastic holder for easy installation.

• Ensures safe operation with dedicated grounding via TB1 terminal.

Specifications

• Dimensions: 23.4 cm × 10.8 cm × 6.5 cm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
