Description
Product Overview

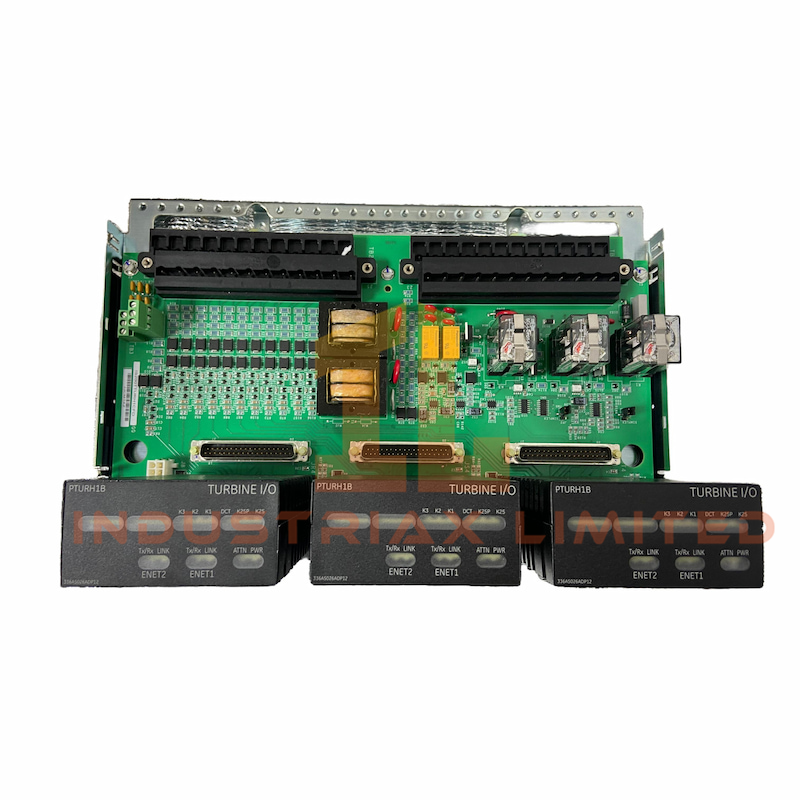

The IS230TNTRH1C Primary Turbine Protection DIN Rail Module from GE’s Mark VIe System delivers high-speed trip logic and protection for turbine control applications. This assembly includes the IS220PTURH1B I/O pack and the IS200TTURH1CFD terminal board, engineered to manage turbine-specific trip signals and relay control.
The module mounts securely on a DIN rail and supports real-time overspeed protection, trip relay activation, and signal routing. Its robust design ensures reliable operation in demanding industrial environments.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Series |
Mark VIe System |
| Model Number |
IS230TNTRH1C |
| Voltage Input |
24 Vdc |
| Current Draw |
3 A |
| Dimensions |
34 cm × 24.9 cm × 15.3 cm |
| Weight |
3 kg |
| Included Components |
IS220PTURH1B, IS200TTURH1CFD
|
| Mounting Type |
DIN rail |
| Application Type |
Turbine trip protection |
Features & Performance
The IS230TNTRH1C module integrates turbine-specific trip logic with high-speed relay control. It processes overspeed signals and interfaces with emergency solenoids to ensure safe turbine shutdown. The I/O pack and terminal board work together to deliver precise signal conditioning and relay actuation.
Its DIN rail mounting simplifies installation and maintenance, while the 3 A current rating supports high-load switching. The module’s compact footprint and rugged build make it suitable for both retrofit and new installations.
