Description

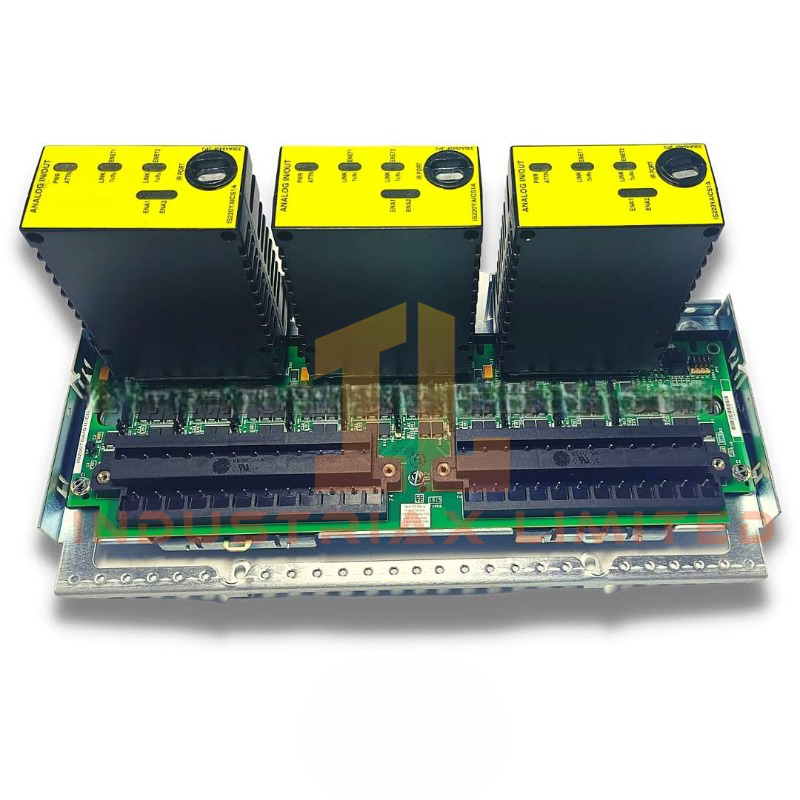

The GE IS230TAISH2C TMR DIN Rail Analog I/O Module is engineered for high-integrity analog signal acquisition and output in Mark VIe safety control systems. It consists of the IS220YAICS1A I/O pack and a DIN-rail mounted analog terminal board, supporting Triple Modular Redundancy (TMR) and Simplex configurations. In TMR mode, the controller selects the median input value to reject outliers, while a patented output circuit ensures faulty I/O packs are excluded from signal generation.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE |
| Series |
Mark VIe system |
| Part Number |
IS230TAISH2C |
| Description |
TMR DIN Rail Analog I/O Module |
| Input Voltage |
24 Vdc |
| Current |
1 A |
| Dimensions |
170 mm × 157 mm × 153 mm |
| Weight |
1.5 kg |
| I/O Pack |
IS220YAICS1A |
| Terminal Board |
DIN-rail mounted, supports TMR/Simplex |
| Analog Inputs |
10 channels (2W/3W/4W/external power) |
| Analog Outputs |
2 channels (0–20 mA configurable) |
| Connectors |
3 × DC-37 for TMR, 1 × JR1 for Simplex |
| Signal Protection |
Surge and high-frequency noise suppression |
| Output Logic |
Median selection and fault rejection |
Key Features
-
Supports 10 analog inputs and 2 configurable outputs
-
Compatible with two-wire, three-wire, four-wire, and externally powered transmitters
-
TMR configuration selects median input to reject faulty signals
-
Patented output circuitry excludes underperforming I/O packs
-
Noise suppression circuitry ensures stable signal acquisition
-
DIN-rail mounting simplifies integration into compact control panels
-
Ideal for safety-critical applications requiring redundancy and precision
