Description
Product Overview

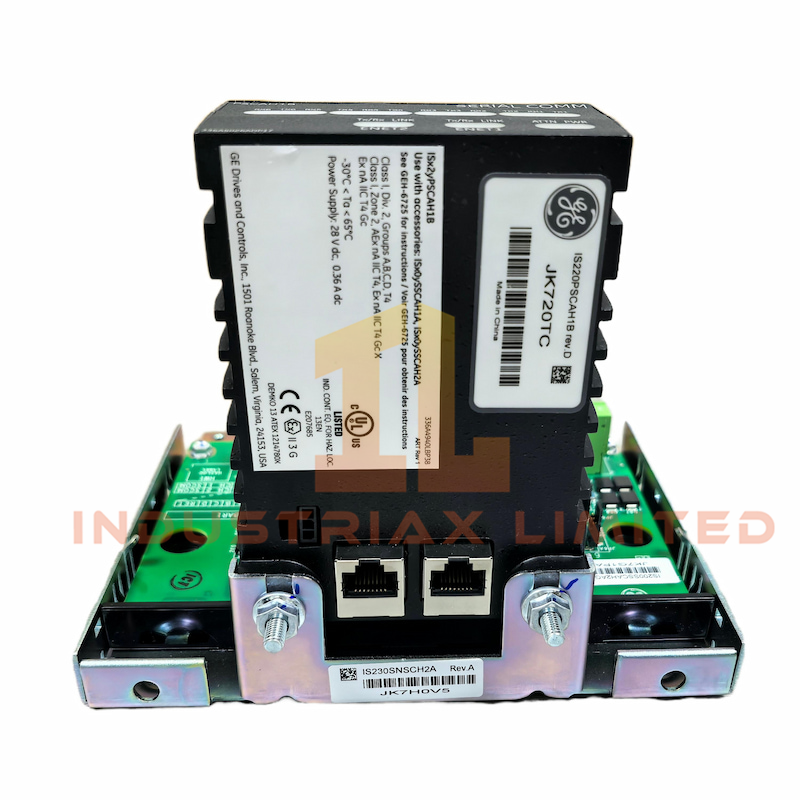

The IS230SNSCH2A Serial Communication Module from GE enables Modbus Master protocol over both serial and Ethernet media. It integrates the IS220PSCAH1B I/O pack and the IS200SSCAH2A terminal board, supporting simplex configurations only.
This module features six transceiver channels, each configurable for RS-232, RS-422, or RS-485 half-duplex communication. Users can set termination schemes using jumpers on the SSCA terminal board. The PSCA I/O pack also supports Modbus TCP via one of two Ethernet ports, following the open Modbus/TCP specification for Class 1 devices.
Designed for industrial automation, the IS230SNSCH2A delivers reliable data exchange between gateway controllers and field devices.
Technical Specifications
| Specification |
Detail |
| Manufacturer |
GE |
| Part Number |
IS230SNSCH2A |
| System Compatibility |
Mark VIe |
| Voltage |
24 Vdc |
| Current |
3 A |
| Dimensions (cm) |
17.0 × 15.7 × 15.3 |
| Weight |
0.8 kg |
| Serial Channels |
6 configurable ports |
| Protocols Supported |
RS-232, RS-422, RS-485, Modbus TCP |
| I/O Pack |
IS220PSCAH1B |
| Terminal Board |
IS200SSCAH2A |
| Configuration Mode |
Simplex only |
| Ethernet Ports |
2 RJ-45 |
| Termination Setup |
Jumper-based |
| Compliance |
Modbus/TCP Class 1 |
Application & Compatibility
The IS230SNSCH2A module is ideal for systems requiring Modbus Master communication across serial and Ethernet networks. It supports simplex configurations and integrates with Mark VIe control platforms.
Use this module in turbine control, process automation, and gateway-based data acquisition. Its flexible protocol support and compact design make it suitable for high-density installations and legacy system integration.
