Product Overview

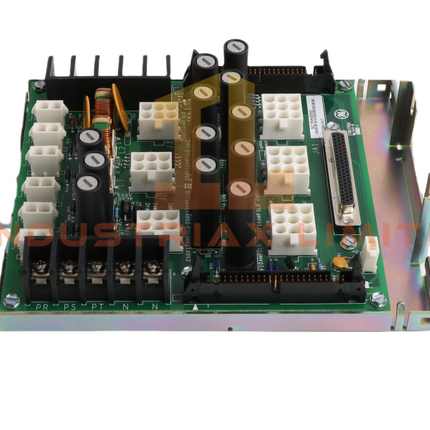

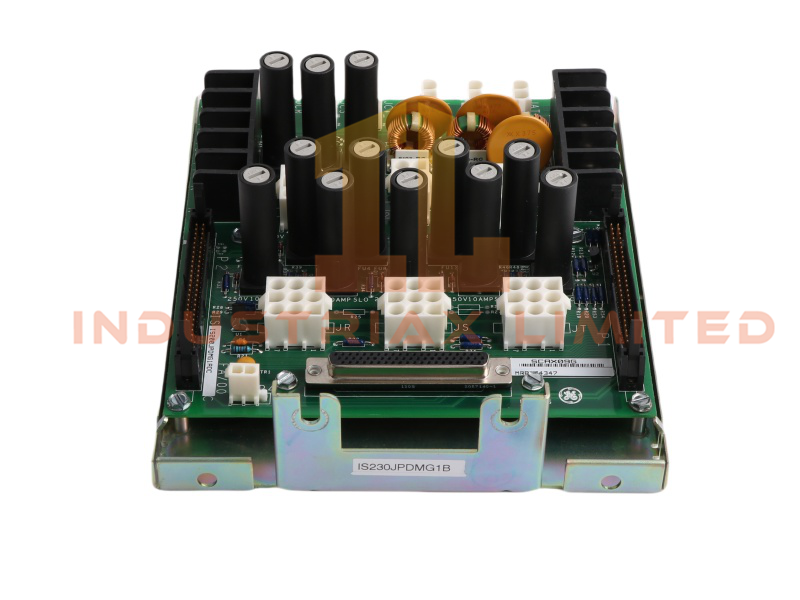

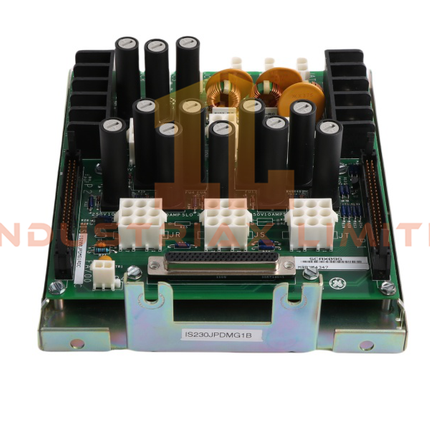

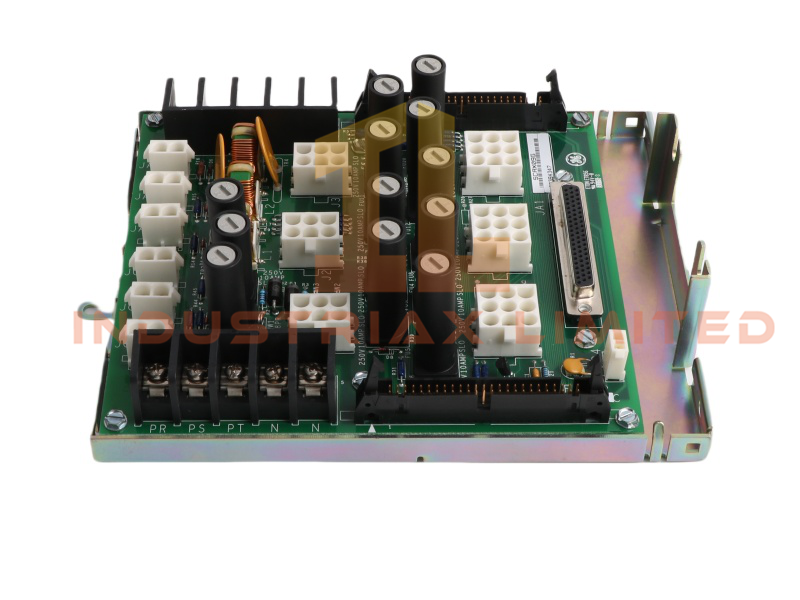

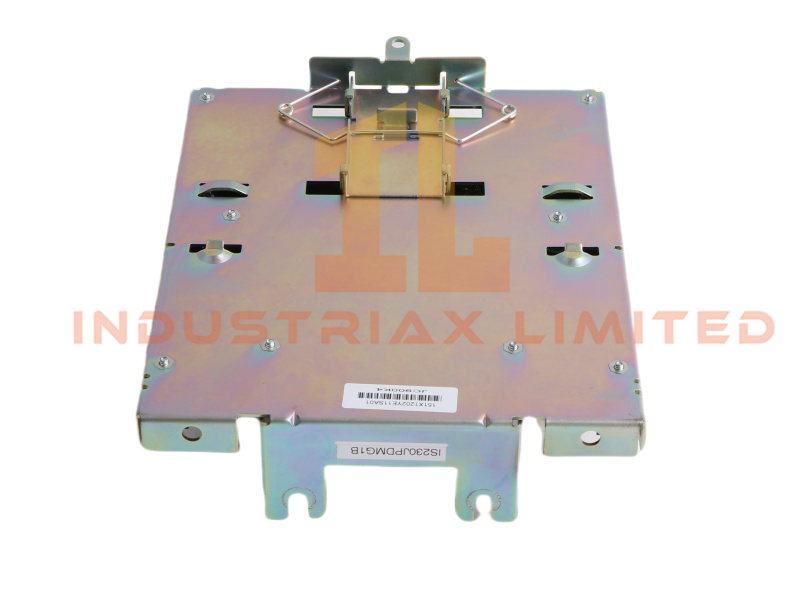

The General Electric IS230JPDMG1B belongs to the EX2100 series and functions as a feedback module within the Mark VIe Distributed Control System. Engineers use this board to distribute 28 VDC input power across three independent buses while maintaining fuse protection for all outputs.

This module measures 20.5 × 17 × 7.5 cm and weighs 1.02 kg, offering a robust yet compact design for industrial power distribution. It integrates seamlessly with PPDA I/O packs, ensuring real-time feedback and reliable system monitoring.

Technical Specifications

General Parameters

Specification	Value
Model Number	IS230JPDMG1B
Manufacturer	GE
Product Range	EX2100
Module Type	Feedback Module
Weight	1.02 kg
Dimensions	20.5 × 17 × 7.5 cm
Origin	USA
HS Code	8537101190
Condition	Brand New
Lead Time	In Stock
System	DCS

Electrical and Functional Details

• Receives 28 VDC input from external converters

• Provides 24 A steady-state current capacity

• Maintains three independent buses (R, S, T) with jumper configuration options

• Supports redundant power supply setups across buses

• Includes three fused Mate-N-Lok connectors (JCR, JCS, JCT) rated at 10 A each

• Features terminal boards TB1 and TB2 for interconnection between JPDM units

• Utilizes DC-62 connector (JA1) for PPDA I/O pack feedback

• Employs two 50-pin ribbon connectors (P1, P2) for diagnostic signals

Specifications

• Dimensions: 20.5 × 17 × 7.5 cm
• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
