Description
Product Overview

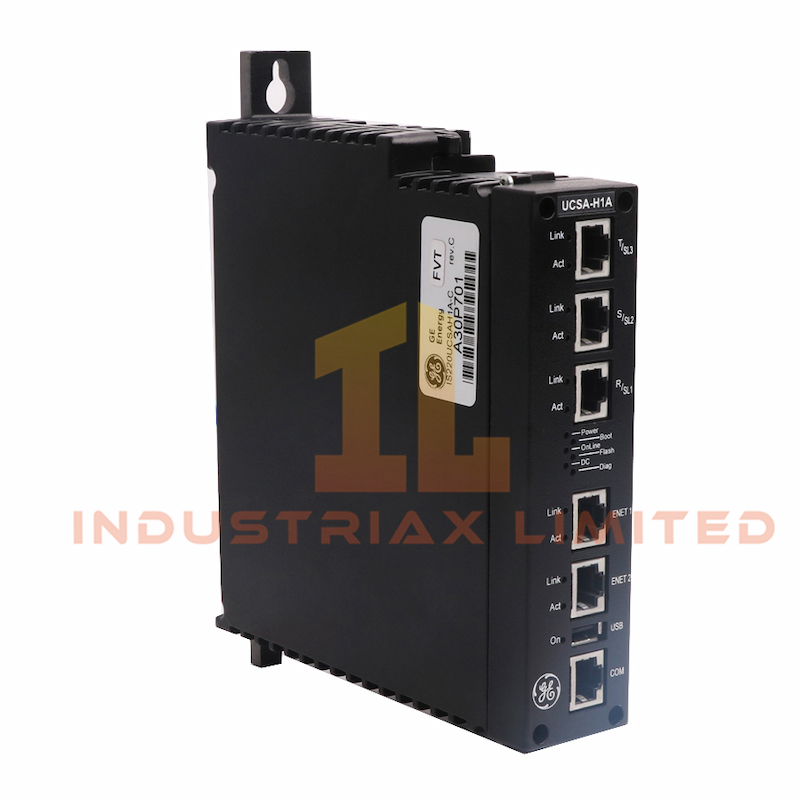

The IS220UCSAH1A Controller Module from GE’s Mark VIe series delivers high-performance control and network management for industrial automation systems. It features a 667 MHz Power QUICC II Pro Freescale processor and five 10/100BaseTX Ethernet ports—two for UDH and three for IONet connectivity.
This module converts 28 Vdc input to 5 Vdc internally and supports multiple power planes. LED indicators provide real-time diagnostics for link status, traffic activity, boot process, flash access, controller designation, and USB activity. The controller integrates seamlessly with ToolboxST for configuration and diagnostics.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Series |
Mark VIe |
| Model |
IS220UCSAH1A |
| Description |
Controller Module |
| Processor |
667 MHz Power QUICC II Pro |
| Voltage Input |
28 Vdc |
| Frequency |
1 Hz |
| Dimensions |
20 cm × 16 cm × 4 cm |
| Weight |
1 kg |
| Ethernet Ports |
5 × 10/100BaseTX |
| Power Conversion |
28 Vdc to 5 Vdc |
| Diagnostic Indicators |
Link, Act, Power, Boot, Online, Flash, Dc, Diag, On |
Features & Benefits
-
The IS220UCSAH1A supports five Ethernet ports for flexible network integration.
-
Its compact 20×16×4 cm size fits easily into control cabinets.
-
Weighing just 1 kg, the module offers lightweight installation and handling.
-
LED indicators provide clear visual feedback for system status and diagnostics.
-
The controller manages internal power conversion from 28 Vdc to 5 Vdc.
-
ToolboxST compatibility enables efficient configuration and fault resolution.
-
The module supports real-time application code execution and USB activity monitoring.
Application & Compatibility
The IS220UCSAH1A module suits industrial environments requiring centralized control and high-speed Ethernet communication. It integrates with GE Mark VIe systems and supports both UDH and IONet networks. Use this controller in power generation, process automation, and safety-critical systems.
Its LED diagnostics and multi-port design make it ideal for distributed control architectures. The module’s compatibility with ToolboxST ensures streamlined setup and maintenance.
