Description

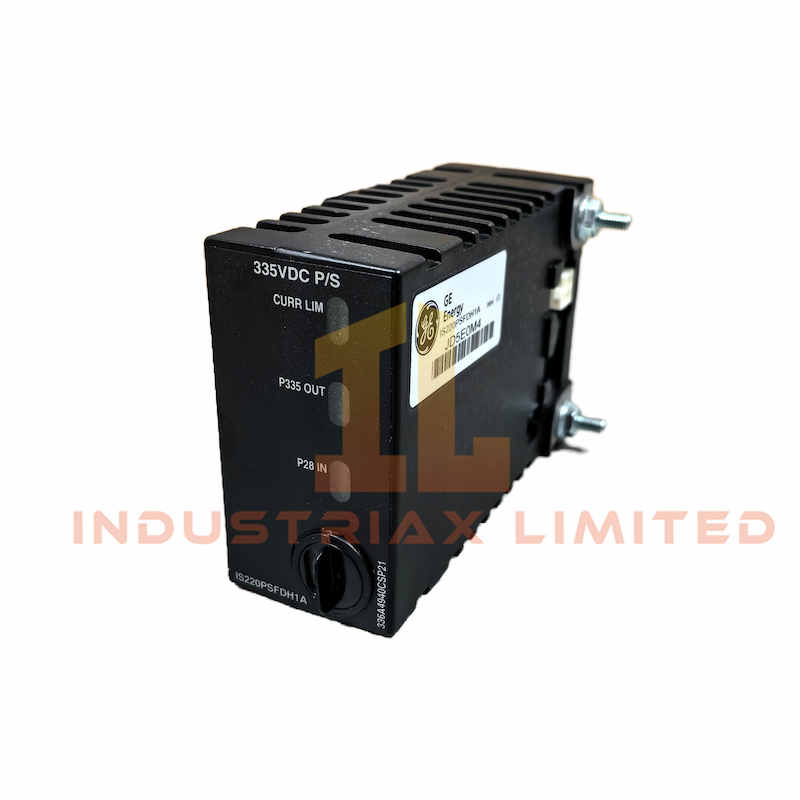

The GE IS220PSFDH1A Flame Detector Power Supply Module is designed to deliver stable high-voltage output for up to eight flame detectors in Mark VIe turbine protection systems. Mounted above the TRPG terminal board, it draws 28 Vdc input from a JPDL power distribution board and outputs 335 Vdc at 5 mA. Its diode-ORed TMR configuration ensures full redundancy—each unit can independently power all detectors if others fail.

Technical Specifications

Key Features

• Powers up to eight flame detectors with 335 Vdc output

• Diode-ORed configuration supports TMR redundancy

• Convection cooling eliminates fan maintenance

• Soft start input reduces inrush current during hot swap

• Built-in over-voltage protection and EMI filtering

• Compact 83 × 42 × 122 mm design fits tight enclosures

• 1700 Vdc isolation ensures safe operation in harsh environments

• Diagnostic LEDs and test points simplify field troubleshooting

Specifications

• Dimensions: 83 mm × 42 mm × 122 mm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
