Description

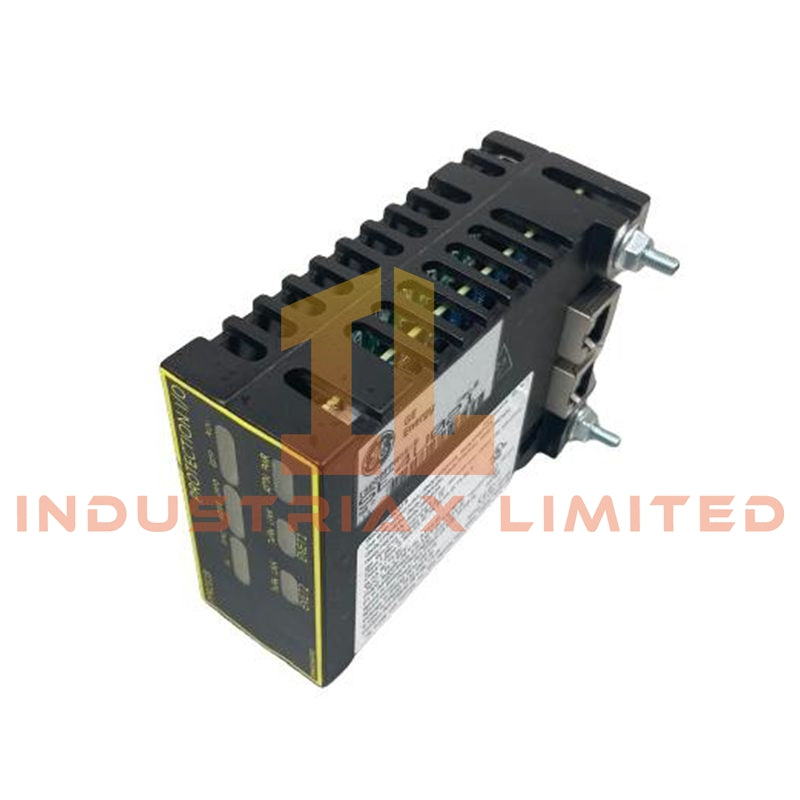

GE IS220PPRAS1A Proximity Input I/O Pack

Configured for proximity probe and Keyphasor signal acquisition in the GE Mark VIe turbine control system, the GE IS220PPRAS1A (IS220PPRAS1A Proximity Input I/O Pack) provides direct physical/electrical execution for shaft displacement, vibration, and speed measurement signals.

Hardware Specifications

Parameter	Specification
Model	IS220PPRAS1A
Brand	GE
Product Type	Proximity Input I/O Pack
System Compatibility	GE Mark VIe Turbine Control System
Origin	United States
Weight	0.6 kg
Operating Temp	-40 to +70 deg C
Input Channels	2 proximity probe channels + 1 Keyphasor channel
Sensor Type	Eddy-current proximity probes, magnetic pickup or proximity Keyphasor sensors
Probe Excitation	-24 VDC
Resolution	16-bit ADC
Sampling Rate	Up to 20 kHz
Buffered Outputs	BNC connectors for external monitoring
Isolation	2500 Vrms channel-to-backplane
Power Supply	28 VDC nominal from Mark VIe backplane
PCB Treatment	Conformal coating, S1A revision
Certifications	CE, UL, CSA, RoHS

Eddy-Current Probe Signal Processing and Rotor Monitoring

The IS220PPRAS1A interfaces with eddy-current proximity probes for shaft displacement and vibration measurement. Probe calibration requires validation of gap voltage conditions, with approximately -10 VDC used as the nominal probe gap reference. The module processes dynamic vibration signals and Keyphasor timing signals for rotor speed and phase-related monitoring.

Signal conditioning functions include input filtering, channel isolation, and buffered output routing. The 2500 Vrms isolation between channels and backplane reduces interference transfer during turbine control operation.

Frequently Asked Questions

Q: What sensor types can be connected to the IS220PPRAS1A?
A: The module supports eddy-current proximity probes for shaft measurement and magnetic pickup or proximity sensors for Keyphasor input signals.

Q: Does the IS220PPRAS1A provide external monitoring outputs?
A: Yes. Buffered outputs are available through BNC connectors for connection to external diagnostic equipment.

Q: Is the module compatible with redundant Mark VIe configurations?
A: The provided data specifies Mark VIe I/O rack installation and does not define a specific redundancy configuration. System configuration must follow the Mark VIe hardware design requirements.

Field Installation Guidelines

Install the IS220PPRAS1A in the designated Mark VIe I/O rack position and verify correct mechanical engagement with the rack connectors.

Connect proximity probe and Keyphasor wiring according to the terminal assignment documentation. Sensor cable shields should be terminated according to site grounding practice to reduce electromagnetic interference.

Route vibration sensor cables separately from high-current power wiring and switching circuits. Verify probe polarity, excitation wiring, and signal reference connections before system startup.

Perform probe gap calibration and confirm the expected gap voltage before enabling turbine monitoring functions. Configure channel parameters through the applicable Mark VIe engineering software.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
