Description
Product Overview

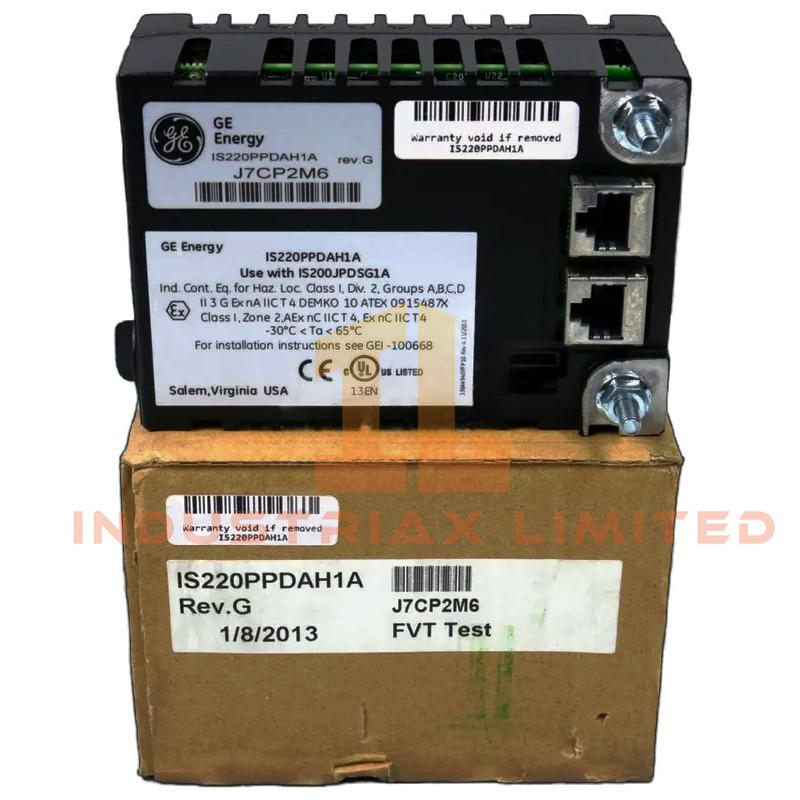

The IS220PPDAH1A Power Distribution System Feedback I/O Pack from GE’s Mark VIe series delivers real-time feedback for power bus voltages, branch circuit status, ground fault detection, and bulk power supply health. It supports up to six feedback sets, each with five channels, totaling 30 monitored signals.
This surface-mount module integrates a 16-bit analog-to-digital converter and dual redundant Ethernet ports for reliable communication with Mark VIe or Mark VIeS controllers. The unit automatically identifies connected boards using electronic IDs and populates the IONet output with accurate feedback data.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Series |
Mark VIe |
| Model Number |
IS220PPDAH1A |
| Description |
Power Distribution Feedback I/O Pack |
| Input Channels |
30 total (5 per feedback set × 6) |
| ADC Resolution |
16-bit |
| Power Consumption |
5.3 W typical / 6.2 W max |
| Technology |
Surface mount |
| Operating Temperature |
-30 to 65 °C (-22 to 149 °F) |
| Dimensions |
8.3 cm × 4.2 cm × 12.2 cm |
| Weight |
340 g |
| Ethernet Interface |
Dual redundant ports |
Key Features
-
Accepts input from up to six power distribution boards
-
Automatically identifies connected boards via electronic ID
-
Dual Ethernet ports ensure redundant communication paths
-
Compact design fits easily into control cabinets
-
16-bit ADC delivers precise signal conversion
-
Surface-mount technology enhances reliability and durability
-
Operates across wide ambient temperature range
Applications & Compatibility
The IS220PPDAH1A I/O pack is compatible with GE control boards including JPDS, JPDM, JPDG, and JPDC. It supports feedback signals from JPDB, JPDE, and JPDF boards. Ideal for industrial power systems requiring detailed monitoring and fault detection across multiple distribution channels.
