Description
Product Overview

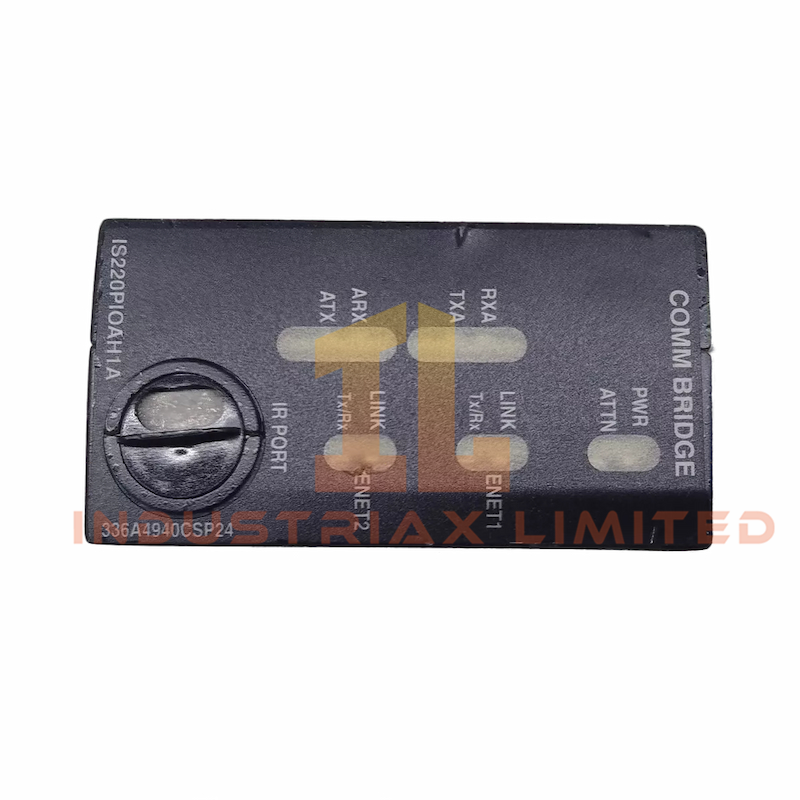

The IS220PIOAH1A ARCNET Interface Module from GE’s Mark VIe series delivers reliable excitation control for industrial automation systems. It connects directly to the JPDV terminal board via a 37-pin connector and supports both simplex and redundant configurations. The module includes dual RJ-45 Ethernet ports and a 3-pin power input for seamless integration into control architectures.
Designed for high-speed communication, the IS220PIOAH1A supports a 32 Hz frame rate and provides visual diagnostics through LED indicators. Its compact form factor and lightweight design make it ideal for space-constrained installations.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Series |
Mark VIe |
| Model |
IS220PIOAH1A |
| Description |
ARCNET Interface Module |
| Number of Channels |
24 |
| Frame Rate |
32 Hz |
| Voltage Input |
28 Vdc |
| Dimensions |
8.3 cm × 4.2 cm × 12.2 cm |
| Weight |
340 g |
| Ethernet Ports |
Dual RJ-45 |
| Power Connector |
3-pin |
| Signal Connector |
37-pin to JPDV |
| Diagnostic Indicators |
LED status lights |
Features & Benefits
-
The IS220PIOAH1A supports 24 channels for excitation control and ARCNET communication.
-
Its 32 Hz frame rate ensures responsive data exchange in real-time applications.
-
The compact 8.3×4.2×12.2 cm size fits easily into tight control panels.
-
Weighing only 340 g, the module offers lightweight installation and handling.
-
Dual RJ-45 ports provide robust Ethernet connectivity for system integration.
-
LED indicators offer clear visual feedback for power and signal diagnostics.
-
The 37-pin connector ensures secure attachment to the JPDV terminal board.
