Description
Product Overview

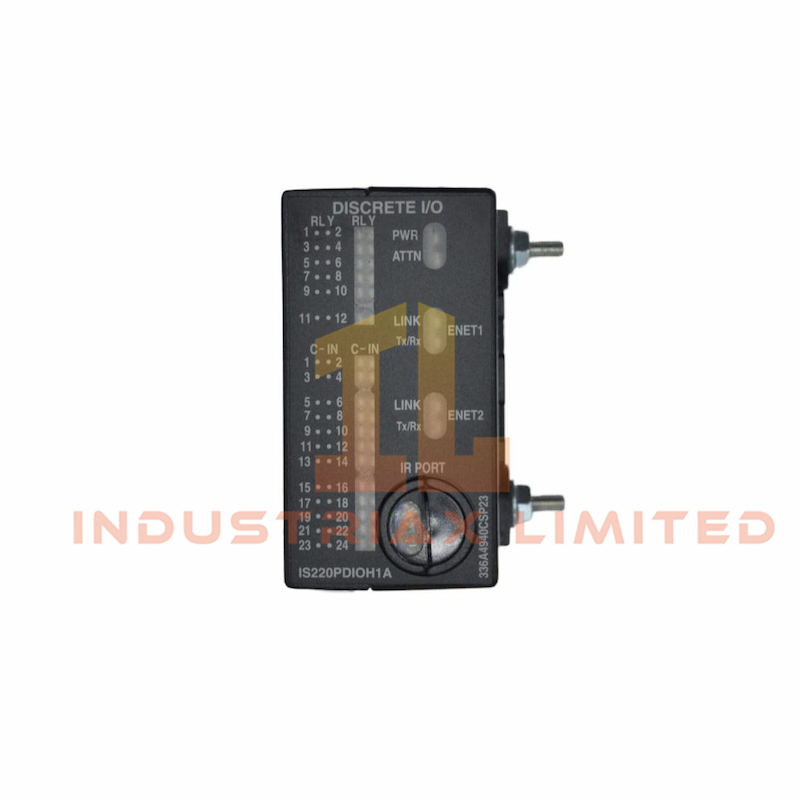

The GE IS220PDIOH1A Discrete I/O Module is a compact and versatile I/O pack from the Mark VIe Series, designed to interface Ethernet networks with discrete input/output terminal boards. It combines the functionality of both PDIA and PDOA modules into a single unit, streamlining control system architecture.
This module supports up to 24 contact inputs and 12 relay outputs. It includes a BPPx processor board and a dedicated acquisition board for discrete signal processing. Input/output signals are routed through a DC-62 connector, while system communication is handled via dual RJ-45 Ethernet ports and a three-pin power input. Diagnostic LEDs provide real-time status visibility.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Part Number |
IS220PDIOH1A |
| Ordering Code |
IS220PDIOH1A |
| Product Series |
Mark VIe |
| Description |
Discrete I/O Module |
| Input Channels |
24 DI |
| Relay Outputs |
12 form C contact DO |
| Voltage Rejection |
60 V rms at 50/60 Hz @ 125 Vdc |
| Ambient Temperature Range |
-30 to 65°C (-22 to 149 °F) |
| Dimensions |
8.3 cm × 4.2 cm × 12.2 cm |
| Weight |
340 g |
| Signal Connector |
DC-62 pin |
| Network Interface |
Dual RJ-45 Ethernet |
| Power Input |
3-pin |
| Diagnostic Indicators |
LED status lights |
Key Features
-
Combines input and output functions into one compact module
-
Interfaces with terminal boards like TDBS (simplex) and TDBT (TMR)
-
Supports optional WROB board for fused relay power distribution
-
Accepts 24 discrete inputs and controls 12 relay outputs
-
Provides AC voltage rejection at 125 Vdc wetting voltage
-
Compact 8.3×4.2×12.2 cm size fits tight control enclosures
-
Lightweight 340 g design simplifies mounting and replacement
-
Offers real-time diagnostics via front-facing LED indicators
Applications & Compatibility
The IS220PDIOH1A module is ideal for turbine control systems requiring high-density discrete I/O. It supports both simplex and TMR configurations and integrates seamlessly with Mark VIe terminal boards.
Compatible with:
-
GE Mark VIe control platforms
-
TDBS and TDBT terminal boards
-
Systems using WROB option board for relay power management
-
Industrial applications needing combined input/output signal processing
