Product Overview

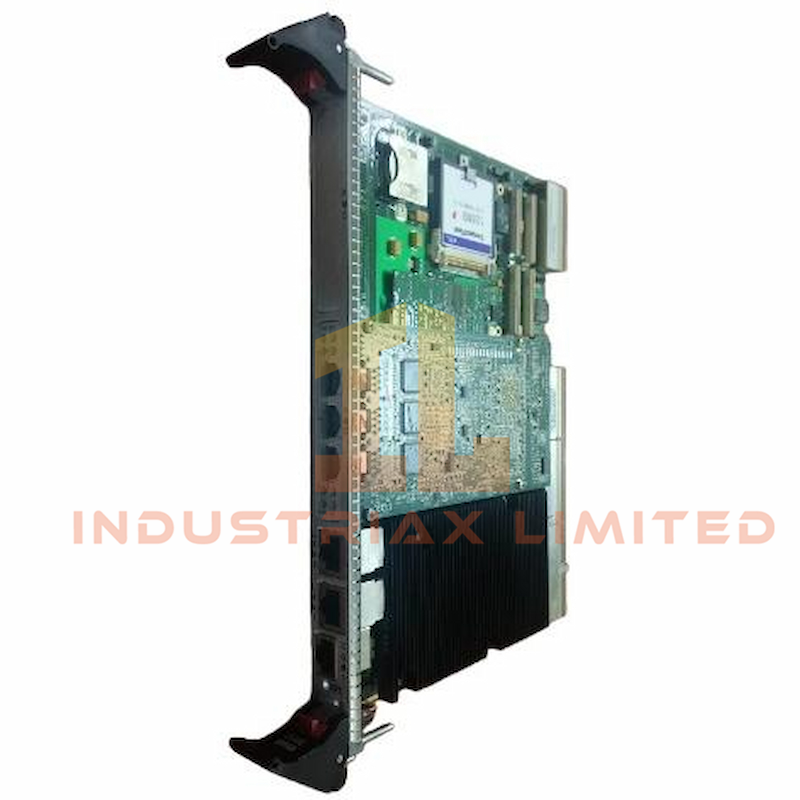

The GE IS215UCCCM04A is a high-performance CPCI controller board from the Mark VI Series, designed for real-time turbine control and industrial automation. It combines the IS215UCCCH4 board with 128MB flash memory, 256MB DDR SDRAM, and the IS200EPMC module, delivering robust processing and communication capabilities.
This 6U single-slot CPCI board runs on a 1.6GHz Intel Pentium M processor and uses the QNX® Neutrino® operating system for multitasking control. It supports multiple industrial protocols including Ethernet Modbus, EGD, and TCP/IP, ensuring seamless integration with HMIs, PLCs, and third-party systems.
Technical Specifications
| Parameter |
Specification |
| Part Number |
IS215UCCCM04A |
| Series |
Mark VI |
| Processor |
Intel Pentium M 1.6 GHz |
| Memory |
256MB DDR SDRAM, 128MB Flash, 256KB L2 Cache |
| Operating System |
QNX Neutrino |
| Ethernet Ports |
5 RJ-45 (10/100/1000BaseTX) |
| COM Port |
RS-232C via RJ-45 |
| Power Requirements |
+5V @ 4.5A, +3.3V @ 1.5A, ±12V @ 50mA |
| Environmental Range |
0–50°C (operating), -40–85°C (storage) |
| Humidity |
5%–95%, non-condensing |
| Shock Resistance |
10 Gs, 16 ms half sine |
| Vibration Resistance |
6 Gs rms (20–2000 Hz) |
Communication & Programming
-
Supports control block language with analog, discrete, and Boolean logic
-
Compatible with relay ladder diagram format and multiple data types
-
Interfaces with HMIs via UDH and communicates with I/O packs over Ethernet
-
Uses EGD protocol for variable exchange with CIMPLICITY and Series 90-70 PLCs
-
Ethernet Modbus protocol enables third-party DCS integration
