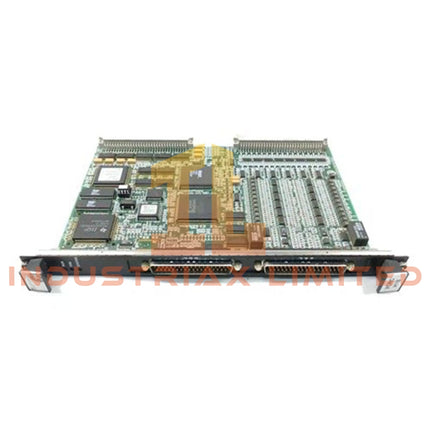

GE IS215RCLEH1BC Controller Module

The GE IS215RCLEH1BC, also cataloged as the IS215RCLEH1BC Controller Module, operates as a dedicated hardware component for discrete output execution within GE Mark VI industrial control platforms. The module provides 32 isolated digital output channels through grouped signal paths for turbine and generator control operations.

Hardware Specifications

Parameter	Specification
Model	IS215RCLEH1BC
Brand	GE
Origin	USA
Weight	0.22 kg
Dimensions	222 x 177 x 27 mm
Product Type	Controller Module
Series	GE Mark VI industrial control system
Input Voltage	12/24 VDC
Output Configuration	32 discrete outputs
Output Grouping	4 isolated groups of 8 outputs
Output Current	0.5 A per point
Mounting Type	Rack-mounted

I/O Density Scaling and Industrial Control Output Processing

The IS215RCLEH1BC integrates GE Mark VI control architecture functions through grouped isolated digital output channels. The module supports I/O density scaling by providing 32 discrete outputs arranged into four electrically isolated groups, allowing separate field device control circuits within the same rack installation.

The isolated output structure reduces signal interaction between output groups and supports defined switching behavior for turbine and generator control applications. The module operates as a digital execution interface between controller logic and external field devices.

Frequently Asked Questions

Q: How are the digital outputs organized on the IS215RCLEH1BC?
A: The module provides 32 discrete outputs arranged in four isolated groups of eight channels, identified as A1-A8, B1-B8, C1-C8, and D1-D8.

Q: What is the output current capability of each channel?
A: Each discrete output point supports an output current of 0.5 A.

Q: What mounting method is used for the IS215RCLEH1BC?
A: The module uses a rack-mounted installation method within the GE Mark VI control system hardware configuration.

Field Installation Guidelines

Install the IS215RCLEH1BC in the designated GE Mark VI rack position according to system configuration requirements. Verify the module orientation, rack connector engagement, and supply voltage conditions before operation.

Route discrete output wiring separately from high-current power conductors where possible to reduce electrical interference. Use appropriate grounding practices for the control cabinet and maintain proper cable shielding where required by the installation environment.

After installation, verify each isolated output group connection, confirm field device wiring polarity, and perform controller diagnostics to validate communication and output operation.
