Description
Product Overview

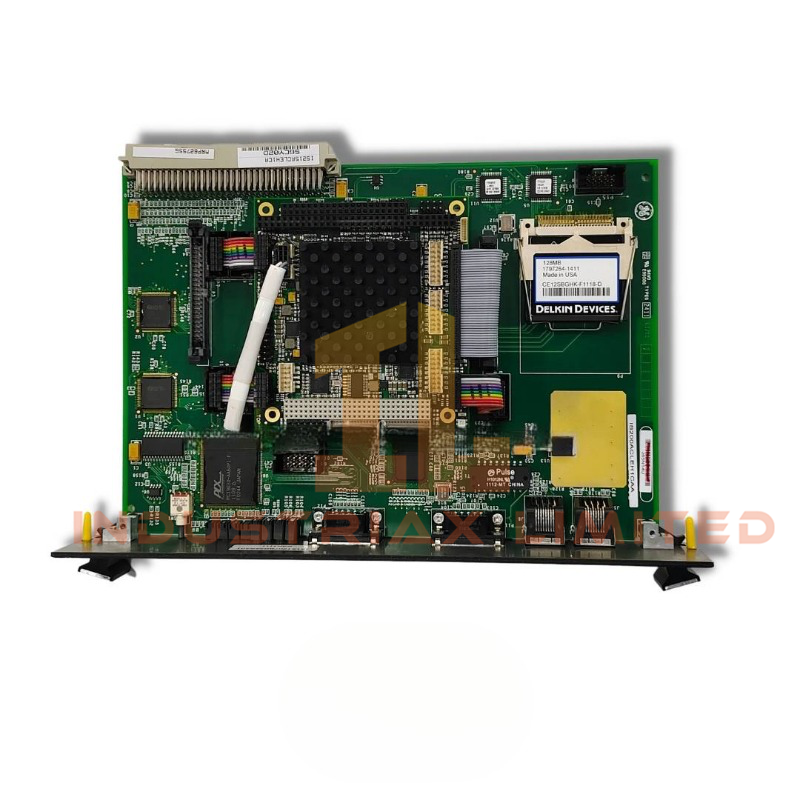

The IS215ACLAH1C Application Control Layer Module from GE’s EX2100 Series serves as a master controller for drive and exciter systems. It mounts in standard Innovation Series racks and occupies two half-slots within the control cabinet. This module supports Ethernet and serial communication, enabling real-time control and diagnostics.
The ACL connects via a 128-pin P1 connector to the Control Assembly Backplane Board (CABP) or Exciter Backplane (EBKP), depending on the application. It integrates seamlessly with GE’s Toolbox software for configuration and monitoring.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Series |
EX2100 |
| Model Number |
IS215ACLAH1C |
| Voltage Input |
24 Vdc |
| Current Draw |
100 mA |
| Dimensions |
18 cm × 12 cm × 5 cm |
| Weight |
0.5 kg |
| DRAM |
8 MB |
| Flash Memory |
4 MB BIOS |
| Cache |
128 KB L2 |
| Ethernet Port |
1 × 10BaseT |
| Serial Ports |
COM1 and COM2 |
| PCI Controller |
Integrated |
| Mounting Interface |
CABP or EBKP |
Software & Control Features
The IS215ACLAH1C supports control block language and online configuration loading. It enables I/O forcing, alarm messaging, and diagnostics for run/start permissives. Non-volatile flash memory stores application data securely.
Toolbox software provides Ethernet-based access for configuration and monitoring. The module supports application-level control for Innovation Series drives and EX2100 exciters.
