Description
Overview

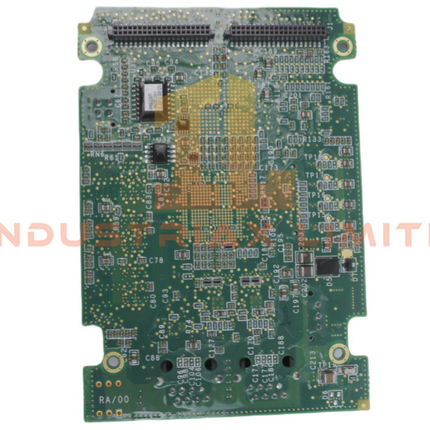

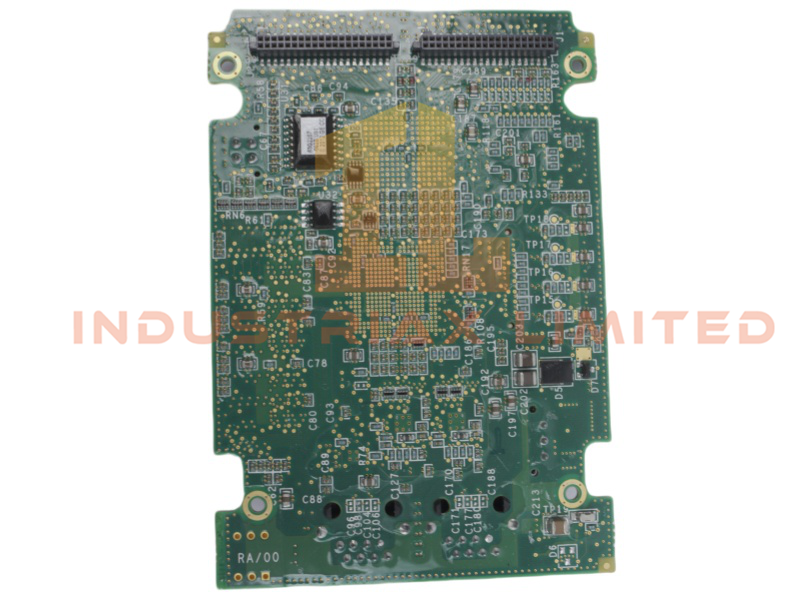

The IS210BPPBH2BLD auxiliary printed circuit board is part of GE’s Mark VIe control platform and functions as a daughterboard within the WETA module assembly. Designed for high‑reliability turbine control environments, the board supports signal conditioning, communication interfacing, and auxiliary processing tasks essential to Mark VIe system operation.
Technical Specifications
The module is built on a compact, industrial‑grade PCB with reinforced mounting points and a component layout optimized for stable performance in high‑temperature and high‑vibration environments.
| Parameter |
Specification |
| Model |
IS210BPPBH2BLD |
| Product Type |
Printed Circuit Board |
| Product Series |
GE Mark VIe |
| Mounting |
Four‑point standoff mounting (brass hardware) |
| Connectors |
Two female jack connectors, multi‑position plug, 3‑position plug |
| Diagnostic Features |
Dual LED indicators, TP test points |
| Key Components |
Transformers, transistors, inductors, crystal oscillators |
| Dimensions |
29.2 × 13 × 2.7 cm |
| Weight |
0.32 kg |
| HS Code |
8537101190 |
| Origin |
USA |
| Condition |
New |
Functional Characteristics
The board is engineered to operate as a secondary processing and interface module within the Mark VIe architecture. Its component set includes timing oscillators, power‑conditioning elements, and signal‑processing devices arranged to maintain electrical stability under demanding operating conditions.
The board attaches directly to WETA main boards using four corner screws and brass standoffs, ensuring mechanical rigidity. Multiple connectors provide flexible interfacing with other Mark VIe subsystems, while onboard LEDs and test points support maintenance and troubleshooting.
The PCB includes identification markings such as GE branding, functional codes, and manufacturing identifiers, ensuring traceability and compliance with GE quality standards.
Application Scenarios
The IS210BPPBH2BLD is commonly used in:
-
Gas and steam turbine control systems
-
Auxiliary processing within WETA assemblies
-
Mark VIe signal conditioning and communication modules
-
Power plant control cabinets requiring compact daughterboard integration
-
Systems requiring stable timing, filtering, and auxiliary logic functions
FAQ
Q: Is the IS210BPPBH2BLD a standalone controller? A: No, it functions as a daughterboard and must be installed on a compatible WETA main board.
Q: What diagnostic features are available? A: The board includes dual LED indicators and multiple test points for field diagnostics.
Q: Does the board support harsh‑environment operation? A: Yes, its industrial‑grade construction is designed for high‑temperature and high‑vibration turbine environments.
Q: What software tools are typically used with this module? A: It integrates with GE’s Control System Toolbox and CIMPLICITY‑based operator interfaces.
