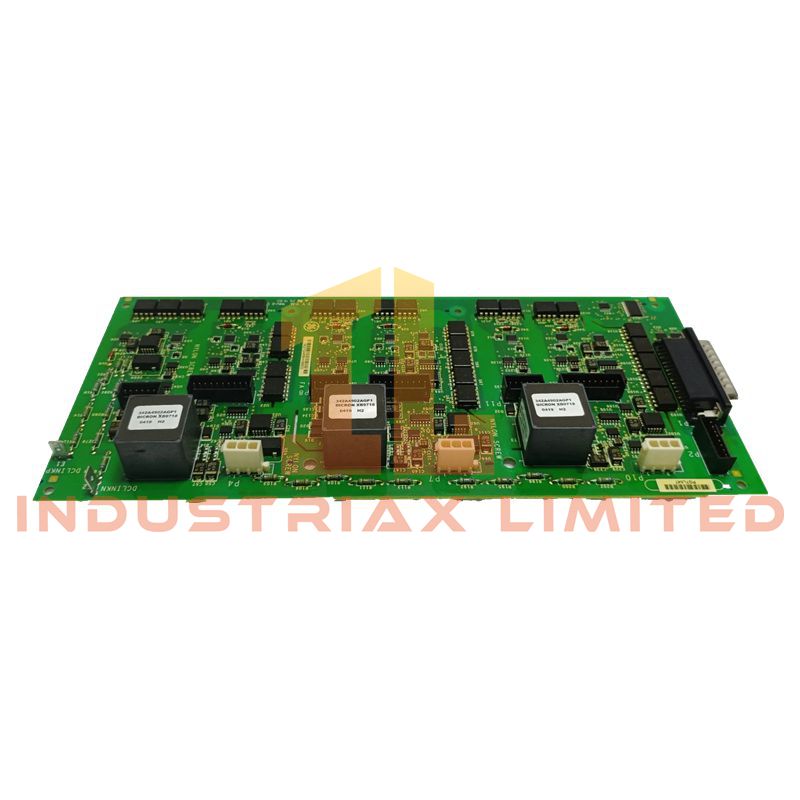

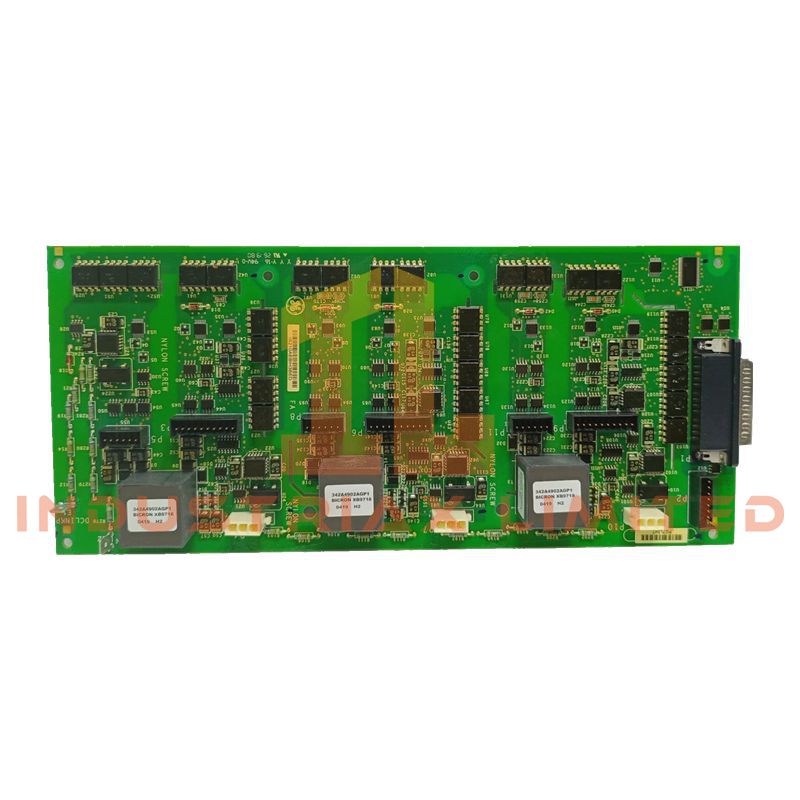

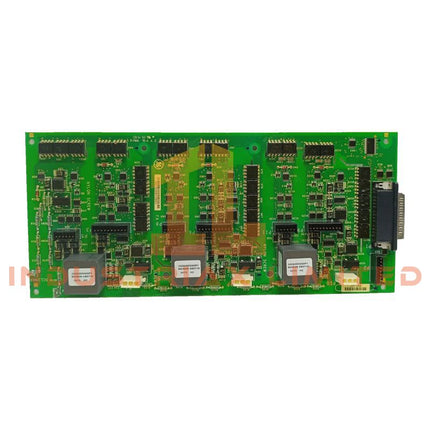

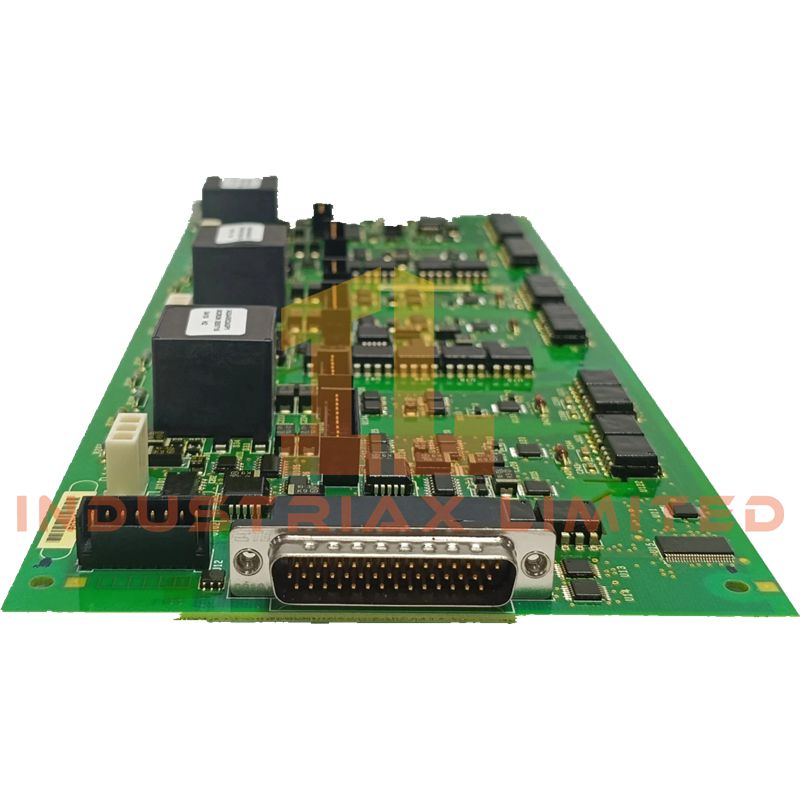

GE IS210AEBIH3BED AE Bridge Interface PCB Module
The GE IS210AEBIH3BED, also cataloged as the IS210AEBIH3BED AE Bridge Interface PCB, operates as a dedicated hardware component for turbine field signal isolation and conditioning within the GE Mark VIe control system. The module processes analog and digital input signals between field devices and controller circuits.
Hardware Specifications
Parameter
Specification
Model
IS210AEBIH3BED
Brand
GE
Origin
United States
Weight
0.5 kg
Dimensions
Rack-mount PCB form factor; dimensions not specified
Operating Temp
-40 deg C to +70 deg C
Power Consumption
Approx. 3 W
System Platform
Mark VIe Speedtronic
Hardware Type
AE Bridge Interface (AEBI) PCB
Functional Role
Signal conditioning and galvanic isolation
Input Types
4-20 mA, +/-10 V analog, RTD, thermocouple, LVDT, dry contacts
Channel Configuration
8 isolated channels
Resolution
16-bit precision
Isolation Voltage
2.5 kV RMS field-to-logic
Power Input
24 VDC nominal
Environmental Protection
Conformal coating for dust, humidity, and salt fog exposure
Functional Revision
H3 hardware revision
Configuration Suffix
BED baseline configuration
Industrial Control Signal Isolation and Network Integration
The IS210AEBIH3BED is configured for GE Mark VIe I/O signal handling and provides galvanic separation between field wiring and controller electronics. The isolated channel design supports reduction of ground loop effects and electrical noise during turbine sensor acquisition.
The module operates within GE industrial control architectures using deterministic communication paths between I/O assemblies and controllers. Configuration compatibility depends on the installed Mark VIe firmware environment, rack addressing, and controller application settings.
The AEBI design supports I/O density scaling by allowing multiple field signal types to be processed through configured input channels. Firmware flash compatibility must be verified when replacing modules within an existing control rack.
Frequently Asked Questions
Q: What signal types are supported by the IS210AEBIH3BED? A: The module supports 4-20 mA, +/-10 V analog signals, RTD, thermocouple, LVDT, and dry contact inputs through isolated channels.
Q: What isolation function is provided by the module? A: The IS210AEBIH3BED provides field-to-logic galvanic isolation rated at 2.5 kV RMS to separate external signal circuits from internal controller electronics.
Q: Can the module be replaced while the Mark VIe system is energized? A: Hot-swap operation depends on the specific rack configuration and system maintenance procedure. Power removal and safety verification are required before physical replacement.
Field Installation Guidelines
Install the AEBI PCB in the assigned Mark VIe rack position according to the hardware configuration.
Confirm all field signal wiring matches the configured input channel assignments before energizing the system.
Route analog signal cables separately from high-voltage and high-current conductors to reduce electromagnetic interference.
Apply cable shielding and grounding according to site electrical standards.
Verify connector engagement and mechanical mounting before controller startup.
Confirm I/O configuration parameters after installation to ensure correct signal scaling and channel operation.
