Description
Product Overview

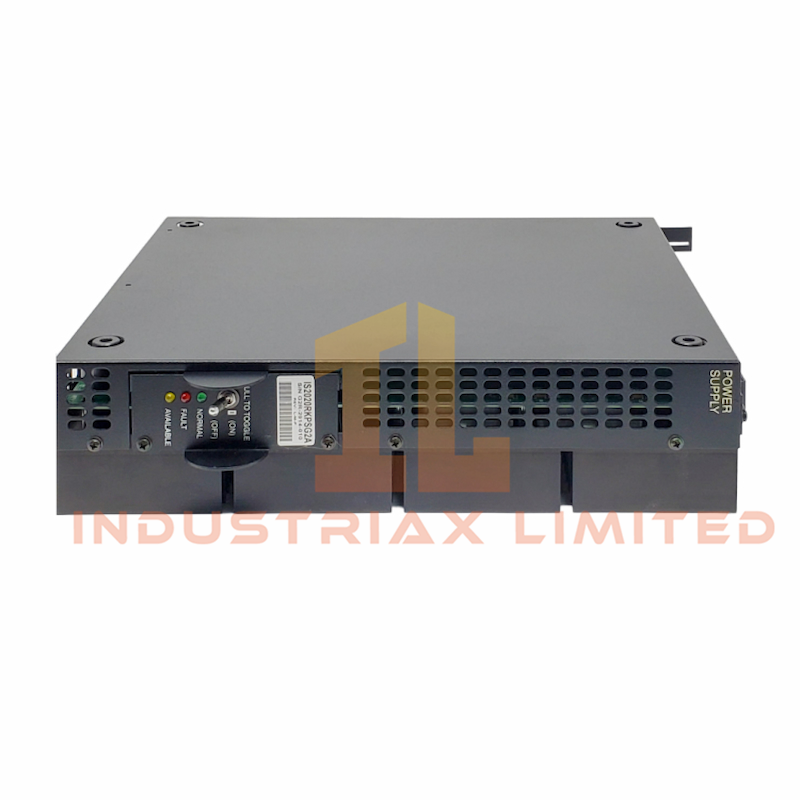

The GE IS2020RKPSG2A VME Rack Power Supply Module is engineered for the Mark VI System, delivering regulated power to control and interface racks. It mounts on the right side of the VME rack using a sheet metal bracket and connects via PSA and PSB harnesses.
This module supplies +5, ±12, ±15, and ±28 Vdc to the VME backplane. It also offers an optional 335 Vdc output for flame detector circuits connected to TRPG. The unit supports two input voltage options: 125 Vdc from a Power Distribution Module (PDM) or a low-voltage 24 Vdc version.
Each of the five internal 28 Vdc modules powers a specific rack section labeled A through F. The P28C output can also support external peripherals when configured via jumper settings. A fan connector powers cooling only when a controller is installed.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Part Number |
IS2020RKPSG2A |
| Ordering Code |
IS2020RKPSG2A |
| Product Series |
Mark VI System |
| Description |
VME Rack Power Supply Module |
| Input Voltage |
125 Vdc |
| Total Output Power |
400 W |
| Output Voltages |
+5, ±12, ±15, ±28 Vdc, 335 Vdc (optional) |
| Dimensions |
26 cm × 18 cm × 8 cm |
| Weight |
7 kg |
| Rack Sections Supported |
A, B, C, D, E, F |
| External Output Option |
P28C / PS28 |
| Cooling Support |
Fan connector (controller required) |
Key Features
-
Supplies multiple regulated voltages to VME rack backplane
-
Offers optional 335 Vdc output for flame detection circuits
-
Supports 125 Vdc or 24 Vdc input configurations
-
Includes PSA and PSB connectors for rack power distribution
-
Provides jumper-based isolation for external device power
-
Compact 26×18×8 cm size fits standard VME rack brackets
-
Heavy-duty 7 kg build ensures stable rack mounting
-
Designed for high-reliability turbine control environments
Applications & Compatibility
The IS2020RKPSG2A module is ideal for turbine control systems requiring multi-voltage rack power distribution. It integrates seamlessly with Mark VI VME racks and supports flame detection, peripheral power, and controller cooling.
Compatible with:
-
GE Mark VI control and interface racks
-
TRPG flame detector circuits
-
External devices powered via P28C output
-
Systems requiring isolated or normal jumper configurations
