Description

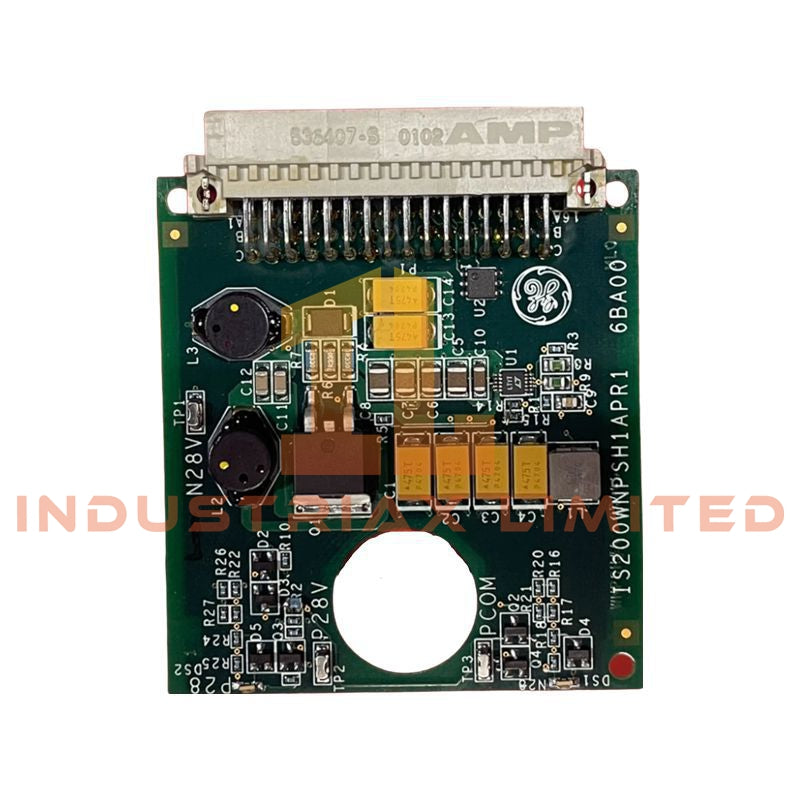

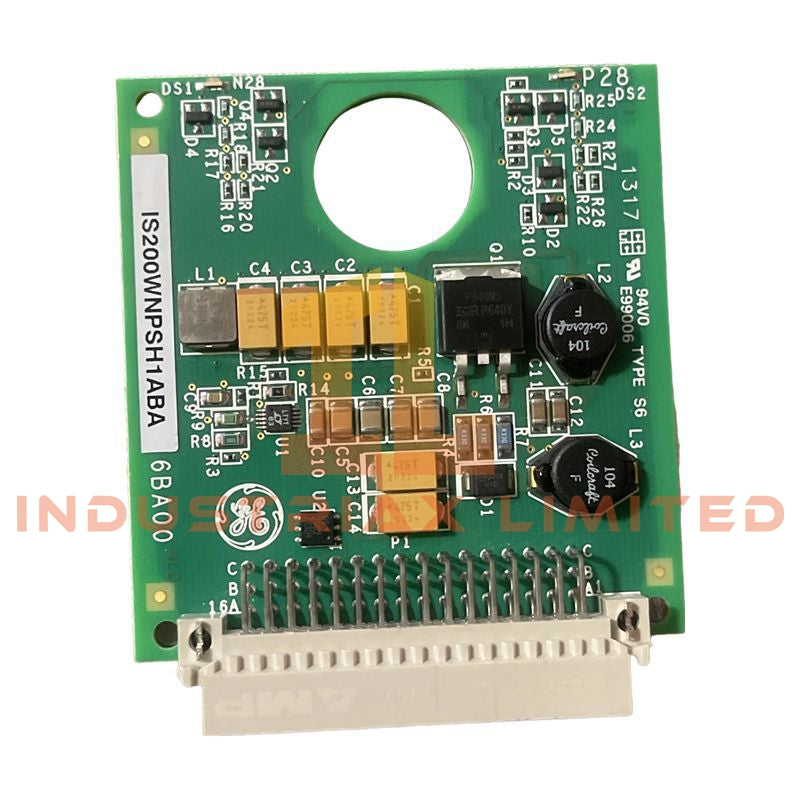

GE IS200WNPSH1A Power Supply Module

Configured for regulated DC power distribution in GE Mark VI/Mark VIe turbine control systems, the GE IS200WNPSH1A (IS200WNPSH1A Power Supply Module) provides direct electrical execution for supplying isolated 24 VDC and +/-28 VDC power rails to controller, I/O, and signal conditioning circuits.

Hardware Specifications

Parameter	Specification
Model	IS200WNPSH1A
Brand	GE
Origin	United States
Weight	0.45 kg
Dimensions	120 x 150 x 45 mm
Operating Temp	-30 deg C to +65 deg C
Power Consumption	Output power up to 240 W
Module Type	Power Supply Module
System Platform	GE Mark VI / Mark VIe turbine control system
Input Voltage	24 VDC nominal, 18-32 VDC range via backplane
Output Voltage	+/-28 VDC at 400 mA per rail or regulated 24 VDC up to 10 A
Voltage Regulation	+/-1%
Isolation	2500 V AC input-output, 1500 V AC output-ground
Protection Functions	Over-voltage, over-current, short-circuit, reverse polarity, thermal shutdown
Cooling Method	Convection cooling through PCB thermal vias
Form Factor	VME daughterboard or DIN rail mounting configuration
MTBF	>500,000 hours (Telcordia SR-332)

Industrial Control Power Architecture

The IS200WNPSH1A operates as a GE industrial control power module supporting deterministic power delivery within Mark VI/Mark VIe architectures. The module provides regulated DC outputs for analog I/O circuits, controller assemblies, network devices, and field interface components.

The module supports PLC/DCS-style power distribution requirements with controlled output regulation and protection circuits. Its design enables I/O density scaling by providing stable DC rails for multiple connected control modules while maintaining electrical isolation between input and output sections.

Firmware flash compatibility and controller hardware configuration must be verified when integrating the power module into existing Mark VI/Mark VIe assemblies. The module communicates operational status through onboard indicators and fault monitoring interfaces.

Frequently Asked Questions

Q: What DC outputs are provided by the IS200WNPSH1A power supply module?
A: The module provides +/-28 VDC outputs for analog and precision circuits or regulated 24 VDC output depending on the installed system configuration.

Q: Does the IS200WNPSH1A support redundant power input operation?
A: The module supports dual independent input architecture with automatic switching functions for maintaining DC supply continuity during input disturbances.

Q: What protection functions are included in the power supply design?
A: The module includes over-voltage, over-current, short-circuit, reverse polarity, and thermal shutdown protection circuits.

Field Installation Guidelines

Install the IS200WNPSH1A module according to the GE Mark VI/Mark VIe cabinet hardware layout and power distribution requirements. Verify connector seating, backplane alignment, and DC polarity before energizing the assembly.

Use properly rated DC wiring and maintain separation between power conductors and low-level analog signal cables. Ground cable shields according to the cabinet grounding design to reduce electromagnetic interference.

Before operation, confirm input voltage range, output rail assignment, and connected load requirements. Check LED status indicators and system diagnostics after installation to verify correct power distribution.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
