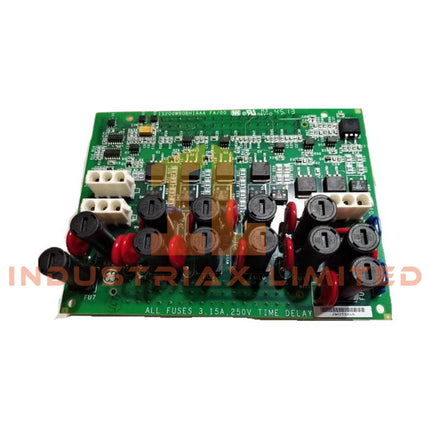

GE IS200WETBJ1ABA EX2100 Wet Bridge Terminal Board

The GE IS200WETBJ1ABA, also cataloged as the IS200WETBJ1ABA Wet Bridge Terminal Board, operates as a dedicated hardware component for bridge feedback signal interface and protection signal transfer within GE EX2100 excitation control systems. It connects exciter power bridge circuits with EMIO and DSPX control modules.

Hardware Specifications

Parameter	Specification
Model	IS200WETBJ1ABA
Brand	GE (General Electric)
Origin	United States
Weight	1 lbs
Operating Temp	-30 deg C to +65 deg C
Series	EX2100 Excitation Control System
Product Type	Wet Bridge Terminal Boards
Board Type	Wet Bridge Terminal Board
Mounting	Rack-mounted, interfaces with exciter bridge
Input Signals	Generator field current feedback, exciter bridge voltage sensing
Output Signals	Conditioned signals to EMIO and DSPX boards
Protection Functions	Overcurrent detection and ground fault monitoring
Indicators	LED status for bridge signals
Humidity Range	5%-95% non-condensing
PCB Protection	Conformal coating for dust, moisture, and chemical resistance

Profinet / EtherNet-IP Deterministic Network Integration

The IS200WETBJ1ABA provides the electrical interface between GE EX2100 exciter bridge hardware and control electronics. The board receives generator field current feedback and exciter bridge voltage sensing signals, then conditions these signals for processing by EMIO and DSPX controller boards.

The module supports coordinated signal exchange within the EX2100 excitation architecture by maintaining defined interfaces between power bridge circuits and digital control modules. Protection-related functions include overcurrent detection and ground fault monitoring signal transmission.

The conformal-coated PCB construction provides environmental protection against moisture, dust, and chemical contaminants. The board operates as a hardware signal interface layer and does not perform application-level control execution.

Frequently Asked Questions

Q: What signals are connected through the IS200WETBJ1ABA?
A: The board interfaces generator field current feedback, exciter bridge voltage sensing, and protective monitoring signals between bridge hardware and control modules.

Q: Which EX2100 modules receive processed signals from this terminal board?
A: The board provides conditioned signals to EMIO and DSPX boards within the EX2100 excitation control system.

Q: What mounting arrangement is used for the WETB board?
A: The IS200WETBJ1ABA is installed as a rack-mounted PCB module within the exciter cabinet and interfaces with exciter bridge assemblies.

Field Installation Guidelines

Install the IS200WETBJ1ABA in the designated GE EX2100 exciter cabinet location and verify mechanical alignment before connecting field and control wiring.

Inspect board connectors, terminal interfaces, and PCB surfaces for contamination or physical damage before installation. Maintain proper cabinet grounding and follow excitation system wiring practices for feedback and protection circuits.

Route current feedback, voltage sensing, and protective signal wiring separately from high-current power conductors where possible to reduce electromagnetic interference. Connect cable shields according to the cabinet grounding design.

Before operation, verify EMIO and DSPX interface connections, LED status indications, and feedback signal continuity during commissioning procedures.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
