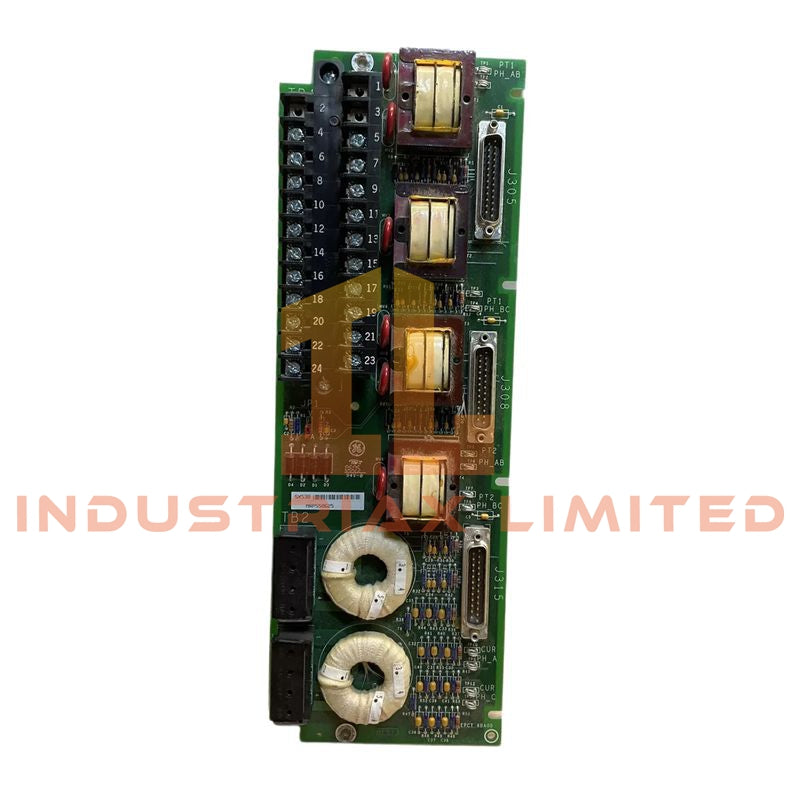

GE IS200WEMAH1AWA Wind Exciter Main Board

The GE IS200WEMAH1AWA, also cataloged as the IS200WEMA Wind Exciter Main Board, operates as a dedicated hardware component for excitation signal processing and generator field control within GE EX2100e Excitation Control System platforms.

Hardware Specifications

Parameter	Specification
Model	IS200WEMAH1AWA
Brand	GE Industrial Systems
Origin	USA
Weight	0.95 kg
Dimensions	160 mm x 100 mm x 20 mm
Operating Temp	-30 to +65 deg C
Power Consumption	5 VDC logic supply, 24 VDC field supply
Product Type	Exciter Control Boards
Series	EX2100e Excitation Control System
Functional Acronym	WEMA
Input Signals	Analog voltage/current feedback and digital control signals
Output Signals	Exciter drive signals and communication bus
Communication Interface	Fiber-optic serial link and Ethernet
Isolation	2500 Vrms optocoupler isolation
PCB Protection	H1AWA conformal coating
Response Time	Less than 1 ms
Compliance	CE, UL, IEC compliance

Deterministic Control Communication and Excitation Processing

The IS200WEMAH1AWA integrates GE industrial control functions for excitation regulation, signal conditioning, and communication processing within the EX2100e architecture. The board receives analog feedback signals and digital control commands, processes excitation parameters, and transfers control information through fiber-optic and Ethernet communication interfaces.

GE control platforms require deterministic communication timing and controlled I/O processing between controller assemblies and excitation modules. The WEMA board supports firmware flash compatibility within EX2100e configurations and maintains defined communication paths for excitation system operation.

The board design includes optocoupler isolation and separate logic and field power domains. Fiber-optic communication reduces electrical noise coupling between connected assemblies, while conformal coating provides PCB protection for industrial cabinet environments.

Frequently Asked Questions

Q: What communication interfaces are available on the IS200WEMAH1AWA?
A: The board supports fiber-optic serial link communication and Ethernet interfaces for EX2100e system data exchange.

Q: What power supplies are required for the WEMA board?
A: The module requires a 5 VDC logic supply and a separate 24 VDC field supply connection.

Q: What isolation method is used on the IS200WEMAH1AWA?
A: The board uses optocoupler isolation with a rated separation of 2500 Vrms between designated circuits.

Field Installation Guidelines

Install the IS200WEMAH1AWA in the designated EX2100e exciter rack position and verify correct alignment with the backplane connectors before energizing the system.

Maintain separation between signal wiring, fiber-optic communication cables, and high-current power conductors. Inspect fiber connectors before installation and avoid excessive mechanical stress on optical cable assemblies.

Connect the 5 VDC logic supply and 24 VDC field supply according to the system wiring documentation. Configure communication channels and board parameters through ToolboxST software before enabling excitation control functions.
