Description

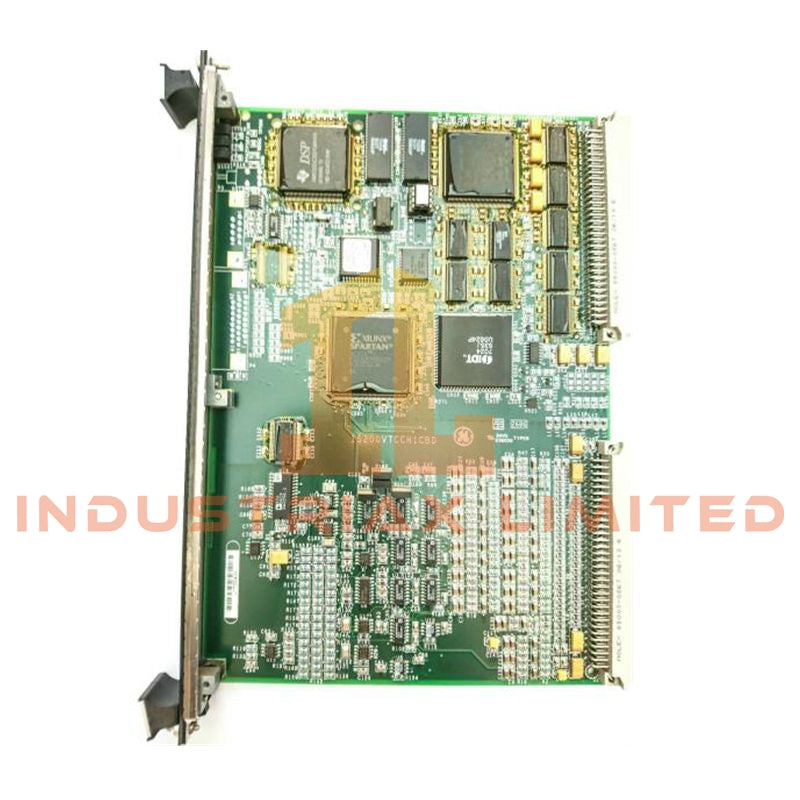

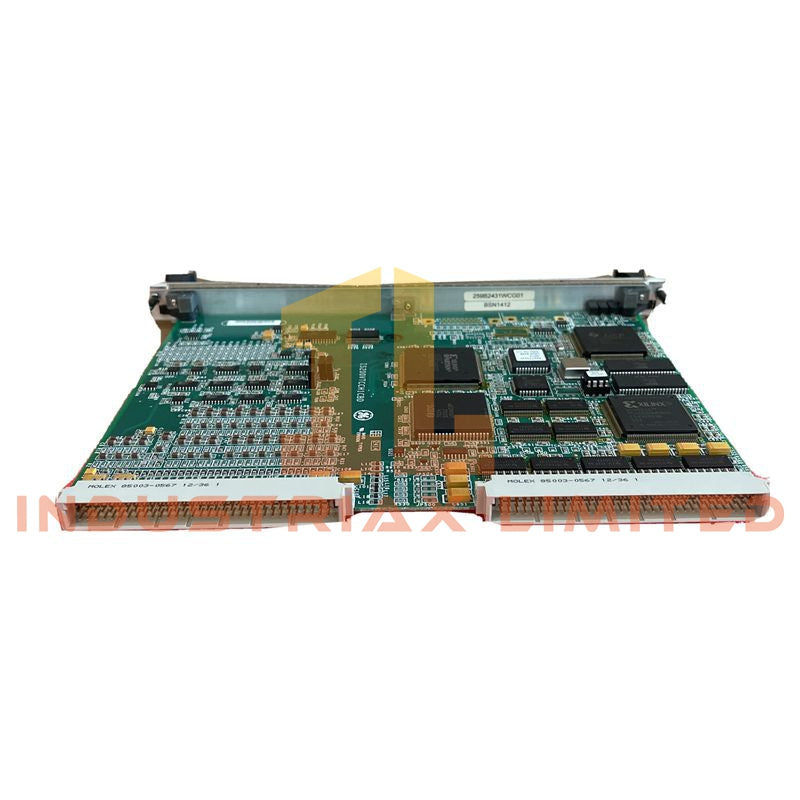

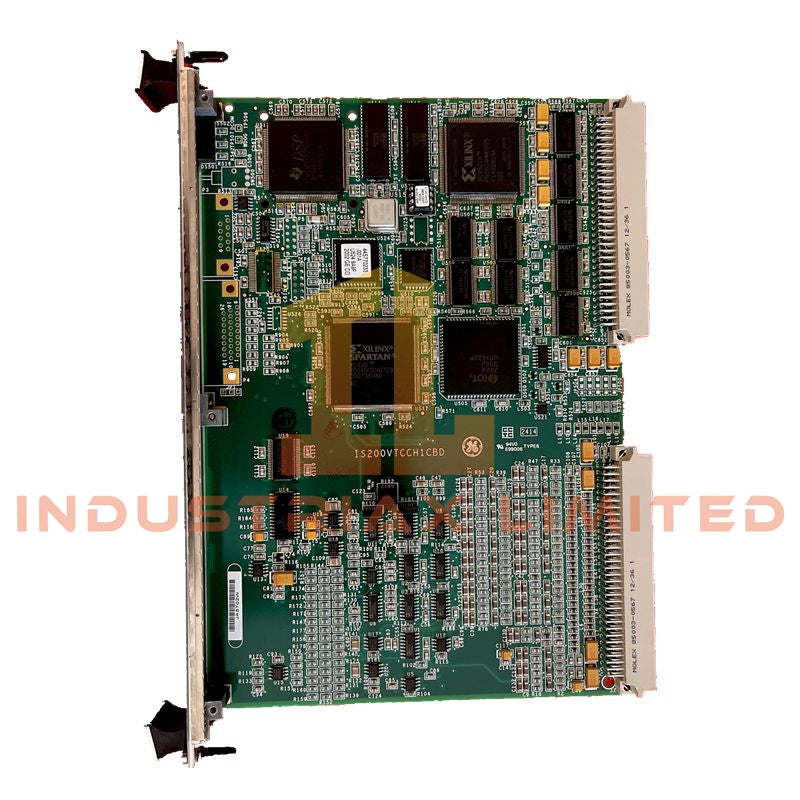

The GE IS200VTCCH1CBB, also cataloged as the IS200VTCC Thermocouple Input Board, operates as a dedicated hardware component for thermocouple temperature signal acquisition within the GE Mark VI Speedtronic turbine control system. The board receives E, J, K, S, and T thermocouple inputs, performs signal linearization and cold-junction compensation, and transfers processed temperature data through the VME rack interface.

Hardware Specifications

Parameter	Specification
Model	IS200VTCCH1CBB
Brand	GE
Origin	United States
Weight	0.45 kg
Dimensions	2.1 x 18.8 x 26.2 cm
Operating Temp	-40 deg C to +85 deg C
Power Consumption	24 VDC chassis supply input
Product Type	Thermocouple Input Board
System Platform	GE Mark VI Speedtronic Turbine Control System
Thermocouple Inputs	24 channels, grounded or ungrounded
Supported Thermocouple Types	E, J, K, S, T
Input Range	-8 mV to +45 mV
A/D Resolution	16-bit conversion
Cold-Junction Compensation	Dual references per board; six references in TMR configuration
Accuracy	+/-0.1% of full scale
Signal Filtering	High-frequency noise suppression filtering
Cable Distance	Up to 300 m
Mounting Interface	VME rack integration, compatible terminal boards
Protection Features	Conformal coating and overvoltage/current protection

Firmware Flash Compatibility and VME Signal Processing

The GE IS200VTCCH1CBB performs thermocouple signal conditioning through onboard analog conversion and digital processing functions. The module supports GE Mark VI controller communication through the VME backplane interface, enabling temperature data transfer between field input terminals and control processors. The board architecture supports simplex operation with TBTCH1C terminal boards and redundant configurations using TBTCH1B terminal boards for TMR signal acquisition.

The input processing circuit provides automatic signal validation, hardware limit checking, and filtered temperature measurement. The thermocouple channels support long-distance field wiring while maintaining compensated measurement values through integrated cold-junction reference circuits.

Frequently Asked Questions

Q: How many thermocouple channels are supported by the IS200VTCCH1CBB?
A: The board supports 24 thermocouple input channels with E, J, K, S, and T type thermocouple compatibility.

Q: What is the function of the cold-junction compensation circuit?
A: The cold-junction compensation circuit corrects the reference junction temperature effect to maintain thermocouple measurement accuracy. The board provides dual references in standard operation and additional references when configured in TMR mode.

Q: Can the IS200VTCCH1CBB operate in redundant turbine control configurations?
A: The board supports redundant operation when paired with compatible TMR terminal boards such as TBTCH1B within the GE Mark VI control architecture.

Field Installation Guidelines

Install the IS200VTCCH1CBB in the designated GE Mark VI VME rack position according to the system hardware configuration. Verify terminal board compatibility before connecting thermocouple field wiring.

Use shielded thermocouple cables where required by site electrical practices. Connect cable shields according to the grounding scheme defined for the turbine control cabinet to reduce electromagnetic interference. Separate thermocouple wiring from high-current power conductors and switching circuits to minimize induced noise.

Confirm thermocouple polarity, channel assignment, and terminal connections before system commissioning. Check that field cable routing, grounding, and terminal board installation meet the applicable GE Mark VI hardware documentation requirements.
