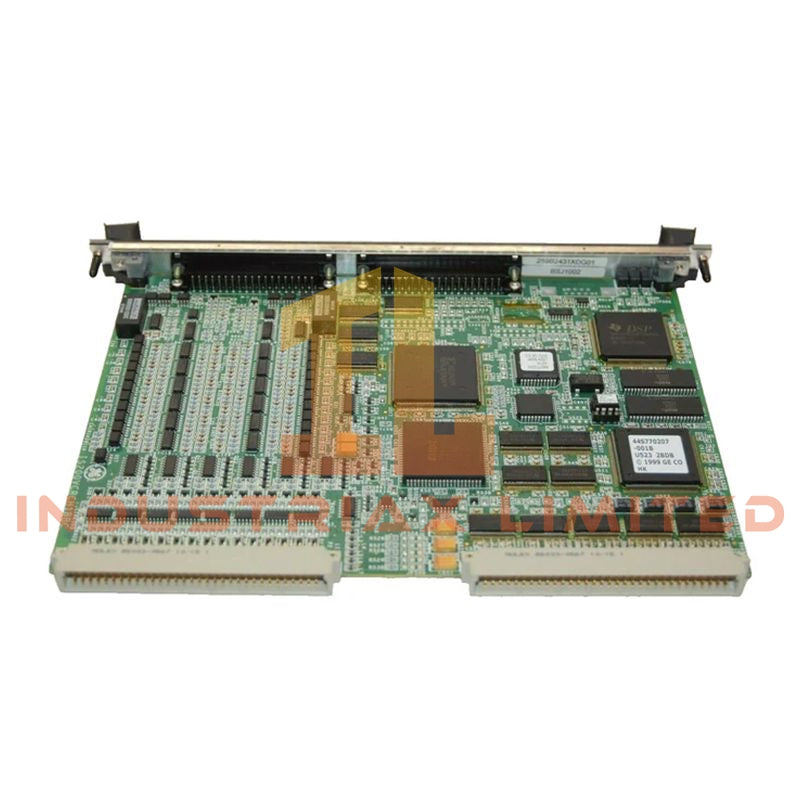

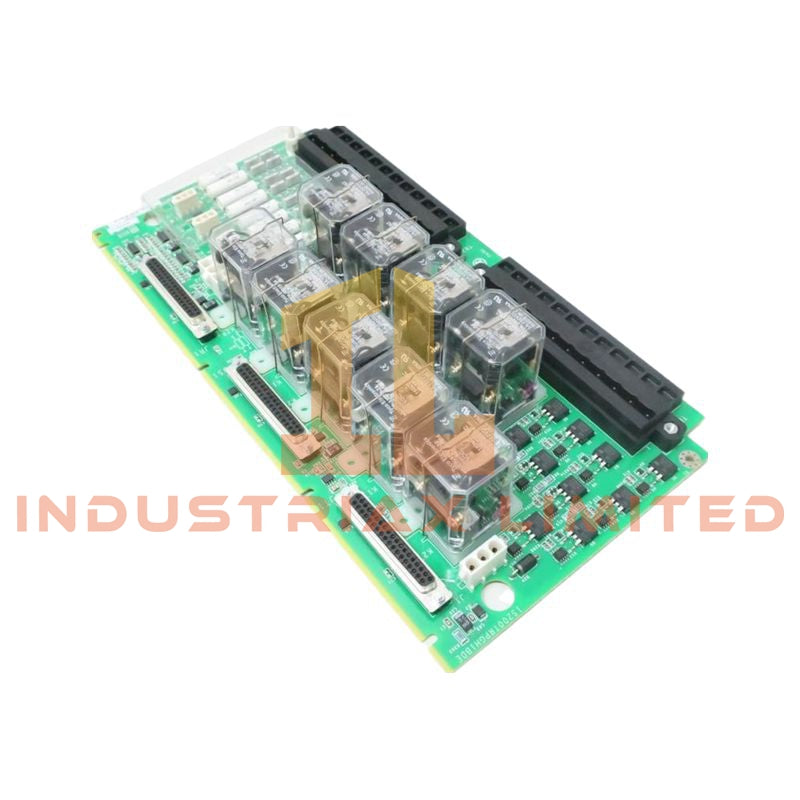

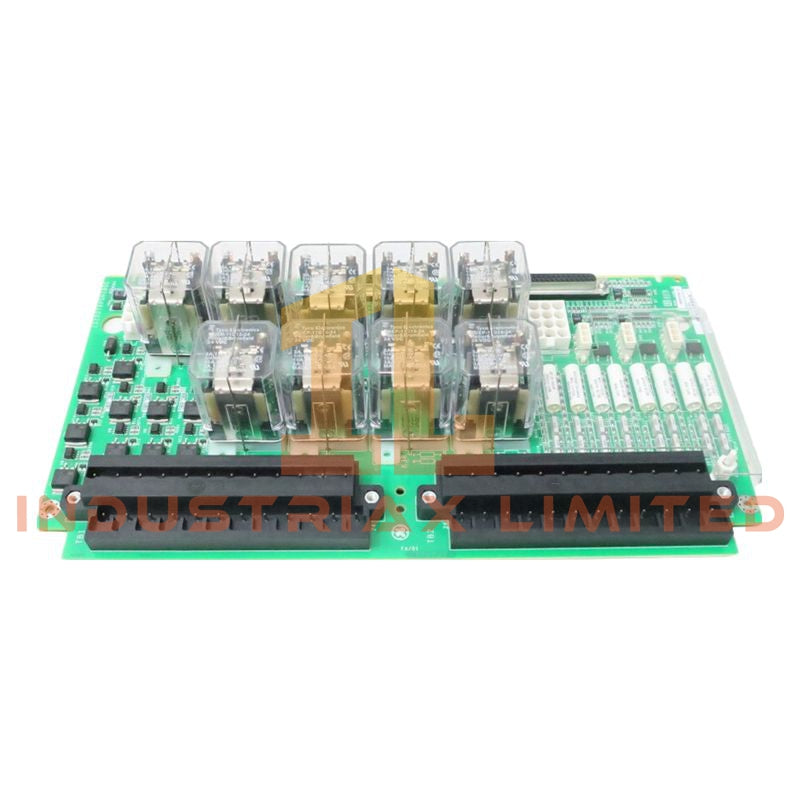

GE IS200VCRCH1BBB Voltage Control and Regulation Card

The GE IS200VCRCH1BBB, also cataloged as the IS200VCRC Voltage Control and Regulation Card, operates as a dedicated hardware component for generator voltage regulation and discrete signal processing within GE Mark VI Speedtronic control systems. The VME-based board manages field feedback signals, control outputs, and relay interface functions through rack communication paths.

Hardware Specifications

Parameter	Specification
Model	IS200VCRCH1BBB
Brand	General Electric (GE)
Origin	United States of America (USA)
Product Type	Voltage Control and Regulation Card / Discrete Input Output Board
Series	Mark VI Speedtronic Control System
Board Type	VME-based Voltage Control and Regulation Card
Weight	1 lbs
Dimensions	26.04 cm high x 1.99 cm wide x 18.73 cm deep
Operating Temp	0 to 60 deg C
Number of Channels	48 discrete channels
Response Time ON	25 ms maximum
Response Time OFF	25 ms maximum
Relay Contact Material	Silver cad-oxide
Mounting	VME rack slot installation
PCB Protection	Conformal coating

Profinet / EtherNet-IP Deterministic Control Interfaces

The IS200VCRCH1BBB is integrated into the GE Mark VI control architecture through VME rack communication. The module processes generator voltage feedback, current feedback, and discrete control signals between turbine control processors and excitation-related boards. Signal conditioning functions convert field inputs into control data suitable for DSPX and related control modules.

The board architecture supports I/O density scaling through multiple discrete channels and coordinated signal exchange across the Mark VI backplane. Firmware compatibility is managed according to the installed Mark VI hardware configuration and board revision.

Frequently Asked Questions

Q: What type of signals are processed by the IS200VCRCH1BBB?
A: The board processes generator voltage/current feedback signals and discrete input/output control signals associated with turbine and excitation control functions.

Q: What is the maximum relay response time of this module?
A: The specified maximum response time is 25 ms for both ON and OFF relay operations.

Q: How is the IS200VCRCH1BBB installed in a control system?
A: The module is installed in a VME rack slot and interfaces with compatible GE Mark VI control boards through the rack backplane.

Field Installation Guidelines

Install the IS200VCRCH1BBB in the designated Mark VI VME rack position with correct mechanical alignment of the board connector and rack guides. Verify that the backplane connector is clean and fully seated before applying power.

Route signal wiring separately from high-current switching conductors to reduce electrical interference. Maintain proper shielding practices for analog feedback wiring, with cable shields terminated according to system grounding requirements.

Before replacement or maintenance, remove system power and confirm that stored electrical energy has been discharged. Check LED status indicators after installation to verify board communication and fault conditions.
