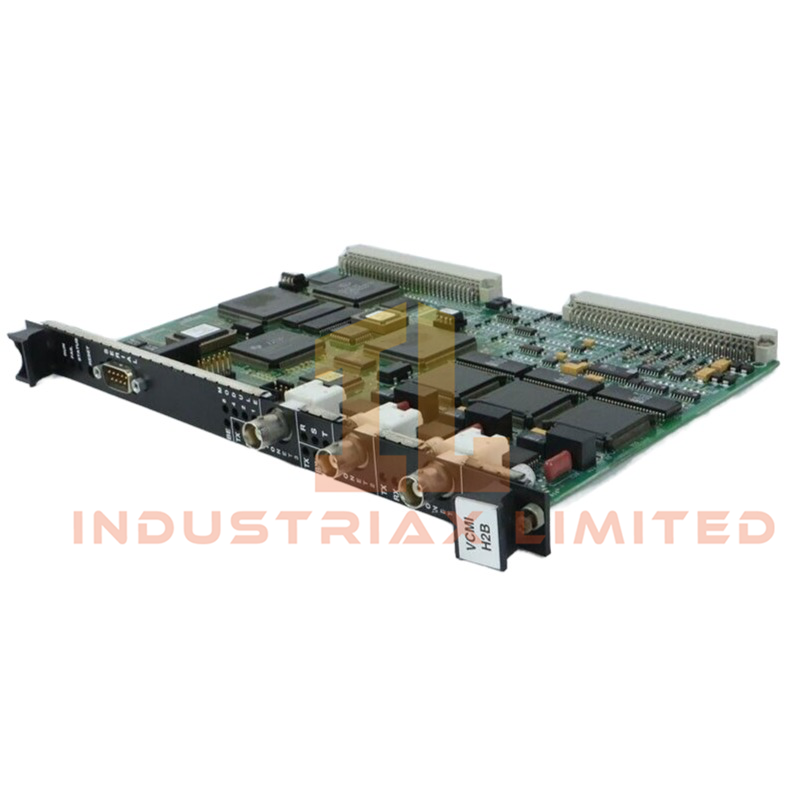

The IS200VCMIH2BCC from GE is a bus master controller board engineered for Mark VI control systems. It manages communication between the controller, I/O boards, and the IONet system network. This board also assigns IDs to all boards and terminal modules within the VME rack.
Each IS200VCMIH2BCC supports simplex and triple modular redundancy (TMR) configurations. In TMR setups, the board provides three independent IONet ports, enabling isolated communication channels for R, S, and T racks. It ensures synchronized data exchange across local and remote I/O racks.
Technical Specifications
| Specification |
Details |
| Manufacturer |
GE |
| Part Number |
IS200VCMIH2BCC |
| Ordering Code |
IS200VCMIH2B |
| Series |
Mark VI |
| Voltage |
28 V |
| Frame Rate |
40 ms (25 Hz) |
| Dimensions |
28 cm × 20 cm × 3 cm |
| Weight |
0.8 kg |
| IONet Ports |
3 Ethernet ports for R, S, T channels |
| System Configuration |
Supports simplex and TMR setups |
| Rack Integration |
VME control and I/O rack master |
Installation & Configuration
Mount the IS200VCMIH2BCC in the VME rack and connect it to the I/O boards and terminal modules. Use the three IONet ports to establish communication with local or remote I/O racks. The board supports multiple rack configurations and ensures consistent data flow across all channels.
This version operates at a 40 ms frame rate, suitable for systems requiring moderate-speed updates. It supports high-reliability applications with redundant communication paths.
Applications & Compatibility
The IS200VCMIH2BCC is ideal for turbine control, industrial automation, and distributed I/O systems. It integrates seamlessly with Mark VI architecture and supports both compact and large-scale configurations.
Use this board in environments requiring robust rack-level communication, board ID management, and multi-channel Ethernet networking. It ensures compatibility with legacy and modern I/O modules.
