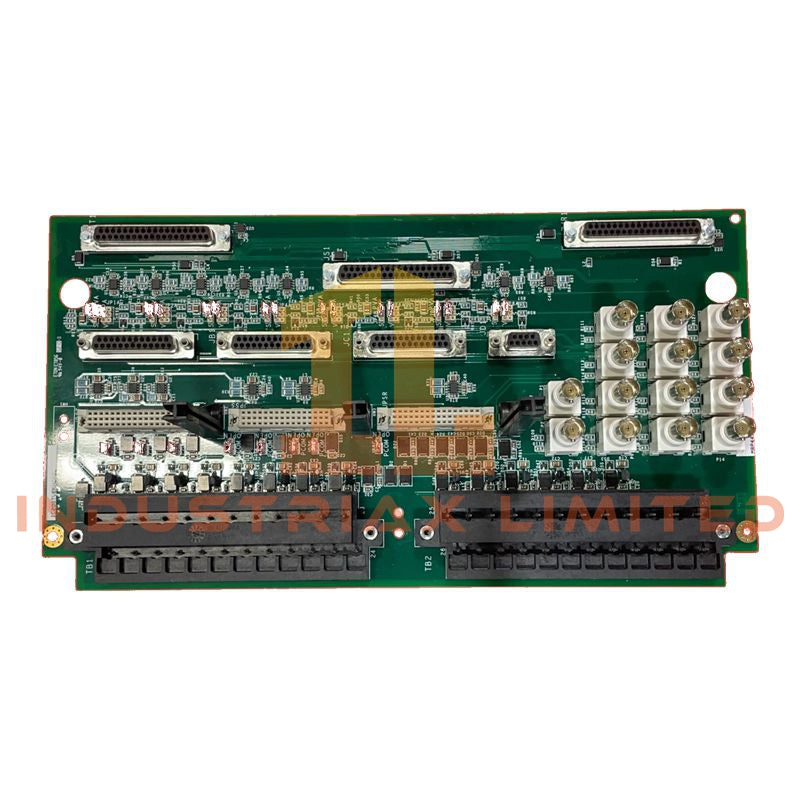

GE IS200TVBAH2B Seismic and Vibration Input Terminal Board

The GE IS200TVBAH2B, also cataloged as the IS200TVBA Seismic and Vibration Input Terminal Board, operates as a dedicated hardware component for vibration signal acquisition and sensor interface processing within GE Mark VIe turbine control platforms.

Hardware Specifications

Parameter	Specification
Model	IS200TVBAH2B
Brand	GE Industrial Systems
Origin	USA
Weight	0.99 kg
Dimensions	34.1 cm x 21.6 cm x 5.5 cm
Operating Temp	-40 to +70 deg C
Product Type	Vibration Input Terminal Boards
Series	Mark VI / Mark VIe Turbine Control System
Input Channels	8 vibration channels, 4 position channels, 1 Keyphasor input
Sensor Compatibility	Eddy-current probes, IEPE accelerometers, seismic velocity sensors, MPU Keyphasor
Input Voltage Range	10-30 VDC
Excitation Power	-24 VDC per channel, up to 12 mA
Isolation	2500 VAC galvanic isolation
Signal Conditioning	RC anti-aliasing filters and TVS surge suppression
Sampling Rate	Up to 20 kHz through PVIB I/O pack
Buffered Outputs	BNC, DB9, DB25 connectors
PCB Treatment	Acrylic conformal coating, H2B revision
Humidity Range	5-95% RH, non-condensing

Rotor Dynamics Signal Processing and Vibration Monitoring Interface

The IS200TVBAH2B provides vibration and position signal conditioning for GE Mark VIe turbine control architectures. The terminal board interfaces with PVIB I/O packs to process eddy-current probe signals, seismic sensor inputs, accelerometer signals, and Keyphasor timing references.

For rotating machinery monitoring applications, the board supports eddy-current probe scaling and gap voltage validation procedures. Eddy-current sensor installation requires verification of the probe gap condition, with typical calibration practices using a -10 VDC gap voltage target. The signal path includes filtering and surge suppression to reduce electrical interference affecting vibration measurements.

The TVBA module supports rotor dynamics monitoring by providing buffered outputs for external diagnostic equipment. Channel isolation and signal conditioning circuits reduce cross-talk between vibration measurement paths and maintain separation between sensor circuits and control interfaces.

Frequently Asked Questions

Q: What sensor types can be connected to the IS200TVBAH2B?
A: The board supports eddy-current probes, IEPE accelerometers, seismic velocity sensors, and MPU Keyphasor input devices.

Q: How is eddy-current probe calibration handled with this terminal board?
A: Eddy-current probe calibration requires verification of the probe gap voltage, commonly using a -10 VDC target during sensor setup procedures.

Q: What isolation method is provided for vibration input channels?
A: The terminal board provides 2500 VAC galvanic isolation between designated signal circuits and system interfaces.

Field Installation Guidelines

Install the IS200TVBAH2B in the designated Mark VIe vibration monitoring rack location and verify correct engagement of board connectors before system operation.

Terminate vibration sensor wiring according to the terminal assignment documentation. Maintain cable separation between low-level vibration signals and high-current power conductors to reduce electromagnetic interference. Connect cable shields according to chassis grounding practices without creating additional ground loops.

Verify sensor polarity, excitation wiring, and input channel assignments before calibration. For eddy-current probes, confirm mechanical mounting position and perform gap voltage validation before enabling vibration monitoring functions.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
