Description

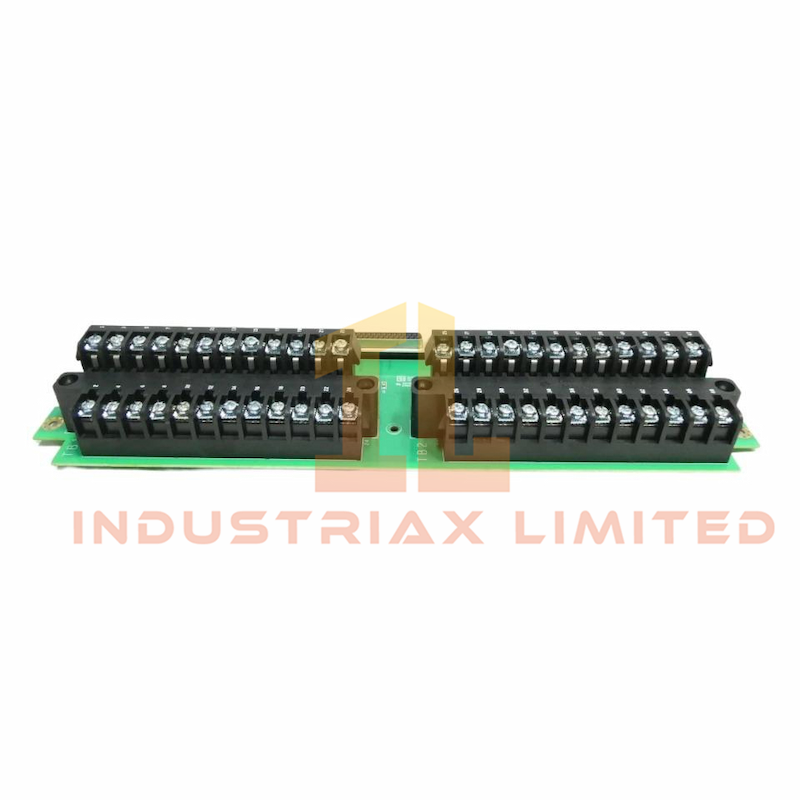

The GE IS200TRTDH1D RTD Input Terminal Board is designed to interface with up to 16 three-wire RTD sensors, providing accurate temperature signal acquisition for Mark VIe control systems. It supports simplex configurations and connects to two PRTD I/O packs, which convert analog RTD signals into digital values for controller processing. Integrated noise suppression circuitry ensures reliable performance in electrically noisy environments.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE |
| Series |
Mark VIe system |
| Part Number |
IS200TRTDH1D |
| Description |
RTD Input Terminal Board |
| Input Voltage |
24 Vdc |
| Current |
1 A |
| Dimensions |
177.8 mm × 330.2 mm × 20.3 mm |
| Weight |
0.3 kg |
| RTD Channels |
16 three-wire RTD inputs |
| Terminal Type |
Barrier-type blocks (2 units) |
| Compatibility |
Works with PRTD I/O packs |
| Filtering |
Standard scan rate compatible |
| Isolation |
Galvanic isolation via PRTD |
| Application Mode |
Simplex only |
Key Features
-
Accepts 16 RTD inputs via two barrier-type terminal blocks
-
Compatible with PRTD I/O packs for digital temperature conversion
-
Provides galvanic isolation and transient protection for RTD circuits
-
Integrated surge and high-frequency noise suppression circuitry
-
Supports simplex applications in Mark VIe control systems
-
Filtering optimized for standard scan rate performance
-
Compact and lightweight design for easy panel integration
