Description

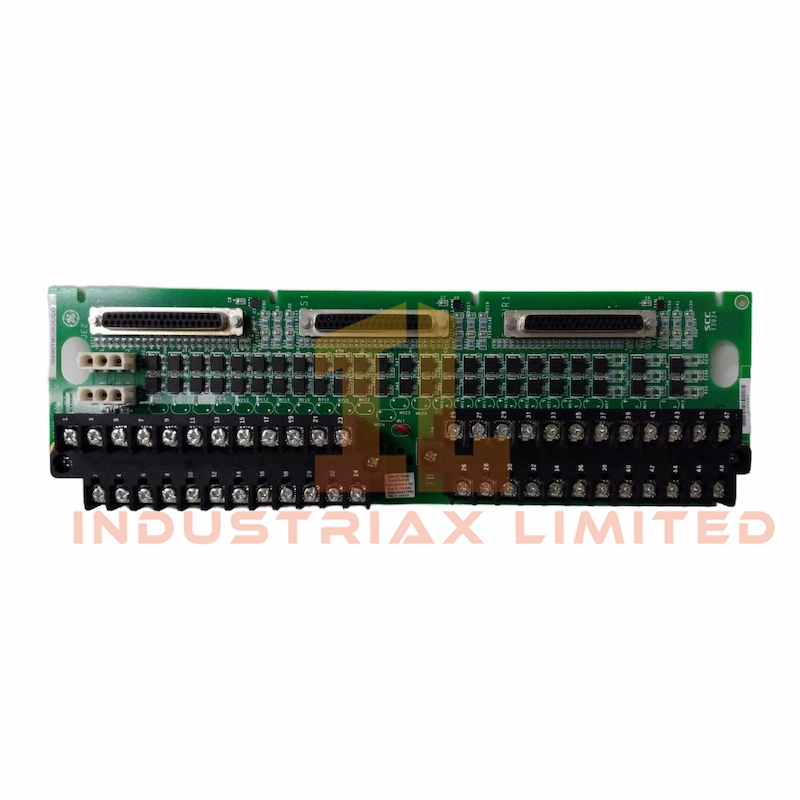

The GE IS200TBCIS2C Contact Input With Group Isolation Terminal Board is designed to handle 24 dry contact inputs with built-in surge and noise suppression. As part of the Mark VIe system, it supports Simplex, Dual, and Triple Modular Redundant (TMR) configurations, offering flexible integration for safety-critical applications. Its barrier-type terminal blocks and shielded grounding ensure robust field wiring and easy maintenance.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE |
| Series |
Mark VIe system |
| Part Number |
IS200TBCIS2C |
| Description |
Contact Input With Group Isolation Board |
| Input Voltage |
24 Vdc |
| Current |
1 A |
| Dimensions |
330 mm × 102 mm × 35 mm |
| Weight |
0.5 kg |
| Input Channels |
24 dry contact inputs |
| Terminal Type |
Barrier-type, unpluggable blocks |
| Wire Size |
Up to #12 AWG |
| Grounding |
Shield terminal strip to chassis ground |
| Redundancy Support |
Simplex, Dual, TMR via JR1, JS1, JT1 |
| Excitation Voltage |
Connected via JE1 and JE2 |
| Noise Protection |
Surge and high-frequency suppression |
Key Features
-
Accepts 24 dry contact inputs with group isolation
-
Two barrier-type terminal blocks simplify wiring and maintenance
-
Supports Simplex, Dual, and TMR configurations for flexible redundancy
-
Shield terminal strips ensure proper grounding and EMI protection
-
Noise suppression circuitry protects against surge and interference
-
DIN-rail compatible with side-mounting brackets for I/O packs
-
Ethernet connectivity supports one or two cables per I/O pack
