Description

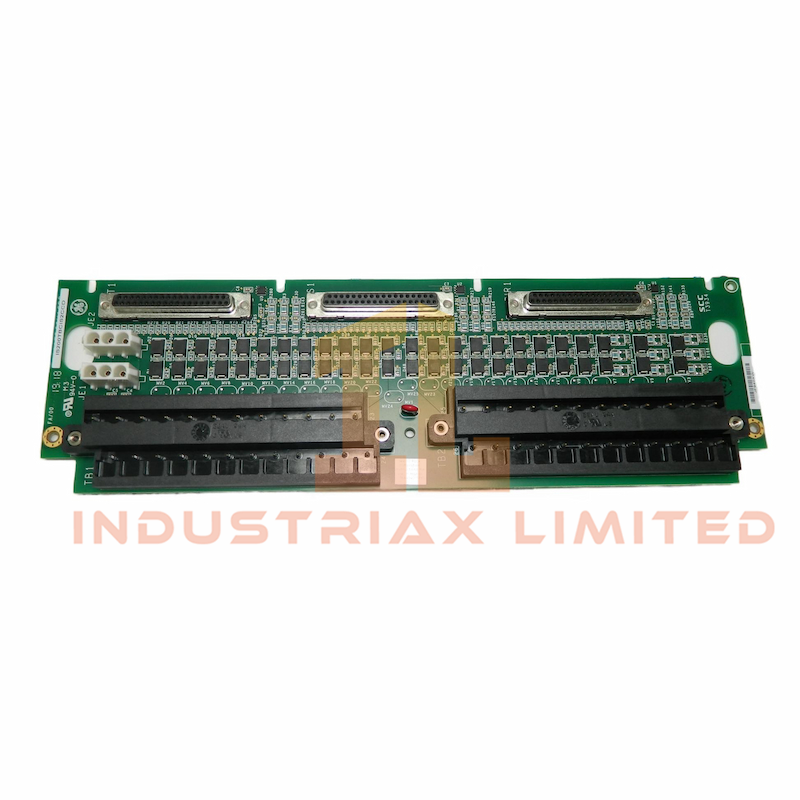

The GE IS200TBAIS1C Analog Input/Output Terminal Board is a compact and flexible module designed for Mark VIe control systems. It supports 10 analog inputs and 2 analog outputs, accommodating various transmitter configurations including two-wire, three-wire, four-wire, and externally powered types. With integrated noise suppression circuitry, the board ensures reliable signal integrity in high-interference environments. It supports both Simplex and Triple Modular Redundant (TMR) configurations, enabling scalable redundancy for critical control applications.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE |
| Series |
Mark VIe system |
| Part Number |
IS200TBAIS1C |
| Description |
Analog Input/Output Terminal Board |
| Input Voltage |
24 Vdc |
| Current |
1 A |
| Dimensions |
101.6 mm × 330.2 mm × 23 mm |
| Weight |
0.3 kg |
| Analog Inputs |
10 channels (2W/3W/4W/external power) |
| Analog Outputs |
2 channels (0–20 mA; 0–200 mA with PAICH2) |
| Connectors |
3 × DC-37 pin for TMR; JR1 for Simplex |
| Signal Protection |
Surge and high-frequency noise suppression |
| Output Regulation |
Shunt-based current measurement for TMR |
Key Features
-
Supports multiple analog input configurations for flexible transmitter integration
-
Two analog outputs configurable for 0–20 mA or 0–200 mA (with PAICH2)
-
TMR mode fans input signals to R, S, and T I/O packs for redundancy
-
Combines output currents via shunt for precise regulation in TMR setups
-
Simplex mode supported via single JR1 connector
-
Compact and lightweight design for efficient panel integration
-
Built-in noise suppression ensures stable signal acquisition
