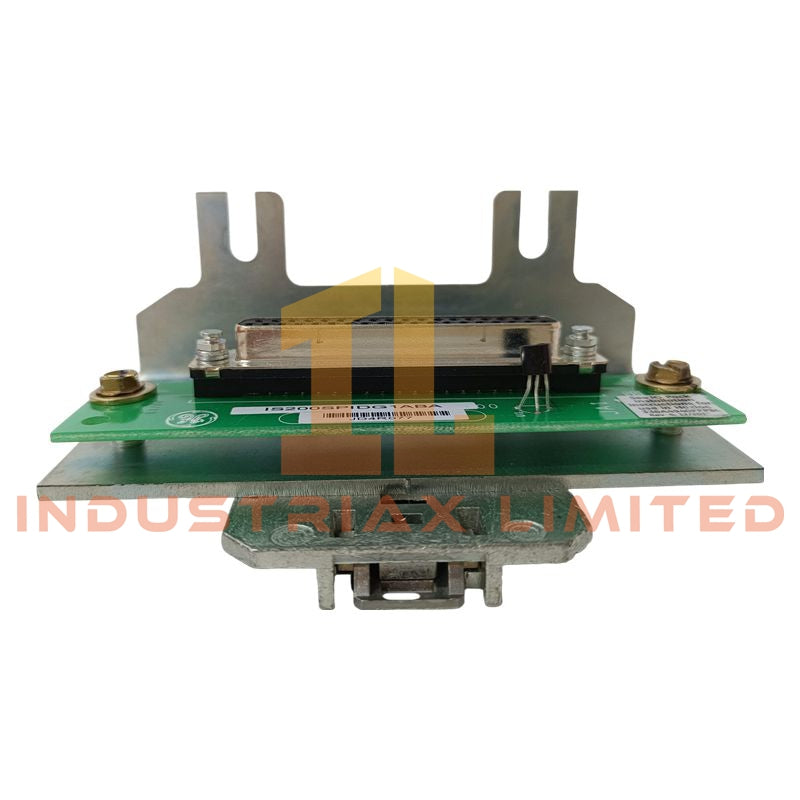

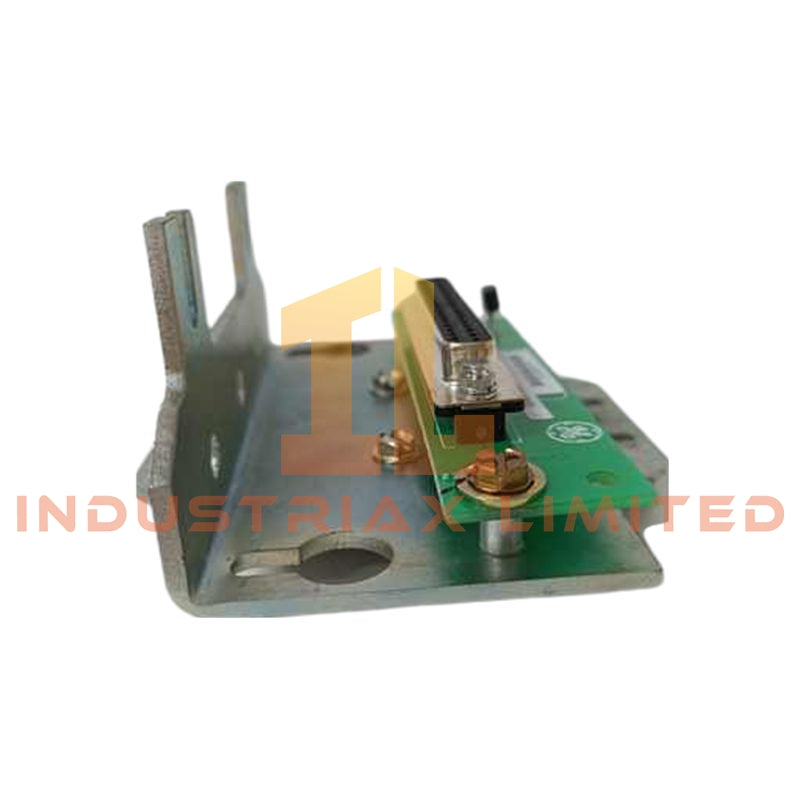

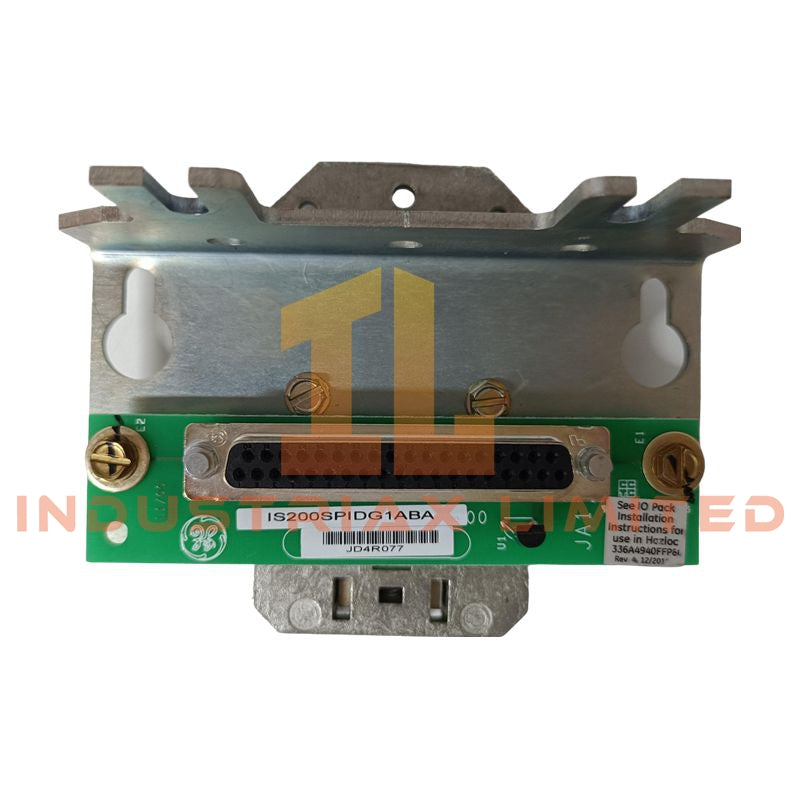

GE IS200SPIDG1ABA PID Control & Analog I/O Pack
Configured for onboard PID loop execution and mixed-signal acquisition in GE Mark VIe control architecture, the GE IS200SPIDG1ABA (IS200SPIDG1ABA PID Control & Analog I/O Pack) provides direct analog signal conditioning, closed-loop control computation, and discrete I/O interfacing within a simplex distributed turbine control segment.
The module executes up to four independent PID loops locally using 16-bit conversion channels, reducing dependency on central controller scan cycles while maintaining deterministic analog-to-digital and digital-to-analog conversion timing across its I/O boundary interface.
Hardware Specifications
| Parameter |
Specification |
| Model |
IS200SPIDG1ABA |
| Brand |
GE |
| Origin |
USA |
| Weight |
1.27 kg |
| Dimensions |
178 mm x 101 mm x 76 mm |
| Operating Temp |
-30 deg C to +65 deg C |
| Power Consumption |
24/28 VDC logic supply |
| Analog Inputs |
8 channels (4–20 mA, 0–10 V, ±10 V) |
| Analog Outputs |
4 channels (4–20 mA isolated) |
| Discrete I/O |
4 channels (24 VDC configurable) |
| PID Loops |
Up to 4 onboard |
| Resolution |
16-bit A/D and D/A |
| Update Rate |
~10 ms PID scan cycle |
| Isolation |
500 VAC channel-to-channel and backplane |
| Mounting |
DIN rail TS-35 / panel mount |
| Diagnostics |
Wire-break, range check, PID saturation alarms |
GE Mark VIe Backplane Communication and I/O Deterministic Execution Behavior
The IS200SPIDG1ABA integrates into the Mark VIe distributed control network where analog acquisition and PID computation are executed at the I/O pack level rather than centralized controller scan execution. This reduces backplane update dependency for fast-changing process variables such as fuel gas pressure and lube oil temperature regulation loops.
Signal acquisition paths are routed through 16-bit conversion stages with channel-level isolation up to 500 VAC, reducing cross-channel coupling during simultaneous multi-loop operation. PID loop execution is synchronized to a local ~10 ms scan cycle, with output updates pushed to isolated 4–20 mA DAC stages. Backplane communication is limited to configuration exchange, diagnostics reporting, and setpoint synchronization over deterministic Ethernet-based control links.
Frequently Asked Questions (FAQ)
Q: Can the IS200SPIDG1ABA execute PID loops independently of the main controller?
A: Yes. PID loops are executed locally within the I/O pack, reducing dependency on central controller scan timing while maintaining setpoint synchronization via backplane communication.
Q: What happens if a channel enters saturation or wire-break condition?
A: The module generates diagnostic flags and isolates the affected measurement or output path without interrupting other active PID loops.
Q: Is the module suitable for redundant configurations?
A: The device is simplex by architecture. Redundancy, if required, must be implemented at system level rather than within the I/O pack.
Field Installation Guidelines
Install the module on a TS-35 DIN rail or approved panel mount surface with verified grounding continuity. Maintain segregation between analog signal wiring and discrete 24 VDC switching lines to minimize induced noise coupling. Shielded cables should be grounded at a single cabinet reference point to avoid ground loop formation. Ensure full connector seating and mechanical locking before energization. Avoid routing high-current conductors parallel to analog input lines over extended distances. Cabinet environmental conditions must remain within specified temperature and humidity limits to prevent drift in analog conversion accuracy.
