Description

Overview

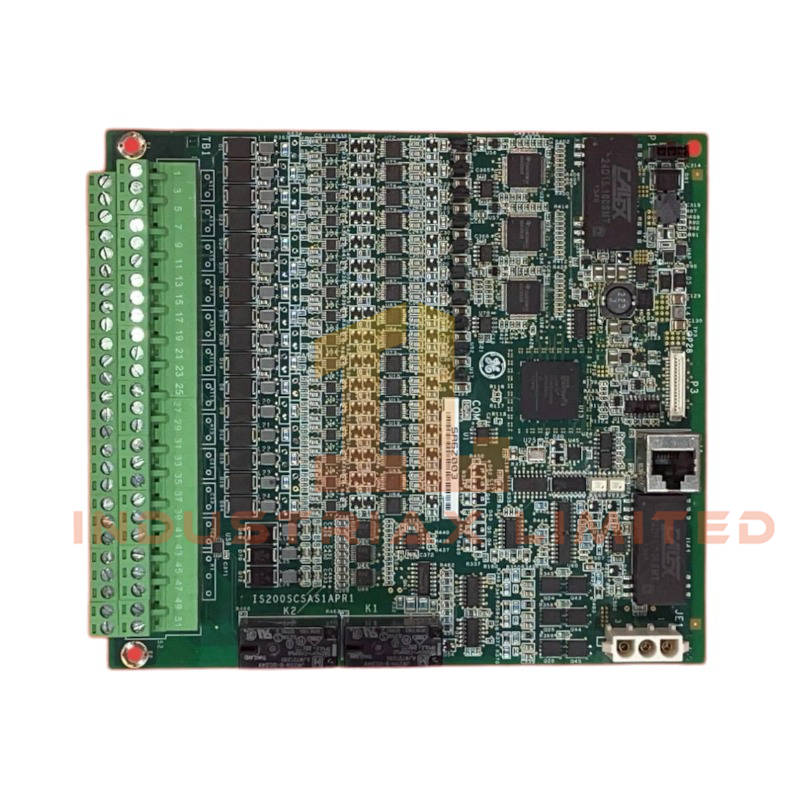

The IS200SCSAS1A I/O Expansion Board from GE enhances input capacity for the Mark VIeS Control System. It connects to the TCSA terminal board via serial links and supports the YSIL module with a wide range of input and output channels.

Technical Specifications

Specification	Detail
Manufacturer	GE
Part Number	IS200SCSAS1A
Product Series	Mark VIeS Control System
Voltage	24 Vdc
Current	1A
Dimensions	18 cm × 18 cm × 2 cm
Weight	0.2 kg
Analog Inputs	10 × 4–20 mA
Transmitter Power Outputs	10 × 24 Vdc
External Analog Inputs	6 × 4–20 mA
Thermocouple Inputs	3 channels
Contact Inputs	3 channels
Contact Outputs	3 channels
Interface Type	Serial link to TCSA

Key Features

• Supports multiple input types including analog, thermocouple, and contact signals.

• Provides transmitter power outputs for field devices at 24 Vdc.

• Enables ETR logic integration using TMR input sets.

• Compact 0.2 kg board fits easily into control cabinets.

• Connects directly to TCSA terminal board via serial interface.

Specifications

• Dimensions: 18 cm × 18 cm × 2 cm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
