Description

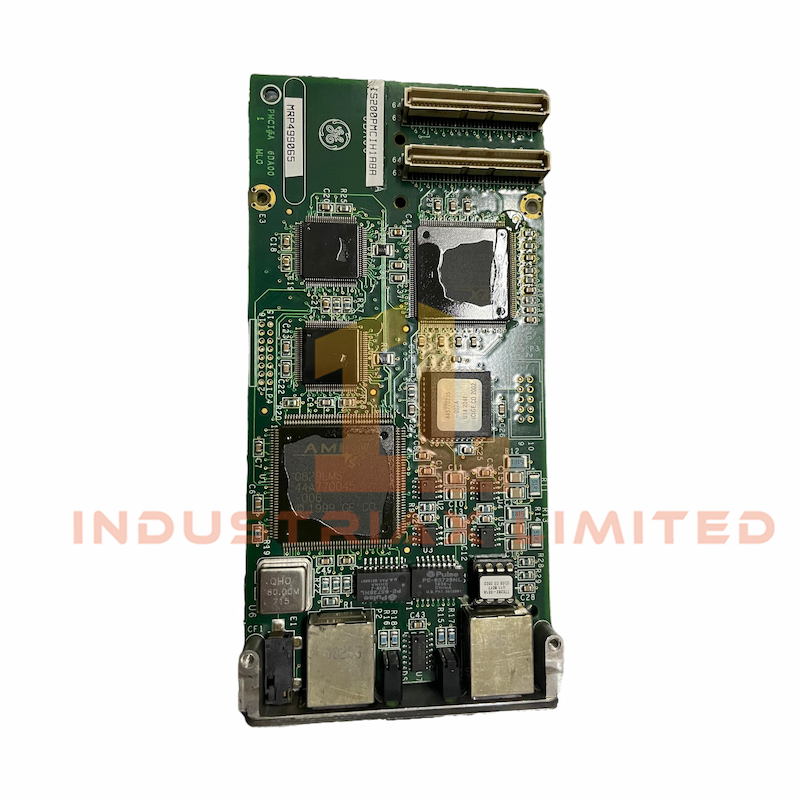

The GE IS200PMCIH1A PCI Mezzanine Card is a compact, high-functionality module designed for Mark VI control systems. It provides essential controller hardware capabilities including power supply monitoring, flash-backed SRAM, and IONet Ethernet communication. The board also supports Ethernet physical layer packet snooping, enabling precision time synchronization across distributed control networks. It plugs into a PMC site and communicates with the processor board via a PCI Rev 2.2 compliant interface, supporting both 3.3 V and 5 V signal levels.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE |
| Series |
Mark VI Control System |
| Part Number |
IS200PMCIH1A |
| Description |
PCI Mezzanine Card |
| Input Voltage |
24 Vdc |
| Current |
1 A |
| Dimensions |
240 mm × 160 mm × 30 mm |
| Weight |
0.3 kg |
| PCI Compliance |
PCI Rev 2.2 (3.3 V and 5 V signals) |
| Key Functions |
Power monitoring, SRAM, IONet, time sync |
Key Features
-
Monitors power supply status for enhanced system reliability
-
Includes flash-backed SRAM for secure data retention
-
Supports IONet Ethernet communication for controller networking
-
Enables Ethernet packet snooping for precision time synchronization
-
PCI interface supports both 3.3 V and 5 V signaling standards
-
Compact 240 × 160 × 30 mm footprint for easy integration
-
Lightweight 0.3 kg design simplifies installation and handling
