Description
Product Overview
The IS200IGPAG2AED Gate Drive Power Supply Board from General Electric belongs to the Mark VIe Series. This compact PCB weighs 0.22 kg and measures 2.1 x 18.6 x 26.3 cm, offering reliable integration into turbine excitation systems. Engineers value its dual-sided design, efficient thermal management, and durable construction for demanding industrial environments.
Technical Specifications
| Parameter |
Value |
| Model Number |
IS200IGPAG2AED |
| Module Type |
Gate Drive Power Supply Board |
| Manufacturer |
GE |
| Product Range |
Mark VIe |
| Condition |
Brand New |
| Weight |
0.22 kg |
| Dimensions |
2.1 x 18.6 x 26.3 cm |
| HS Code |
8537101190 |
| Minimum Order Quantity |
1 |
| Origin |
USA |
| System |
DCS |
| Status |
Active |
| Communication Service |
Ethernet router |
| Connectors |
9-pin vertical header, drilled terminals |
| LED Indicators |
Green and amber, mirrored on both sides |
| Capacitors |
Electrolytic, ceramic, polyester vinyl |
| Heat Sinks |
Six, aligned in two rows |
| Resistors |
Metal film type |
| Inductor Coil |
Present |
| Integrated Circuits |
Limited for streamlined design |
Functional Description

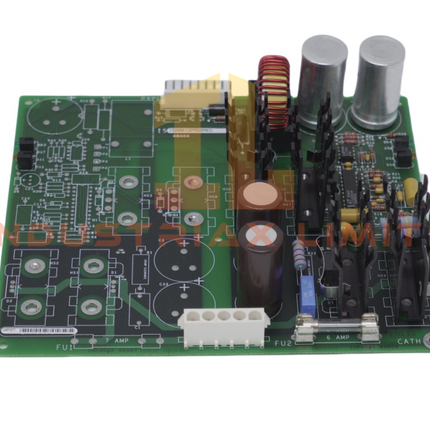

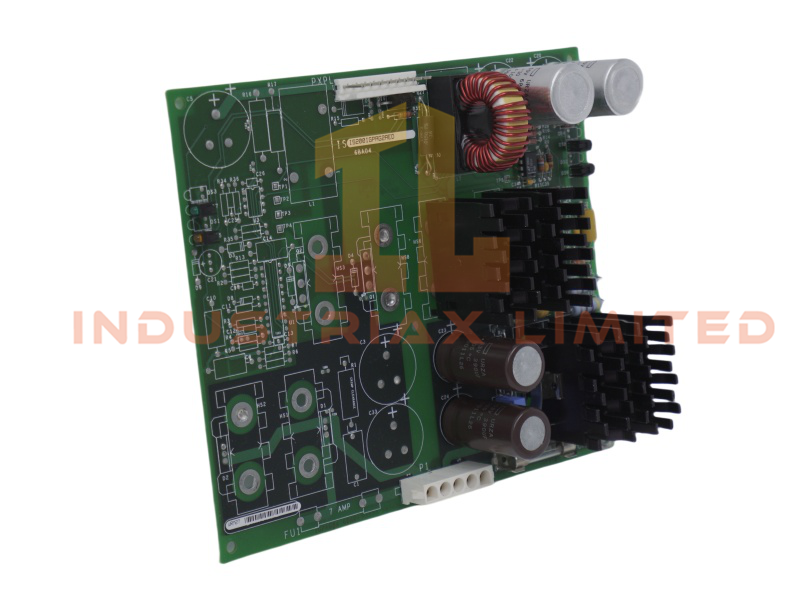

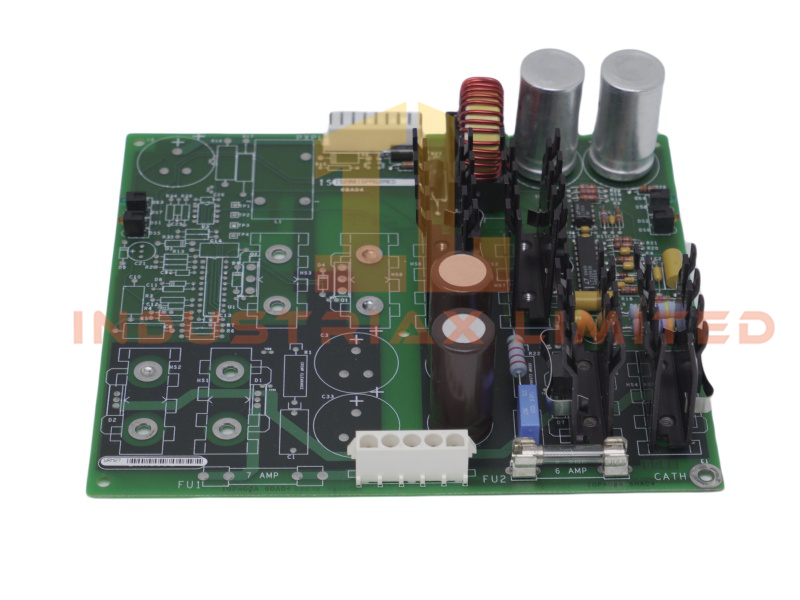

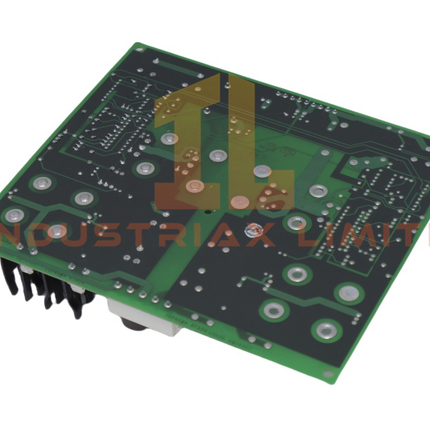

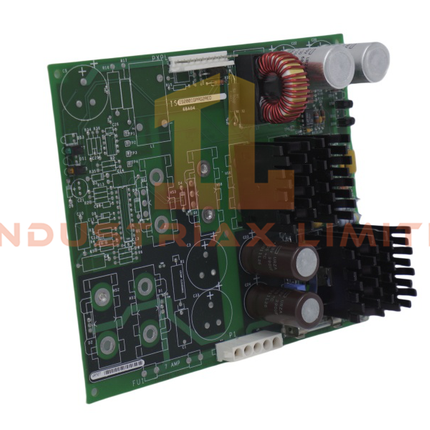

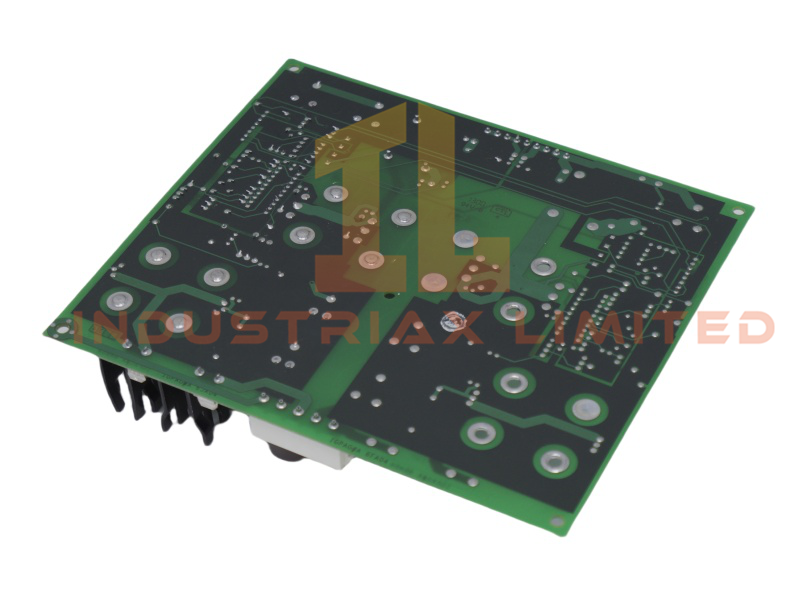

The IS200IGPAG2AED board features two distinct sides. One side remains mostly bare, containing a 9-pin vertical male header, drilled terminal connectors, and dual LED indicators for clear operational signaling. The opposite side is densely populated with components, including an inductor coil, four electrolytic capacitors, multiple ceramic capacitors, and polyester vinyl capacitors.
Six heat sinks arranged in two rows enhance thermal management, while durable metal film resistors ensure stability. Engineers benefit from its streamlined design, which uses only a few integrated circuits, making it efficient yet reliable. The IS200IGPAG2AED follows Mark VIe assembly standards, ensuring compatibility and long-term performance.
Applications and Compatibility
The IS200IGPAG2AED Gate Drive Power Supply Board suits turbine excitation systems, industrial automation, and heavy-duty power control environments. It integrates seamlessly with GE Speedtronic EX2100 and Mark VIe assemblies, ensuring compatibility across diverse industrial setups. Engineers deploy it in power generation plants, heavy industry, and automation networks where efficient power supply and thermal management are critical.
