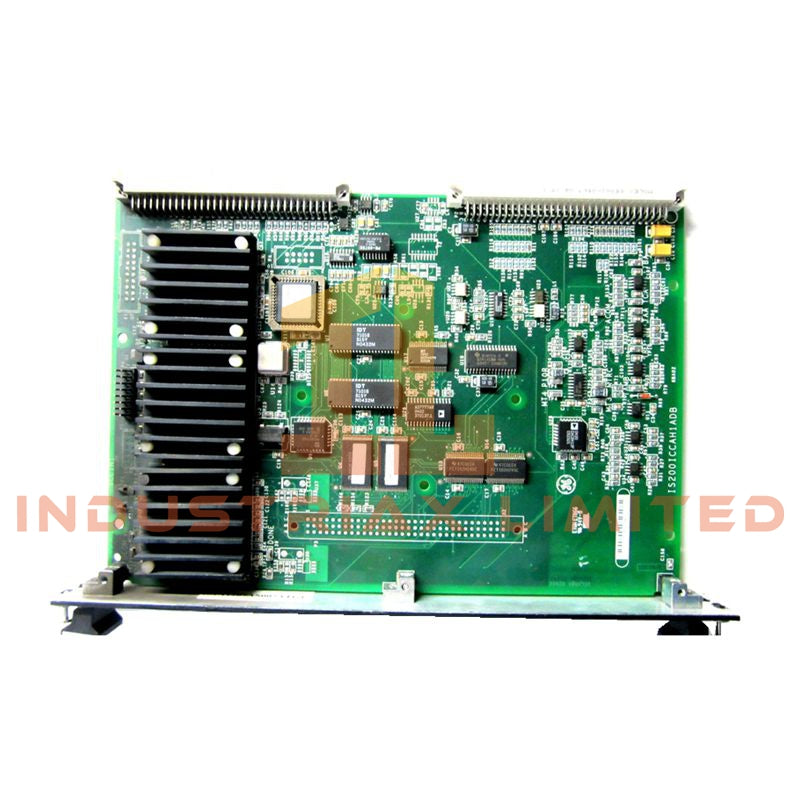

GE IS200ICCAH1ADB Innovation Drive Control Board
Configured for real-time signal conditioning and communication processing in GE Mark VI / Mark VIe Speedtronic turbine control platforms, the GE IS200ICCAH1ADB (IS200ICCAH1 Innovation Drive Control Board) provides direct physical/electrical execution for sensor and actuator interfacing through DSP processing, configurable I/O channels, and controller communication links.
Hardware Specifications
Parameter
Specification
Model
IS200ICCAH1ADB
Brand
GE
Origin
United States
Weight
0.45 kg
Dimensions
170 x 140 mm
Operating Temp
-20 deg C to +60 deg C
Power Consumption
30 W
Series
Mark VI / Mark VIe Speedtronic Turbine Control System
Hardware Type
Innovation Drive Control Board / I/O Control & Communication Adapter
Processor
TMS320C32 DSP, 200 MHz
Memory
128 MB RAM, 64 MB Flash
I/O Channels
16 configurable channels: 8 analog inputs, 8 digital I/O
Communication Protocols
GE COREBUS, Ethernet/IP 100 Mbps, Modbus RTU 115.2 kbps
Industrial Control Network Communication and DSP Processing
The IS200ICCAH1ADB uses a TMS320C32 DSP processor for digital signal filtering and deterministic control data handling within GE Mark VI / Mark VIe architectures. The board manages field signal conversion, conditioning, and communication exchange between connected sensors, actuators, and controller hardware.
The module supports GE COREBUS communication and external interfaces including Ethernet/IP and Modbus RTU. These communication paths provide structured data transfer between the I/O subsystem and higher-level control components.
The board supports industrial control network integration through defined backplane connections and configurable I/O density scaling. Firmware flash compatibility is maintained through the installed hardware revision and controller configuration requirements.
Frequently Asked Questions
Q: What processor architecture is used on the IS200ICCAH1ADB? A: The module uses a TMS320C32 DSP processor operating at 200 MHz for digital signal filtering and control data processing.
Q: What communication protocols are supported by this control board? A: The board supports GE COREBUS, Ethernet/IP at 100 Mbps, and Modbus RTU at 115.2 kbps.
Q: What I/O configuration is available on the IS200ICCAH1ADB? A: The board provides 16 configurable I/O channels consisting of 8 analog inputs and 8 digital I/O channels.
Field Installation Guidelines
Install the IS200ICCAH1ADB according to the GE Mark VI / Mark VIe rack configuration documentation. Verify the P1 and P2 backplane connectors are correctly aligned before insertion into the rack assembly.
Connect field signal wiring to the designated P3-P7 interfaces according to the system wiring diagrams. Maintain separation between low-level signal cables and high-current switching conductors to reduce electromagnetic interference.
Use appropriate shielded cables for communication and analog signal connections. Ground cable shields according to cabinet grounding practices and avoid multiple unintended grounding points.
Before energizing the module, verify power supply polarity, rack addressing, communication configuration, and firmware compatibility with the installed controller hardware.
