Description

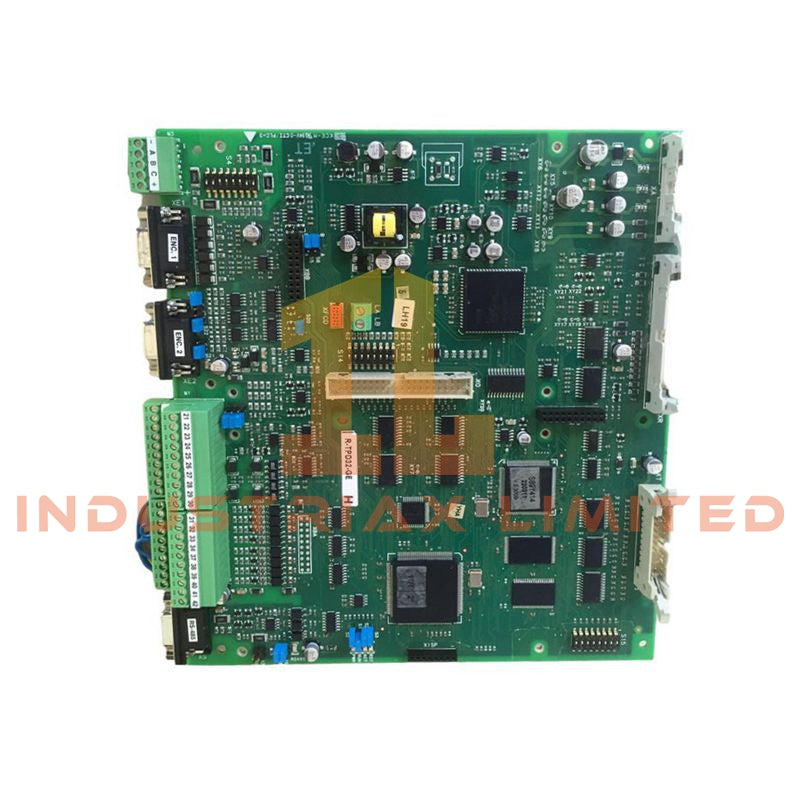

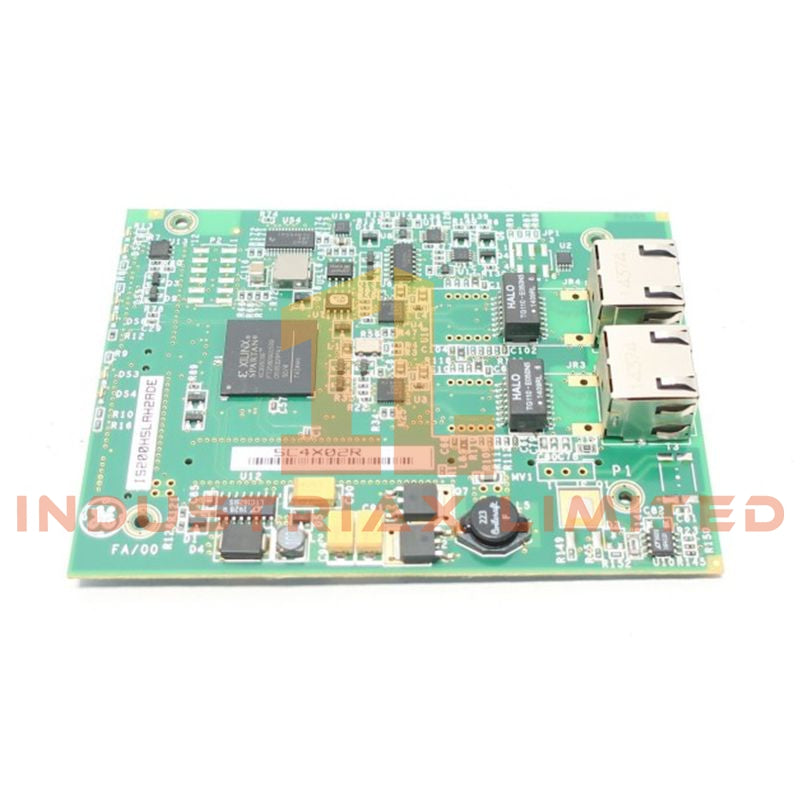

GE IS200HSLAH1A High-Speed Serial Link Adapter Module

Configured for deterministic fiber-optic communication in the GE EX2100e and Mark VIe Excitation Control Systems, the GE IS200HSLAH1A (IS200HSLA High-Speed Serial Link Adapter Module) provides direct optical data transfer between controller assemblies and exciter rack interface boards through HSSL communication links.

Hardware Specifications

Parameter	Specification
Model	IS200HSLAH1A
Brand	GE Industrial Systems
Origin	USA
Weight	0.45 kg
Dimensions	76 mm x 114 mm x 5 mm
Operating Temp	-40 to +85 deg C
Power Consumption	Less than 5 W
Product Type	High-Speed Serial Link Adapter Modules
Series	EX2100e / Mark VIe Excitation Control System
Abbreviation	C Core HSLA
Core Technology	FPGA-based communication logic
Communication Interface	IEEE 802.3u 100Base-FX Fast Ethernet Optical
Fiber Interface	LC Duplex multimode fiber
Data Transfer Rate	100 Mbps full duplex
Number of Ports	1 Ethernet HSSL port, 3 rear MVRC ports
Input Voltage	28 VDC nominal (24-32 VDC range)
Isolation Rating	2500 VDC port-to-port/backplane
Cable Type	Yellow HSSL fiber cable
Mounting Location	ESYS and ERAX boards

FPGA-Based Optical Communication Interface

The IS200HSLAH1A uses FPGA-based communication logic to process high-speed serial link traffic between EX2100e controller assemblies and exciter rack boards. The optical interface uses 100Base-FX communication with LC duplex multimode fiber connections to maintain deterministic signal transmission and reduce electromagnetic interference coupling.

For GE industrial control platforms, the HSLA module supports deterministic network operation through controlled optical communication paths. The hardware architecture incorporates fiber isolation, firmware-based communication handling, and compatibility with distributed control configurations requiring fixed communication timing.

The module supports GE EX2100e and Mark VIe system architectures where HSSL cable connections interface with ESYS and ERAX boards. The optical link structure separates control logic from field-side electrical noise sources while maintaining data exchange between system components.

Frequently Asked Questions

Q: What type of communication interface is used by the IS200HSLAH1A?
A: The module uses IEEE 802.3u 100Base-FX optical communication through LC duplex multimode fiber connections.

Q: Does the IS200HSLAH1A require copper communication wiring?
A: No. The HSLA module uses fiber-optic HSSL communication cabling for signal transfer between connected GE control system assemblies.

Q: What is the isolation capability of the IS200HSLAH1A?
A: The module provides 2500 VDC isolation between designated communication ports and backplane interface circuits.

Field Installation Guidelines

Install the IS200HSLAH1A vertically in the designated EX2100e cabinet location and secure the module according to the chassis mounting procedure. Verify alignment with the controller rack interface before applying power.

Use the specified HSSL fiber cable for optical connections and maintain proper fiber bend radius during cable routing. Keep fiber communication cables separated from high-current power conductors and avoid mechanical stress on LC connectors.

Confirm that the connected ESYS and ERAX boards are correctly identified before system startup. Optical connector surfaces should be inspected for contamination, and grounding practices should follow the cabinet installation requirements for the EX2100e control system.

Specifications

• Brand: General Electric

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
