Description

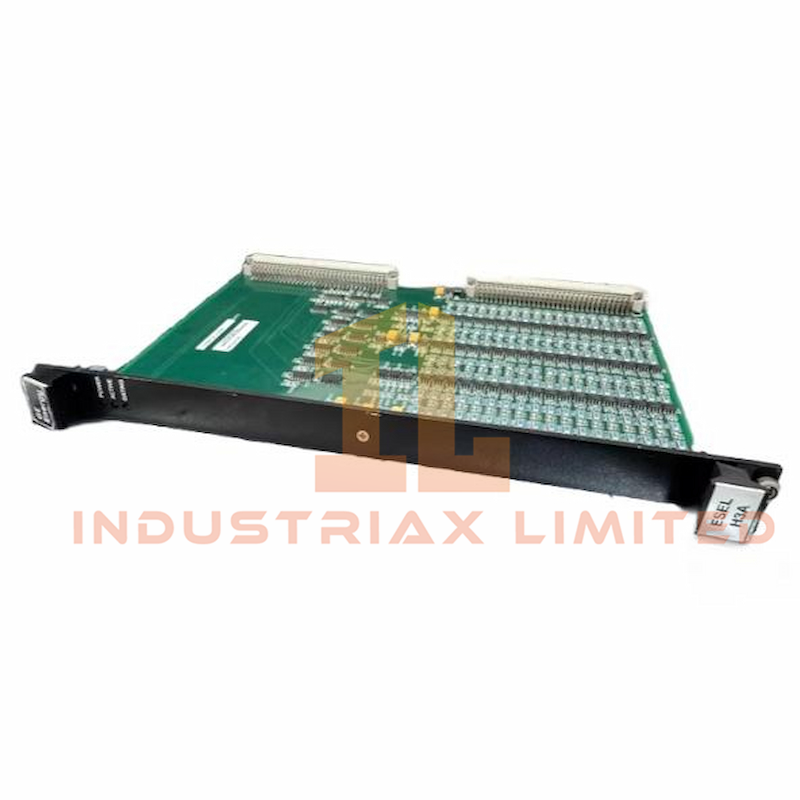

The GE IS200ESELH3A Exciter Selector Board is a critical signal distribution module within the EX2100 excitation system. Mounted in the control rack, it receives six logic-level gate pulse signals from the EMIO master I/O board and routes them to six EGPA gate pulse amplifier boards located in the Power Conversion Cabinet. This board ensures precise gating control for exciter operation, with no jumpers or testpoints required for configuration.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
GE |
| Series |
EX2100 excitation system |
| Part Number |
IS200ESELH3A |
| Description |
Exciter Selector Board |
| Input Voltage |
24 Vdc |
| Current |
1 A |
| Dimensions |
240 mm × 160 mm × 30 mm |
| Weight |
0.5 kg |
| Signal Inputs |
6 logic-level gate pulses from EMIO |
| Signal Outputs |
6 cable sets to EGPA boards |
| Backplane Interface |
VME via P1 and P2 connectors |
| Status Conditions |
Power on, board enabled, gating active |
Key Features
-
Routes six gate pulse signals from EMIO to EGPA amplifier boards
-
Interfaces with VME backplane via P1 and P2 connectors
-
No jumpers or testpoints required for setup or diagnostics
-
Operates under control signal from Control C for gating enablement
-
Compact 240 × 160 × 30 mm footprint for efficient rack integration
-
Lightweight 0.5 kg design simplifies handling and installation
-
Integral to exciter gating logic in EX2100 excitation systems
