Description

Overview

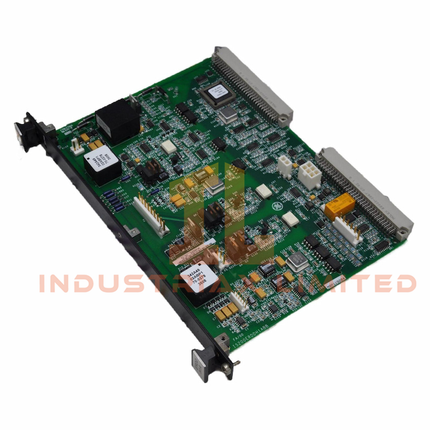

The IS200ERDDH1A IGBT Exciter Regulator Interface and Dynamic Discharge Board from GE’s EX2100 series delivers precise control and protection for exciter systems. It manages gate drive signals, monitors bridge feedback, and regulates dynamic discharge to prevent excessive DC link voltage.

Technical Specifications

Specification	Detail
Manufacturer	GE
Model Number	IS200ERDDH1A
Product Series	EX2100 Regulator Control
Function	Exciter interface and discharge control
Voltage	24 Vdc
Current	1 A
Dimensions	18 cm × 16 cm × 3 cm
Weight	1 kg
Relay Control	K3 (charging), K41 (output contactor)
Feedback Monitoring	Voltage, current, temperature, gate status
Application Modes	Simplex and redundant

Specifications

• Dimensions: 18 cm × 16 cm × 3 cm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
