Description

Overview

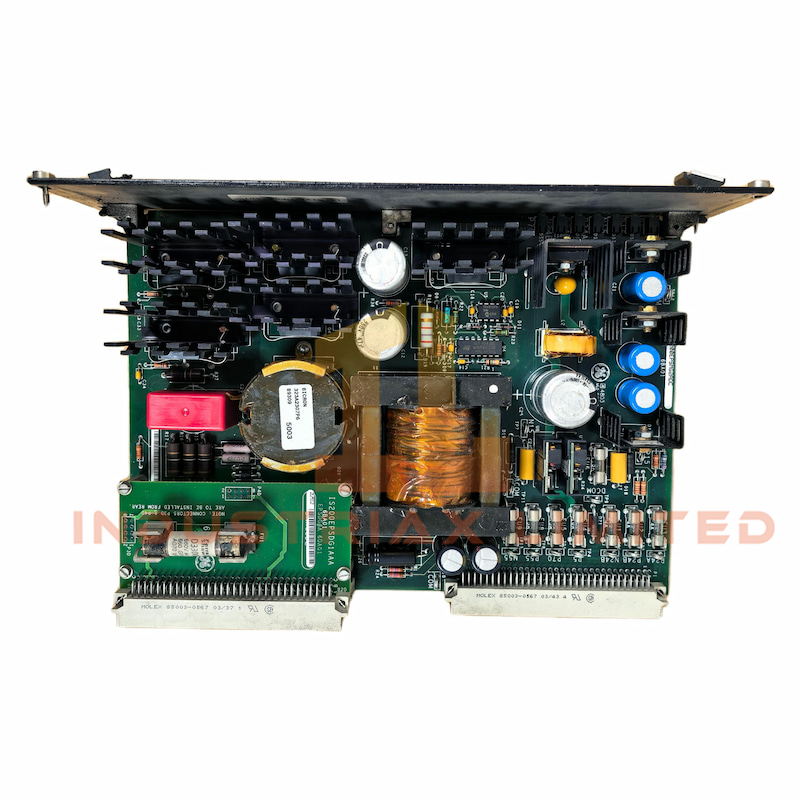

The IS200EPSMG2A Exciter Power Supply Module from GE’s EX2100 regulator control system delivers regulated multi-voltage outputs for both simplex and redundant configurations. It integrates a buck-regulator and a push-pull inverter to convert DC link voltage into isolated control voltages required by exciter systems.

Technical Specifications

Specification	Detail
Manufacturer	GE
Model Number	IS200EPSMG2A
Product Series	EX2100 Regulator Control System
Function	Exciter power conversion and distribution
Voltage Input	24 Vdc
Current	1 A
Dimensions	16 cm × 16 cm × 12 cm
Weight	1 kg
Internal Sections	Buck-regulator, Push-pull inverter
Daughterboard	IS200EPSDG1A
Output Voltages	+5 Vdc, ±15 Vdc, +24 Vdc
External Outputs	±24 Vdc, +70 Vdc, 20 Vac, ±55 Vdc
Isolation	High-voltage transformer isolation
Mounting Options	ERBP (M1), ERRB (M2/C)

Specifications

• Dimensions: 16 cm × 16 cm × 12 cm
• Brand: GE

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
