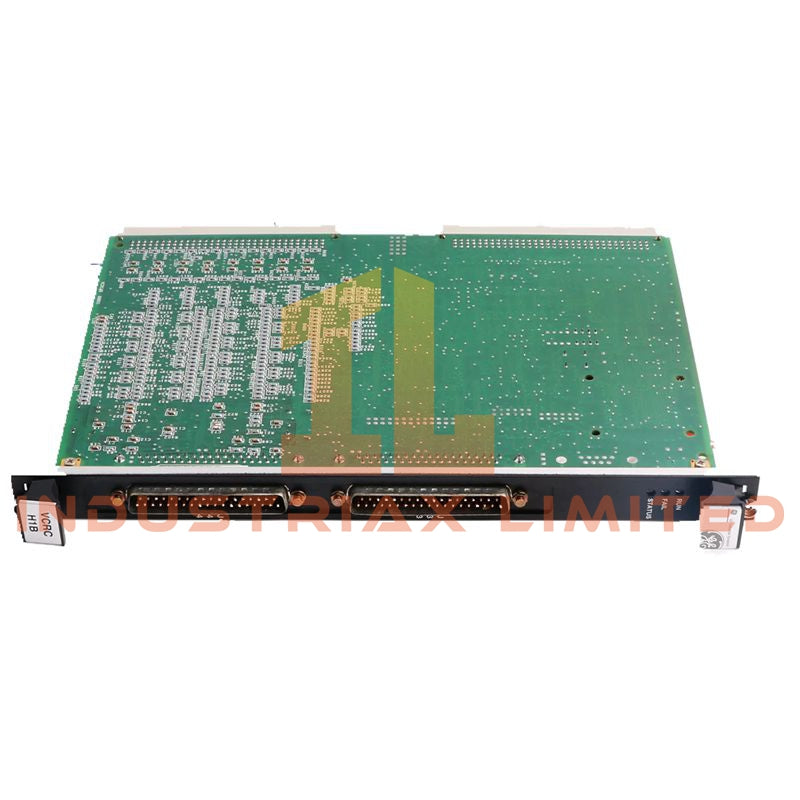

GE IS200EMIOH1AEB EX2000 EX2100 Exciter Main Input/Output Board
The GE IS200EMIOH1AEB, also cataloged as the IS200EMIOH1AEB Exciter Main Input/Output Board, operates as a dedicated hardware component for analog and digital signal processing within GE EX2000 and EX2100 excitation control systems. It manages PT/CT inputs, relay drivers, and gate pulse interface signals through the VME-style control rack.
The IS200EMIOH1AEB functions as an excitation control I/O interface board within GE EX2000 and EX2100 architectures. The board processes analog and digital signals between field terminal boards and the excitation controller, including PT/CT measurement inputs, contact signals, relay driver outputs, and gate pulse communication.
The module supports coordinated signal exchange with terminal assemblies including ECTB, EACF, EXTB, and EPCT boards. Gate pulse signals are transferred through the backplane interface to ESEL and EGPA boards for excitation switching control.
The board design uses surface-mount circuitry with conformal coating to reduce exposure effects from moisture, dust, and industrial contaminants. Its hardware interface supports deterministic backplane communication between excitation control modules.
Frequently Asked Questions
Q: What input signals can the IS200EMIOH1AEB process? A: The board processes PT/CT inputs, analog signals, digital contact inputs, relay driver signals, and gate pulse interface signals within EX2000 and EX2100 systems.
Q: What type of rack connection is used by this board? A: The IS200EMIOH1AEB uses a VME-style backplane connection in a single-slot, double-height rack configuration.
Q: What analog signal ranges are supported by the board? A: The board supports 4-20 mA analog input signals and 0-20 mA analog output current signals.
Field Installation Guidelines
Install the IS200EMIOH1AEB in the assigned GE EX2000 or EX2100 control rack slot and verify correct alignment with the VME-style backplane connector before energizing the system.
Inspect the board edge connector, rack guides, and terminal interfaces for contamination or mechanical damage during installation. Maintain proper cabinet grounding and follow excitation system wiring practices for signal reference connections.
Route analog signal cables separately from high-current excitation conductors to reduce electrical interference. Connect cable shields according to the cabinet grounding scheme and avoid unnecessary shield loops.
Before commissioning, verify I/O channel assignments, terminal board connections, LED status indicators, and compatibility between the board revision and installed excitation control configuration.
